Choose your product version
| Product description | Nominal wattage | Number of switching cycles | Beam angle | Luminous flux | Dimmable |
|---|---|---|---|---|---|
| LN INDV D 1500 25 W 3000 K TH | 25.00 W | 100000 | 70 ° | 3100 lm | No |
| LN INDV D 1500 25 W 4000 K TH | 25.00 W | 100000 | 70 ° | 3300 lm | No |
| LN INDV D 1200 34 W 3000 K TH | 34.00 W | 100000 | 70 ° | 3800 lm | No |
| LN INDV D 1200 34 W 4000 K TH | 34.00 W | 100000 | 70 ° | 4200 lm | No |
| LN INDV D 1500 48 W 3000 K TH | 48.00 W | 100000 | 70 ° | 5300 lm | No |
| LN INDV D 1500 48 W 4000 K TH | 48.00 W | 100000 | 70 ° | 5700 lm | No |
| Nominal wattage | 25.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 140 mA |
| Inrush current | 20 A |
| Inrush current time Th50 | 100 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 37 |
| Max. number of luminaires per miniature circuit breaker C10 | 30 |
| Max. number of luminaires per miniature circuit breaker C16 | 48 |
| Power factor λ | > 0.90 |
| Total harmonic distortion | ≤ 18 % |
| Protection class | I |
| Operating mode | Integrated LED driver |
| Luminous flux | 3100 lm |
| Luminous efficacy | 125 lm/W |
| Color temperature | 3000 K |
| Light color (designation) | Warm White |
| Color rendering index Ra | ≥80 |
| Standard deviation of color matching | 3 sdcm |
| Low flicker | Yes |
| Photobiological safety group acc. to EN62778 | RG1 |
| Photobiological safety group acc. to EN62471 | RG0 |
| Beam angle | 70 ° |

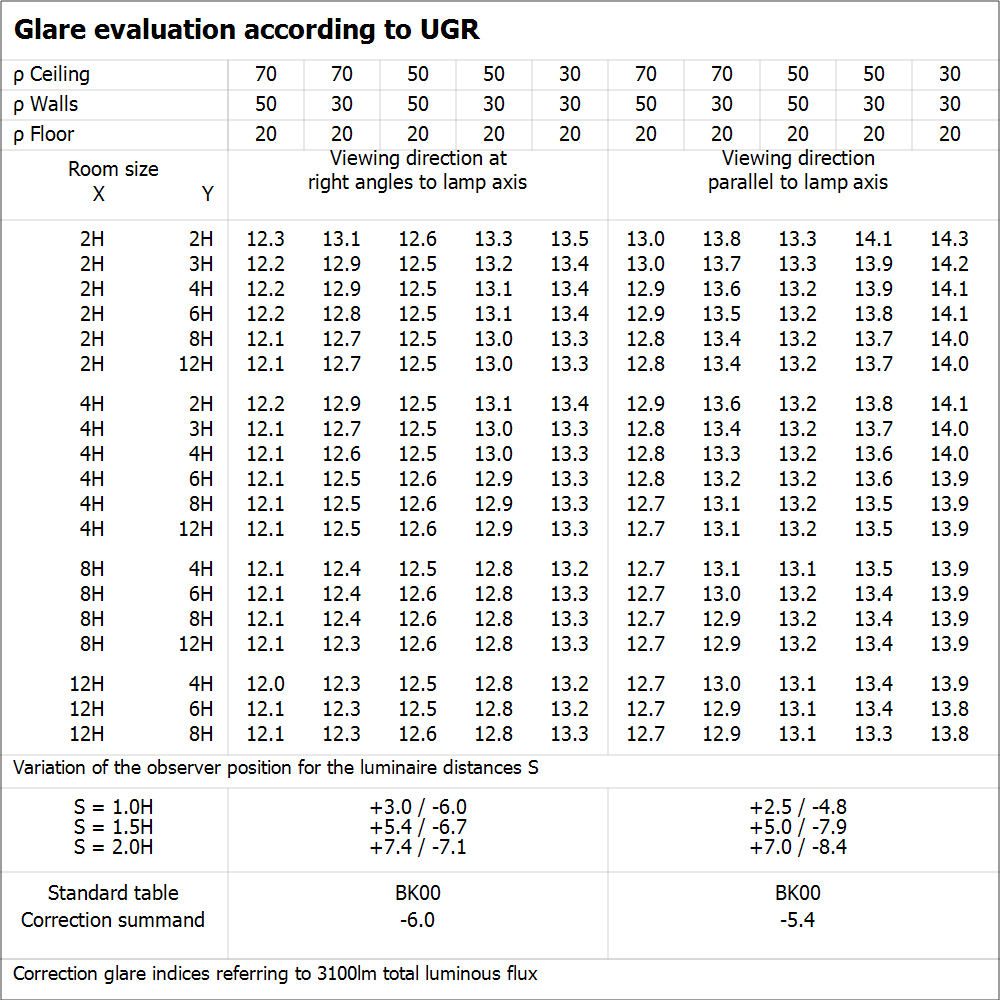

| UGR | < 16 |
| Length | 1488.00 mm |
| Height | 40.00 mm |
| Width | 120.00 mm |
| Product weight | 3130.00 g |
| Product color | White |
| Housing color | White |
| Body material | Aluminum |
| Cover material | Aluminum |
| Light emitting surface material | Polycarbonate (PC) |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
| Ambient temperature range | -20…+45 °C |
| Type of connection | Screwless terminal |
| Type of protection | IP20 |
| Protection class IK (shock resistance) | IK06 |
| Dimmable | No |
| Mounting type | Suspended/Surface |
| Mounting location | Ceiling |
| Application environment | Indoor |
| Replaceable light source | No |
| Lifespan L70/B50 at 25 °C | 60000 h 1) |
| Lifespan L80/B10 at 25 °C | 50000 h 1) |
| Lifespan L90/B10 at 25 °C | 35000 h |
| Number of switching cycles | 100000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

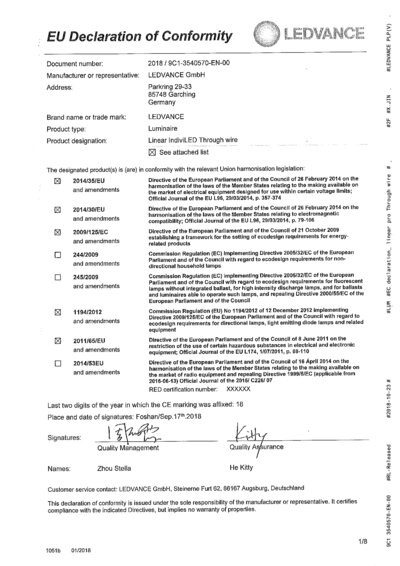

| Standards | CE, CB, TÜV SÜD, EAC, RoHS |
| Ball shot safe | No |
| Replaceable light source (EPREL) | Not replaceable |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075109124 | Folding box 1 |
132 mm x 1,624 mm x 52 mm | 3472.00 g | 11.15 dm³ |
| 4058075109131 | Shipping box 4 |
1,641 mm x 207 mm x 169 mm | 15018.00 g | 57.41 dm³ |
| EAN | SEG number | STK number | ELDAS number |
|---|---|---|---|
| 4058075109124 | 7016156 | 4231877 | 941300340 |
