LINEAR IndiviLED DIRECT DALI SENSOR

Choose your product version

1500 25 W 3000 K DALI

1500 25 W 4000 K DALI

1200 34 W 3000 K DALI

1200 34 W 4000 K DALI

1500 48 W 3000 K DALI

1500 48 W 4000 K DALI

OVERVIEW

Product description Nominal wattage Number of switching cycles Beam angle Luminous flux Dimmable
LN INDV D S 1500 25 W 3000 K DALI 25.00 W 100000 70 ° 3100 lm Yes
LN INDV D S 1500 25 W 4000 K DALI 25.00 W 100000 70 ° 3300 lm Yes
LN INDV D S 1200 34 W 3000 K DALI 34.00 W 100000 70 ° 3800 lm Yes
LN INDV D S 1200 34 W 4000 K DALI 34.00 W 100000 70 ° 4200 lm Yes
LN INDV D S 1500 48 W 3000 K DALI 48.00 W 100000 70 ° 5300 lm Yes
LN INDV D S 1500 48 W 4000 K DALI 48.00 W 100000 70 ° 5700 lm Yes


LN INDV D S 1500 25 W 3000 K DALI

Product benefits
  • Homogenous light distribution and reduced glare thanks to the IndiviLED® optics
  • Low flicker light thanks to special electronic control gear
  • Advanced functionality due to already included DALI driver
  • Multiple mounting options
  • Energy savings of up to 50 % compared to T5 batten luminaires
  • Further variants with emergency lighting function according to IEC 60598-2-22 or through wiring additionally available
  • Robust structure with IK06
  • 5 years guarantee
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 25.00 W
Nominal voltage 220…240 V
Mains frequency 0/50/60 Hz
Nominal current 140 mA
Inrush current 20 A
Inrush current time Th50 300 µs
Max. number of luminaires per miniature circuit breaker B16 11
Max. number of luminaires per miniature circuit breaker C10 11
Max. number of luminaires per miniature circuit breaker C16 18
Power factor λ > 0.90
Total harmonic distortion ≤ 18 %
Protection class I
Operating mode Integrated LED driver

Photometrical data

Luminous flux 3100 lm
Luminous efficacy 125 lm/W
Color temperature 3000 K
Light color (designation) Warm White
Color rendering index Ra ≥80
Standard deviation of color matching 3 sdcm
Low flicker Yes
Photobiological safety group acc. to EN62778 RG1
Photobiological safety group acc. to EN62471 RG0
Beam angle 70 °
UGR < 16

Dimensions & Weight

Length 1518.00 mm
Height 40.00 mm
Width 120.00 mm
Product weight 3100.00 g

Materials & Colors

Product color White
Housing color White
Body material Aluminum
Cover material Aluminum
Light emitting surface material Polycarbonate (PC)
Glow Wire Test according to IEC 60695-2-12 650 °C
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -20…+45 °C
Type of connection Screwless terminal, 5-Pole
Type of protection IP20
Protection class IK (shock resistance) IK06
Dimmable Yes
Type of dimming DALI
Mounting type Suspended/Surface
Mounting location Ceiling
Application environment Indoor
Replaceable light source No

Lifespan

Lifespan L70/B50 at 25 °C 60000 h 1)
Lifespan L80/B10 at 25 °C 50000 h 1)
Lifespan L90/B10 at 25 °C 35000 h
Number of switching cycles 100000

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Sensor

Type of sensor Motion, Light
Sensor technology Microwave
Sensor detection angle 110 °
Sensor controlled switching time 5 s/1 min/3 min/10 min
Detection range of motion sensor 8 m
Detection threshold of daylight sensor 25 lx
Sensor IP rating IP20

Certificates & Standards

Standards CE, CB, TÜV SÜD, EAC, RoHS
Ball shot safe No
Replaceable light source (EPREL) Not replaceable

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Homogenous light distribution and reduced glare thanks to the IndiviLED® optics
  • Low flicker light thanks to special electronic control gear
  • Advanced functionality due to already included DALI driver
  • Multiple mounting options
  • Energy savings of up to 50 % compared to T5 batten luminaires
  • Further variants with emergency lighting function according to IEC 60598-2-22 or through wiring additionally available
  • Robust structure with IK06
  • 5 years guarantee
Areas of application
  • Direct replacement for luminaires with fluorescent lamps
  • Offices, schools
  • General indoor illumination
  • Corridors, entrance areas
  • Seamless linear lighting
  • Shop lighting
Product features
  • Each LED with individual lens and reflector for UGR < 16 and homogenous light distribution
  • Motion sensor and ambient light dependend dimming function for maximized energy savings
  • Pre-configured DALI driver included
  • Pendant mounting with suspension kit
  • Linkable to an esthetic seamless light line with line connection adapter (surface or pendant mounting)
  • Available with length of 1200 or 1500 mm
  • Luminous flux up to 5700 lm
  • Luminous efficacy: up to 125 lm/W
  • Initial color consistency: < 4 SDCM
Equipment / Accessories
  • Ceiling connection box available
  • Suspension kit available
  • Line connection adapter available
  • Through-wiring cable kit available
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075109964 Folding box
1		 132 mm x 1,624 mm x 52 mm 3442.00 g 11.15 dm³
4058075109971 Shipping box
4		 1,641 mm x 207 mm x 169 mm 14898.00 g 57.41 dm³
User instruction / safety instructions

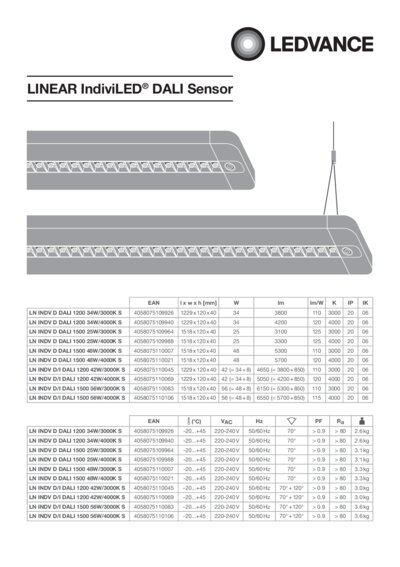

User Instruction Linea r IndiviLED DALI Senso r PDF (3.61 MB)
On-Pack-Info

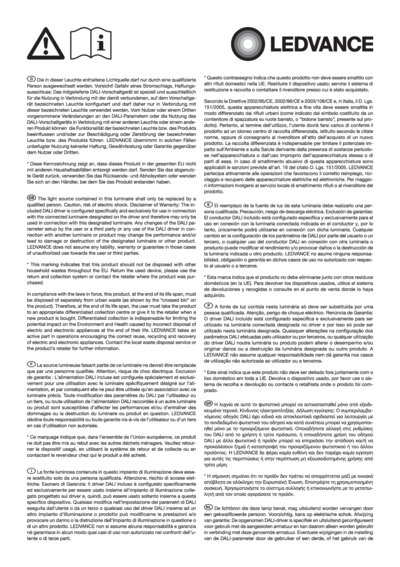

Legal Insert Linear LE D DALI PDF (5.38 MB)
Declarations of conformity

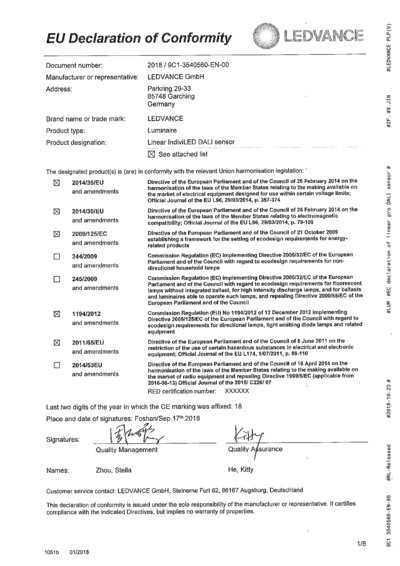

EU Declaration of Conf ormity Linear IndiviLE D DALI sensor LEDVANCE PDF (743.43 KB)

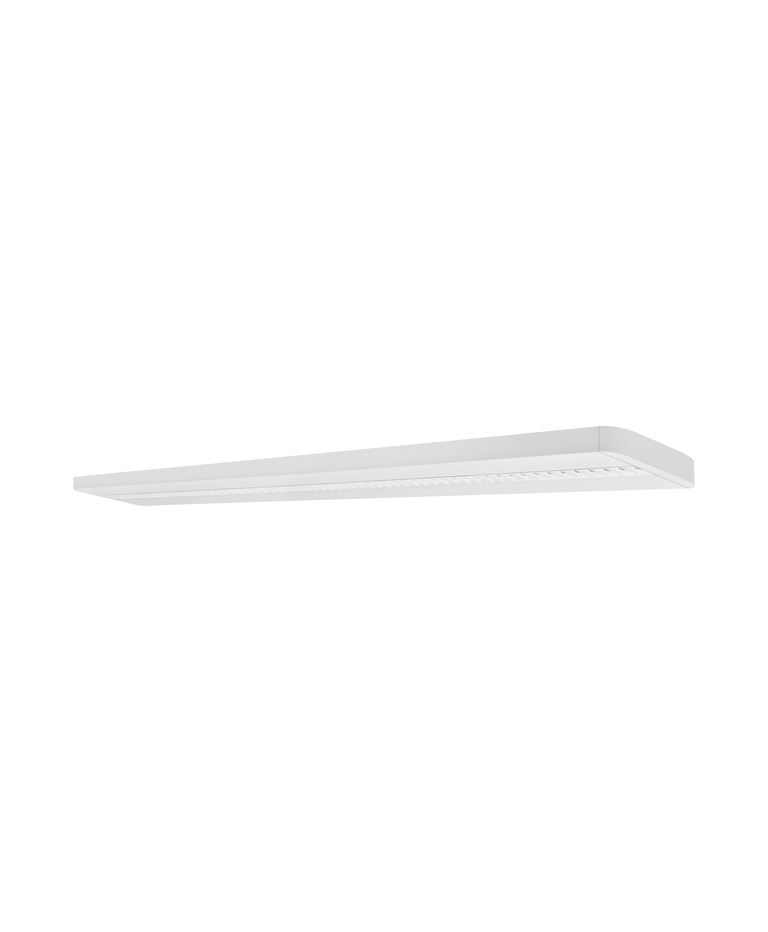

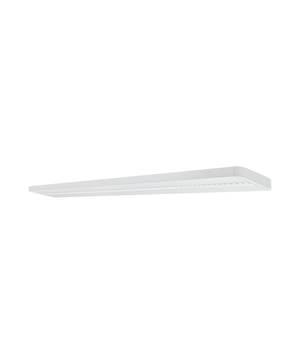

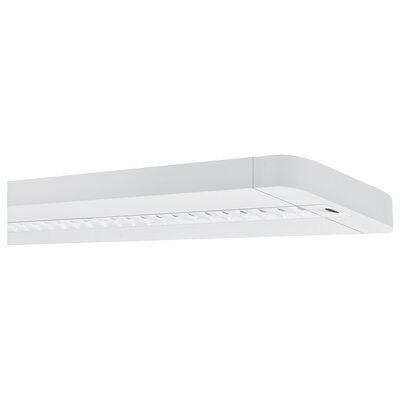

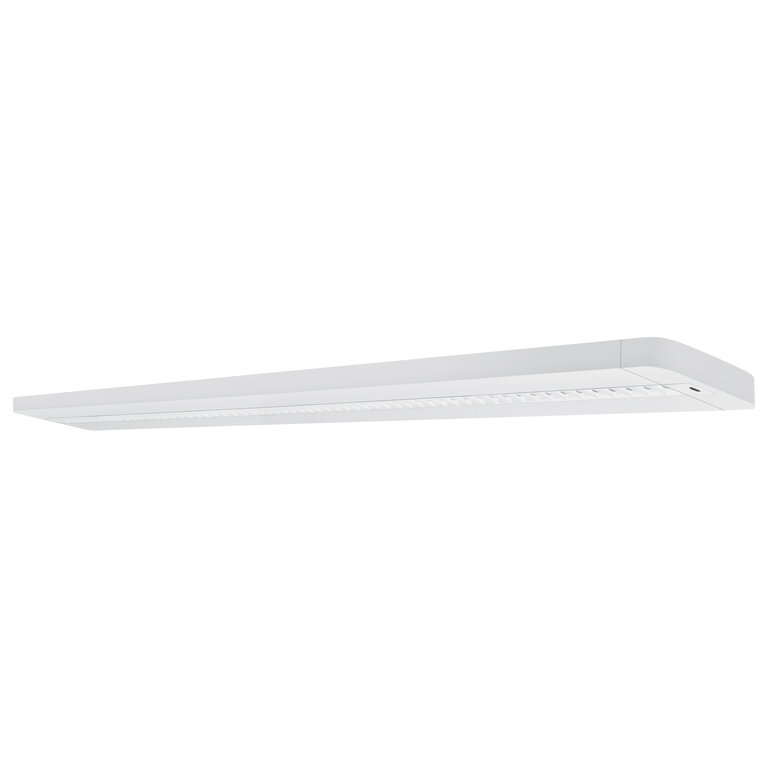

Product image: white background, diagonal
LINEAR INDIVI LED DIRE CT SENSOR 1500 JPG (422.13 KB)

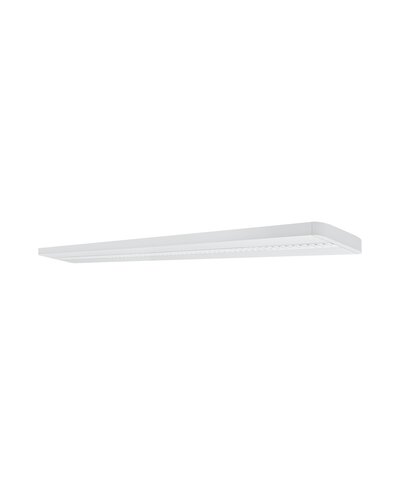

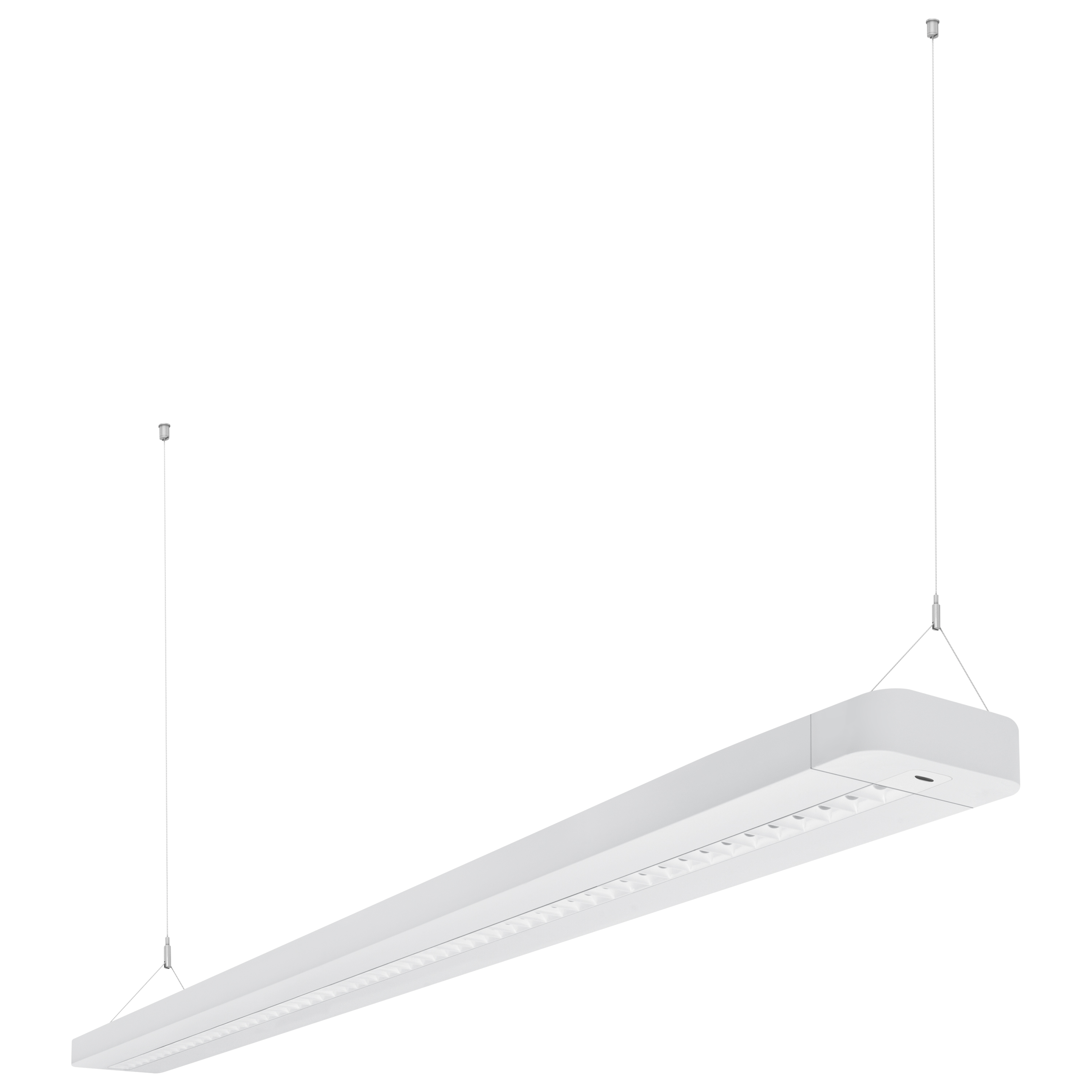

Product image: white background, diagonal
LINEAR INDIVI LED DIRE CT SENSOR 1500 JPG (313.89 KB)

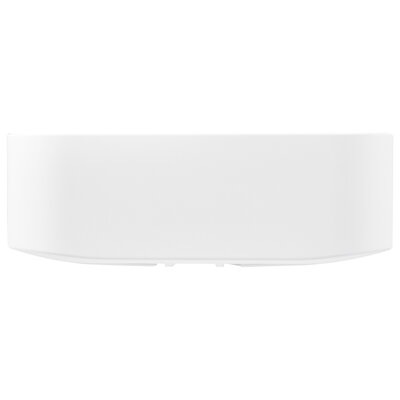

Product image: white background, horizontal
LINEAR INDIVI LED DIRE CT SENSOR 1500 JPG (238.27 KB)

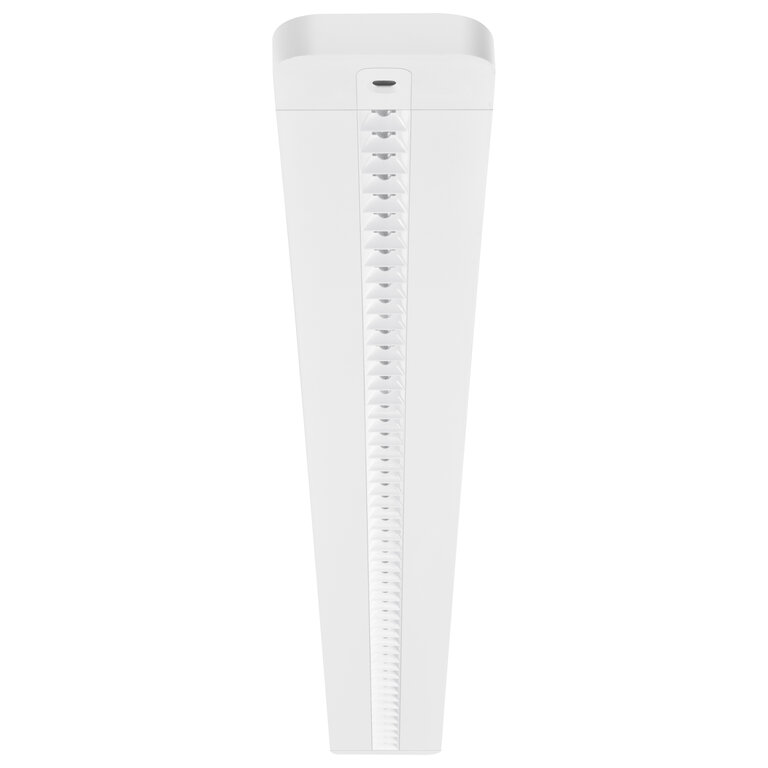

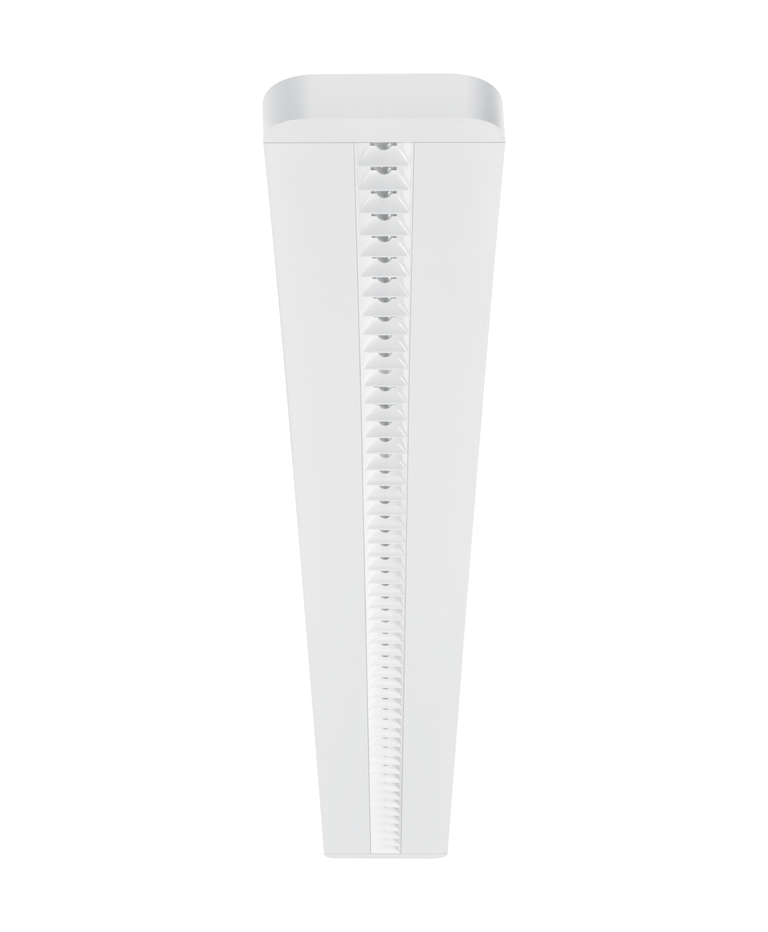

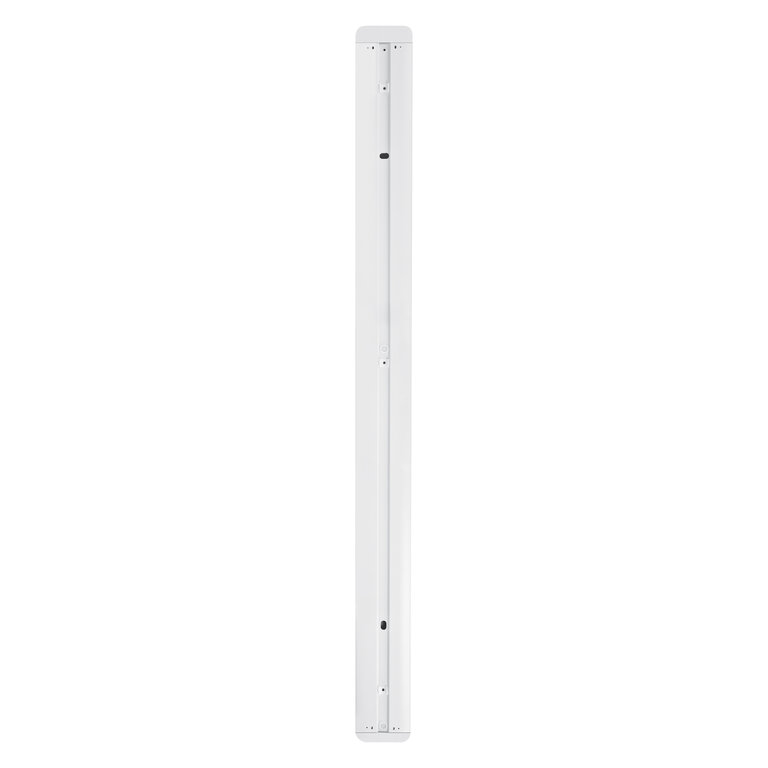

Product image: white background, upright
LINEAR INDIVILED DIREC T 1500 TIF (23.12 MB)
Product image: white background, upright
LINEAR INDIVI LED DIRE CT SENSOR 1500 JPG (506.93 KB)

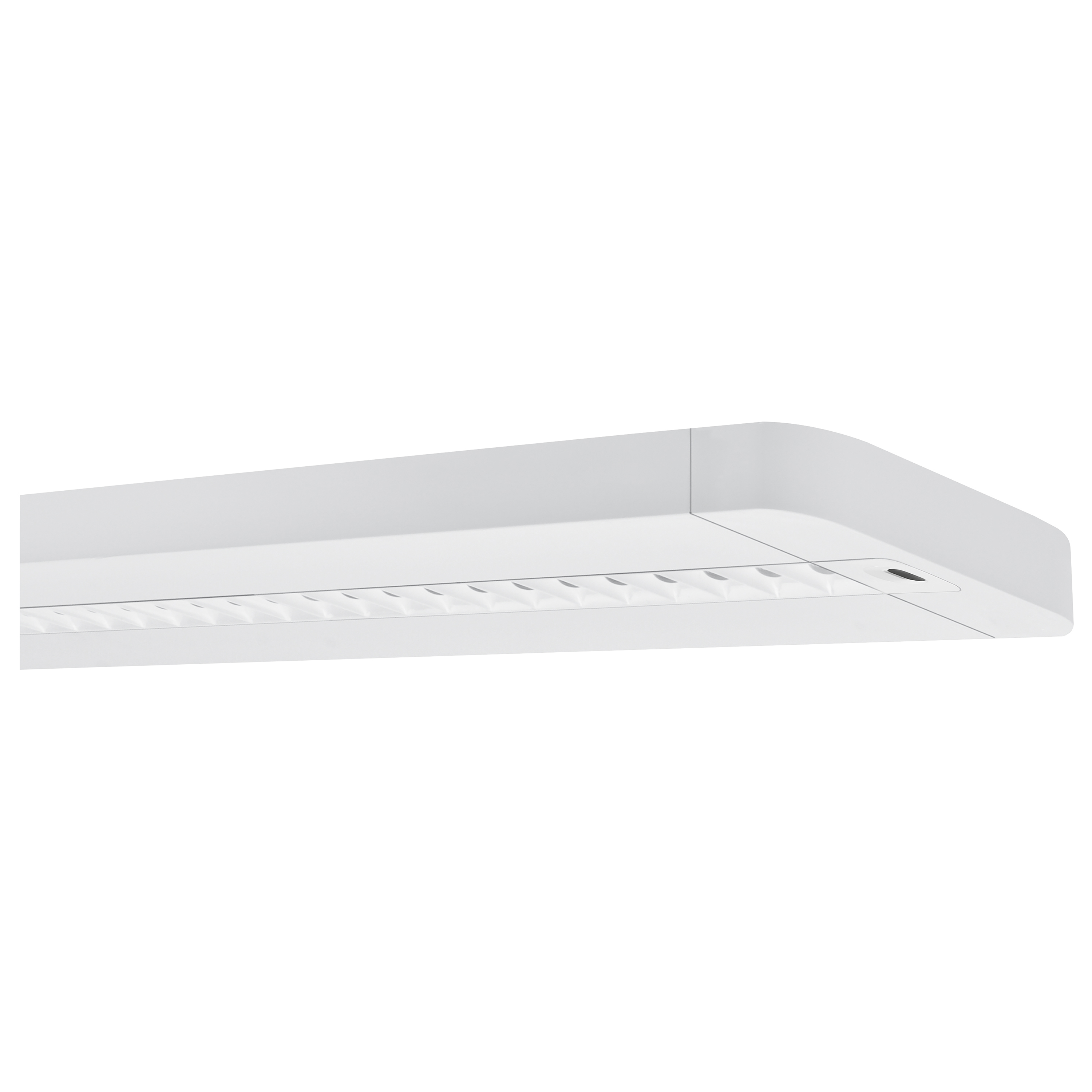

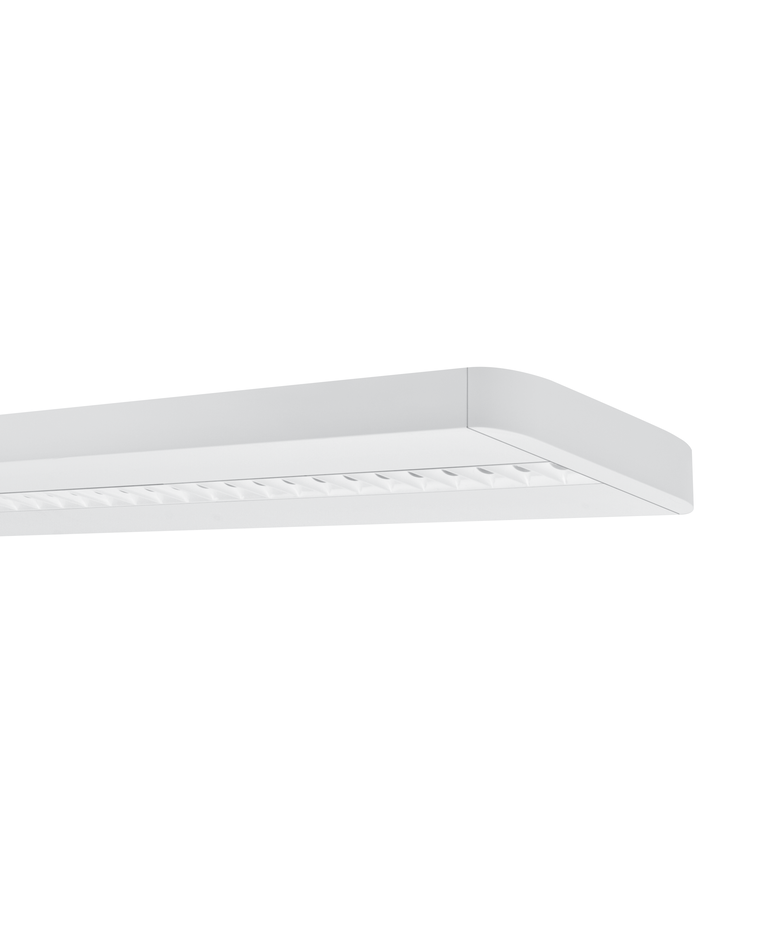

Product image: white background, spacial
LINEAR INDIVILED DIREC T 1500 TIF (46.38 MB)
Product line drawing with letters
LINEAR INDIVI LED DIRE CT SENSOR 1500 SVG (194.86 KB)
Product line drawing with letters
LINEAR INDIVILED DIREC T 1500 SVG (185.75 KB)
Product line drawing with numbers
LINEAR INDIVI LED DIRE CT SENSOR 1500 SVG (203.14 KB)
Product line drawing with numbers
LINEAR INDIVILED DIREC T 1500 SVG (194.4 KB)
Product line drawing - technical
LINEAR INDIVI LED DIRE CT SENSOR 1500 SVG (189.32 KB)
Product line drawing - technical
LINEAR INDIVILED DIREC T 1500 SVG (180.21 KB)
Catalog info 1
Linear IndiviLED DALI Sensor SVG (86.78 KB)
Catalog info 2
Linear IndiviLED DALI Sensor SVG (50.95 KB)
Catalog info 3
Linear IndiviLED DALI Sensor SVG (143.28 KB)
IES file (IES)
LN INDV D DALI 1500 25 W 3000K S IES (8.68 KB)
LDT file (Eulumdat)
LN INDV D DALI 1500 25 W 3000K S LDT (9.52 KB)
ULD file (DIALux)
LINEARIndiviLEDDIRECTD ALISENSOR150025W3000KS ULD (739.84 KB)

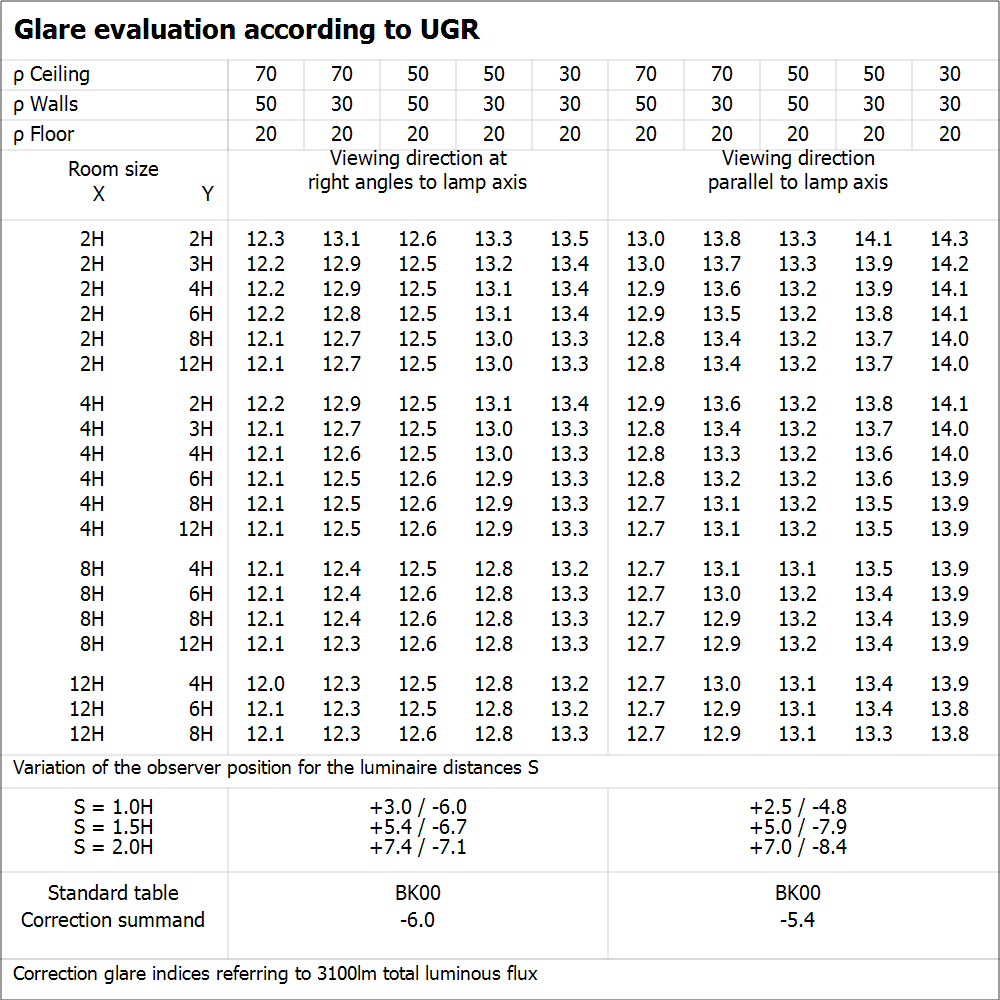

UGR file (UGR table)
LN INDV D DALI 1500 25 W 3000K S PNG (60.12 KB)
Light distribution curve type cone
LN INDV D DALI 1500 25 W 3000K S SVG (85.24 KB)
Light distribution curve type polar
LN INDV D DALI 1500 25 W 3000K S SVG (229.87 KB)
EAN SEG number STK number EFO number ELDAS number
4058075109964 7016148 4231878 3203396 941300650
