LINEAR INDIVILED DIRECT/INDIRECT 1500 PS

Choose your product version

1500 P 69W 930 PS BK

1500 P 69W 940 PS BK

OVERVIEW

Product description Nominal wattage Number of switching cycles Beam angle Luminous flux Dimmable
LN INV DI 1500 P 69W 930 PS BK 69 W / 63 W / 61 W / 53 W 25000 90 ° + 130 ° 6500 lm / 7450 lm / 7650 lm / 8200 lm No
LN INV DI 1500 P 69W 940 PS BK 69 W / 63 W / 61 W / 53 W 25000 90 ° + 130 ° 6950 lm / 8000 lm / 8200 lm / 8850 lm No


LN INV DI 1500 P 69W 930 PS BK

Product benefits
  • Easy upgradeability of light source and driver (EVERLOOP design)
  • Homogenous light distribution and reduced glare (UGR ≤ 19) thanks to IndiviLED® optics
  • Pendant luminaires with direct light emission (70%) and indirect light emission (30%)
  • High performance with CRI90 and up to 134 lm/W
  • Highly versatile due to selectable power steps (Power Select - PS) on the driver
  • High color consistency with SDCM 3
  • Easy installation
  • Low flicker light thanks to special electronic control gear
  • Multiple mounting options thanks to different accessories
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 69 W / 63 W / 61 W / 53 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 315…285…270…242 mA
Inrush current 23,6 A
Inrush current time Th50 176 µs
Max. number of luminaires per miniature circuit breaker B16 17
Max. number of luminaires per miniature circuit breaker C10 14
Max. number of luminaires per miniature circuit breaker C16 23
Power factor λ > 0.90
Total harmonic distortion ≤ 20 %
Protection class I
Operating mode Integrated LED driver

Photometrical data

Luminous flux 6500 lm / 7450 lm / 7650 lm / 8200 lm
Luminous efficacy 119 lm/W / 121 lm/W / 122 lm/W / 123 lm/W
Color temperature 3000 K
Light color (designation) Warm White
Color rendering index Ra > 90
Standard deviation of color matching 3 sdcm
Low flicker Yes
Flickering metric (Pst LM) ≤1
Stroboscope effect metric (SVM) ≤0.4
Photobiological safety group acc. to EN62778 RG0
Photobiological safety group acc. to EN62471 RG0
Beam angle 90 ° + 130 °
UGR < 19

Adjustable attributes

Nominal wattage Color temperature Luminous flux Luminous efficacy
69 W 3000 K 8200 lm 119 lm/W
63 W 3000 K 7650 lm 121 lm/W
61 W 3000 K 7450 lm 122 lm/W
53 W 3000 K 6500 lm 123 lm/W

Dimensions & Weight

Length 1475.00 mm
Height 43.00 mm
Width 125.00 mm
Product weight 4300.00 g

Materials & Colors

Product color Black
Housing color Black
Body material Aluminum
Cover material Polymethylmethacrylate (PMMA)
Light emitting surface material Polymethylmethacrylate (PMMA)
Glow Wire Test according to IEC 60695-2-12 850 °C
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -20…+50 °C
Temperature range at storage -20…+80 °C
Type of connection Screwless terminal, 5-Pole (L, N, PE, DA+, DA-)
Type of protection IP20
Protection class IK (shock resistance) IK06
Dimmable No
Mounting type Suspended
Mounting location Ceiling
Application environment Indoor
Adjustable No
With light source Yes
Replaceable light source No

Lifespan

Lifespan L70/B50 at 25 °C 100000 h 1)
Lifespan L80/B10 at 25 °C 70000 h 1)
Lifespan L90/B10 at 25 °C 35000 h
Number of switching cycles 25000

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Control gear

Output current 1050 mA
ECG - Output ripple current ≤ 5 %
Recommended control gear OSRAM type OT FIT 55/220–240/1A0 CS L AP& IT FIT 18/220…240/350 CS L

Certificates & Standards

Standards CE, CB, ENEC, TÜV SÜD, UKCA, EAC, EPD
Luminaire with limited surface temperature, "D sign" No
Ball shot safe No
EPD LEDV-00026-V01.01-EN
Replaceable light source (EPREL) By the end consumer

Additional product data

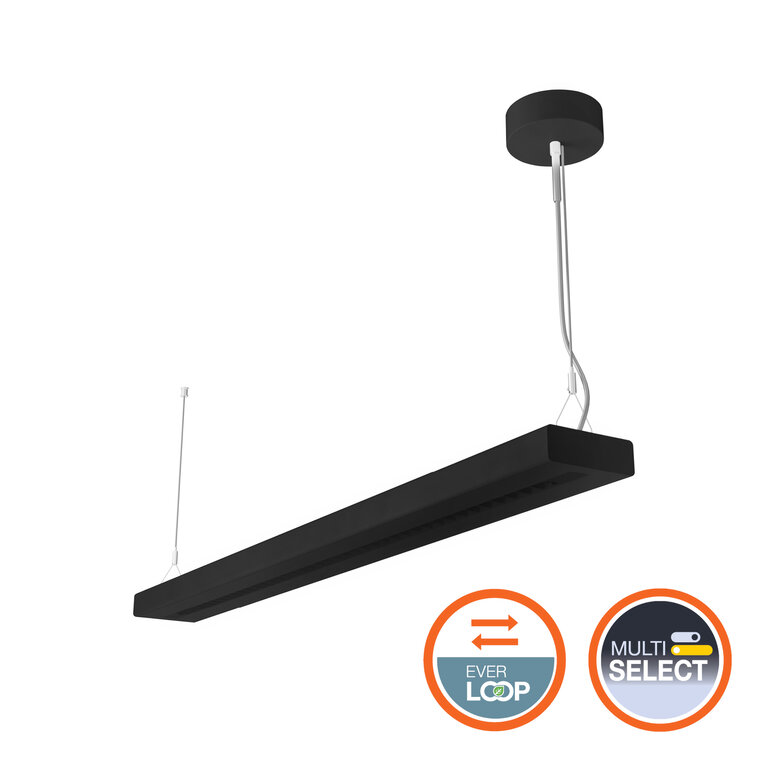

Added function EVERLOOP, MULTI SELECT

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1), N,N-Dimethylformamide (68-12-2)

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Easy upgradeability of light source and driver (EVERLOOP design)
  • Homogenous light distribution and reduced glare (UGR ≤ 19) thanks to IndiviLED® optics
  • Pendant luminaires with direct light emission (70%) and indirect light emission (30%)
  • High performance with CRI90 and up to 134 lm/W
  • Highly versatile due to selectable power steps (Power Select - PS) on the driver
  • High color consistency with SDCM 3
  • Easy installation
  • Low flicker light thanks to special electronic control gear
  • Multiple mounting options thanks to different accessories
Areas of application
  • Direct replacement for luminaires with fluorescent lamps
  • Offices, education, public buildings
  • Single and continuous line configuration
  • Direct and indirect lighting
Product features
  • Minimalistic LEDVANCE SCALE design in extruded aluminum housing, available in white and black color
  • Includes EVERLOOP: Convenient replacement of light source and LED driver
  • Linkable into seamless light line with accessories (surface or pendant mounting)
  • Pendant mounting with suspension kit (to be ordered separetely)
  • Glow Wire Test according to IEC 60695-2-12: 850 °C
  • 5-pole terminal block, cable cross section up to 5 x 2.5 mm²
  • Lifetime (L80/B10): 70,000 h (at 25 °C)

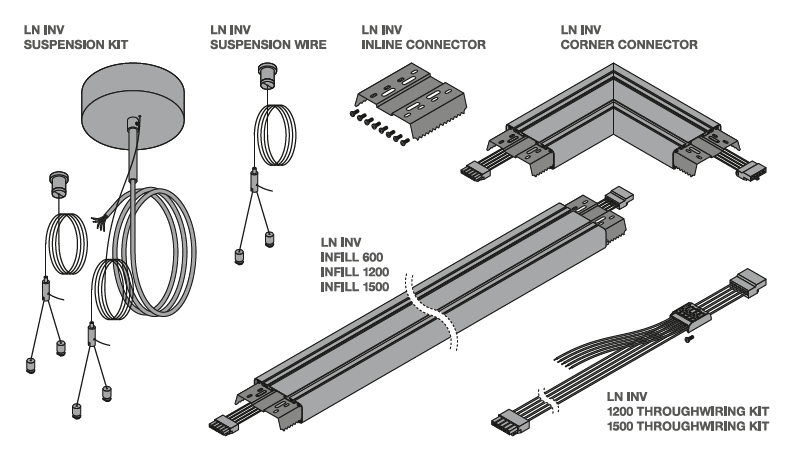

Equipment / Accessories
  • Suspension kit available for pendant luminaire version (to be ordered separately)
  • Inline, corner and infill connectors available as separate accessory
  • Through-wiring cable kit available
Safety advice
  • All electrical connections must be made by a qualified person.
  • If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively replaced by a qualified person in order to avoid a hazard.
  • Caution, risk of electric shock.
  • Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854296949 Folding box
1		 177 mm x 1,530 mm x 102 mm 5000.00 g 27.62 dm³
4099854296956 Shipping box
2		 1,550 mm x 197 mm x 224 mm 11600.00 g 68.40 dm³
Product image Product name EAN
LN INV SUSPENSION KIT BK 4099854297069
Product image Product name EAN
LN INV INFILL 600 BK 4099854297045
LN INV INFILL 1200 BK 4099854297007
LN INV INFILL 1500 BK 4099854297021

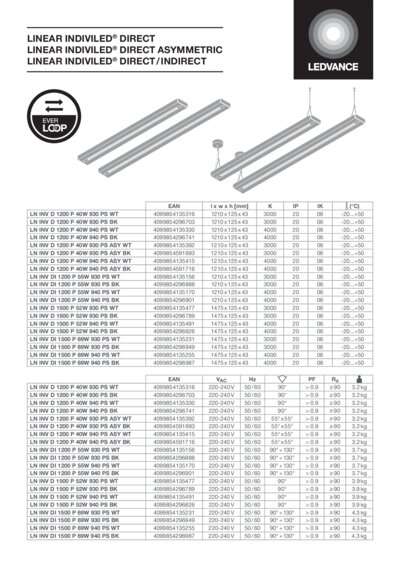

User instruction / safety instructions
LN INV PDF (4.71 MB)

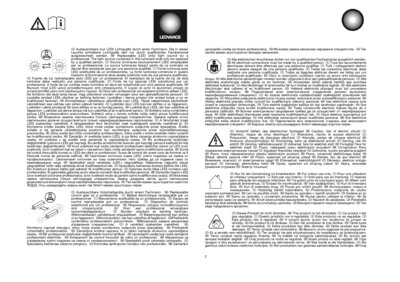

Legal information
Legal Insert LN INV P PS PDF (767.34 KB)

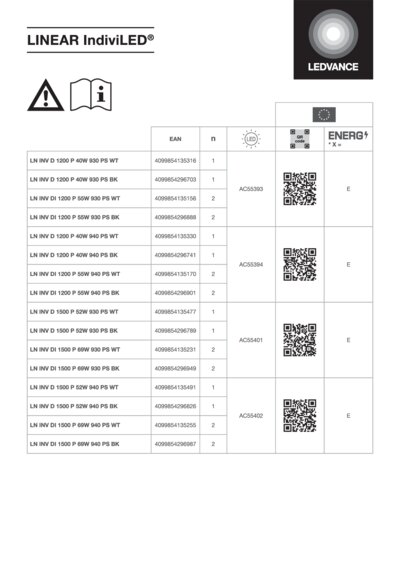

Legal information
LSI LN INDIVILED PDF (2.99 MB)

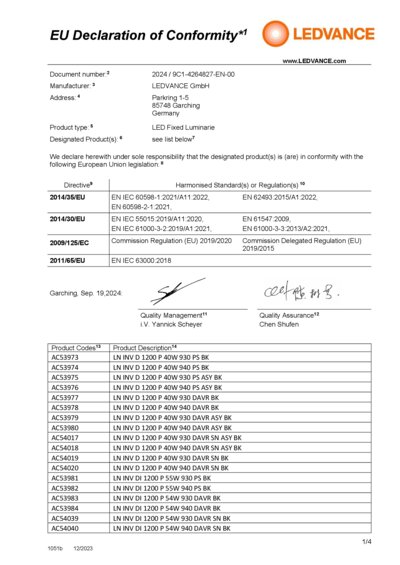

Declarations of conformity
LN INV PDF (298.65 KB)

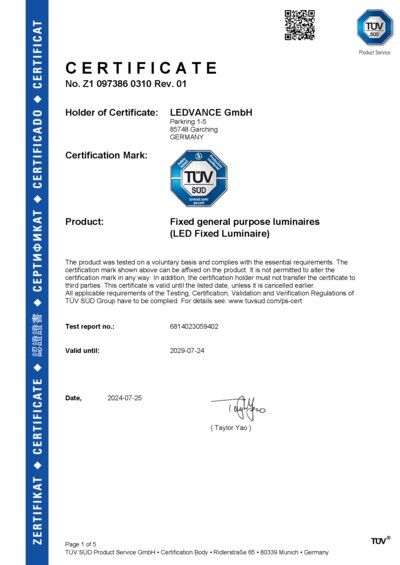

Certificates
LN INV PDF (343.84 KB)
EPD
EPD EN LINEAR INDIVILE D DIRECT INDIRECT PDF (643.54 KB)

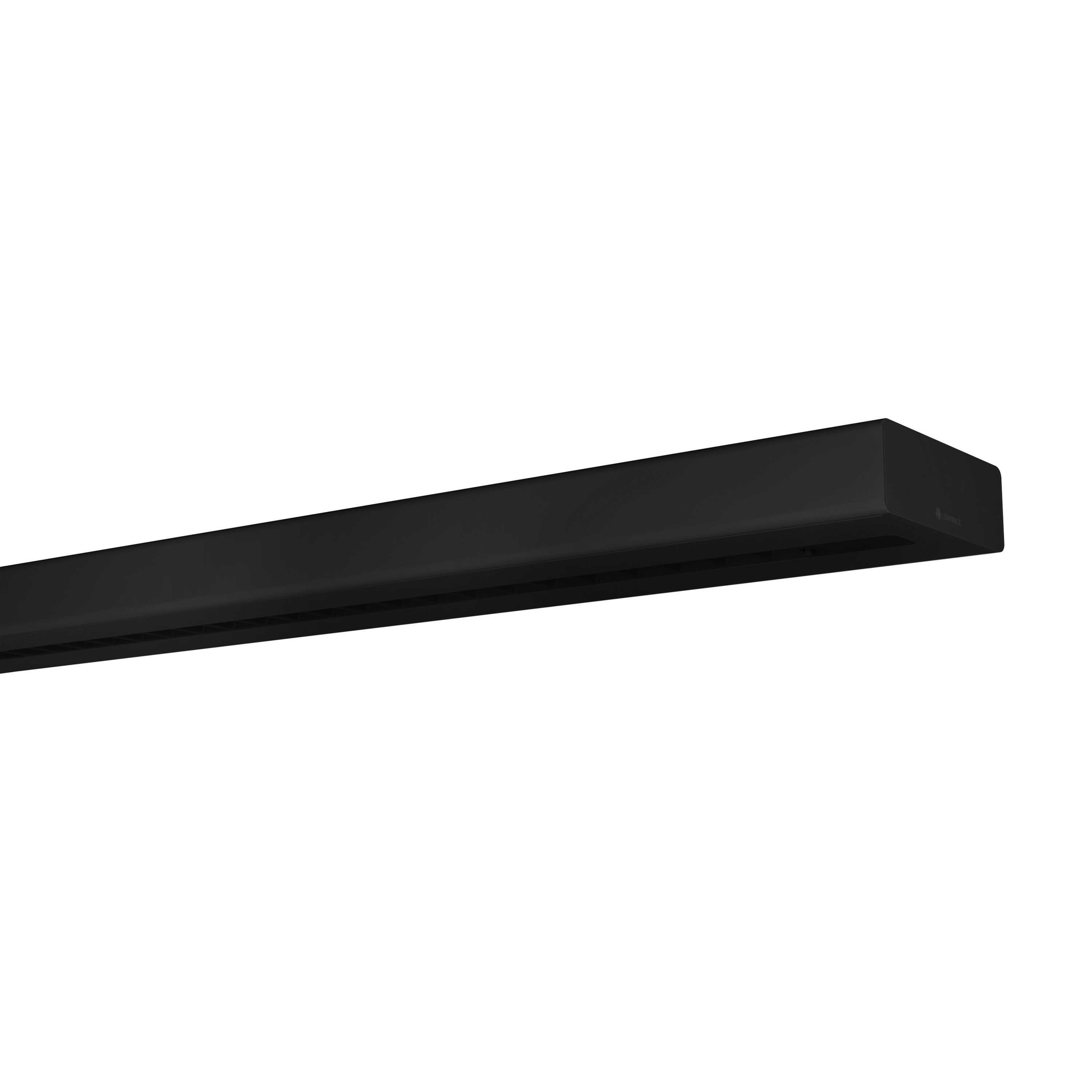

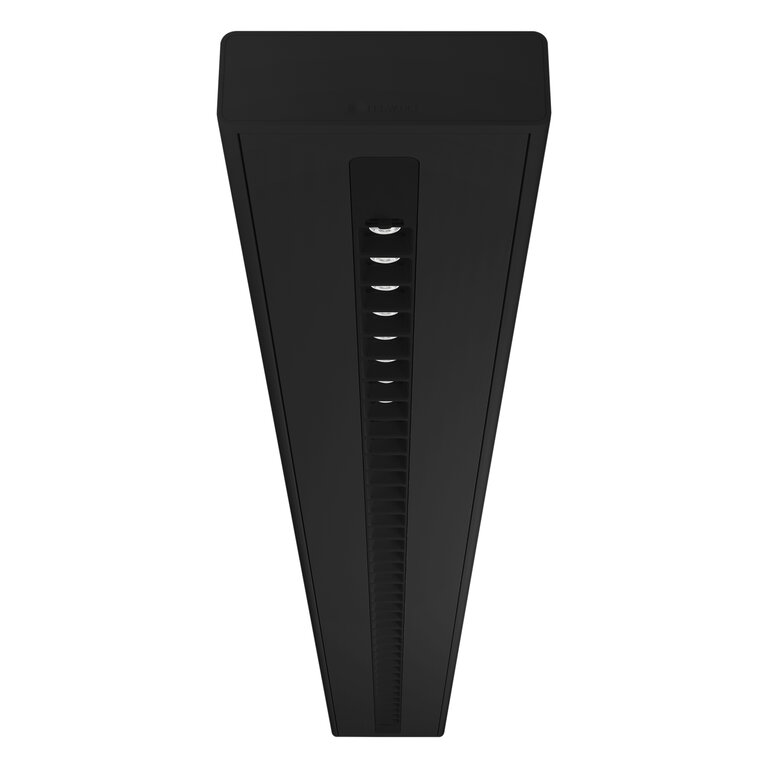

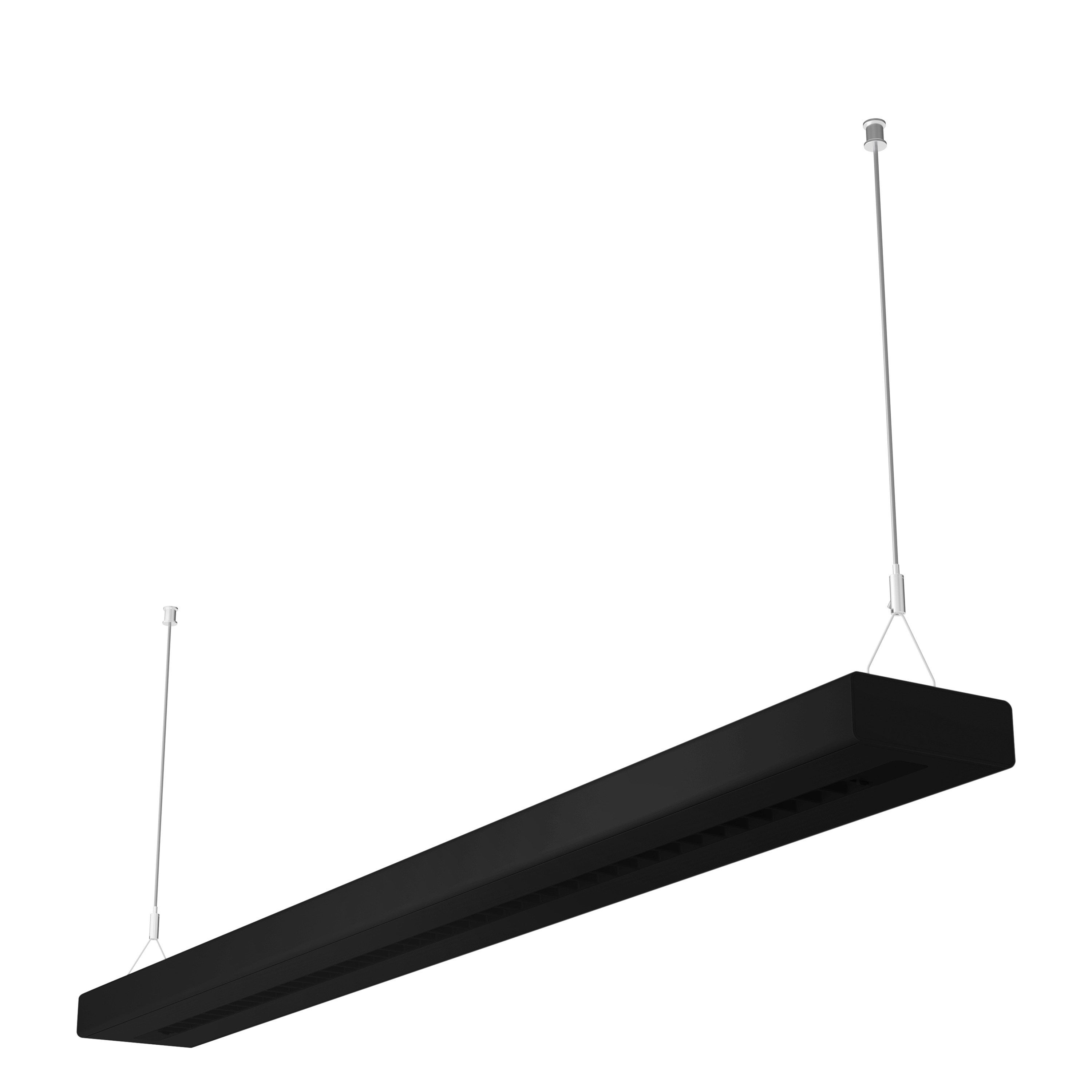

Product image: white background, diagonal, alternative image
LN INV P BK JPG (829.34 KB)

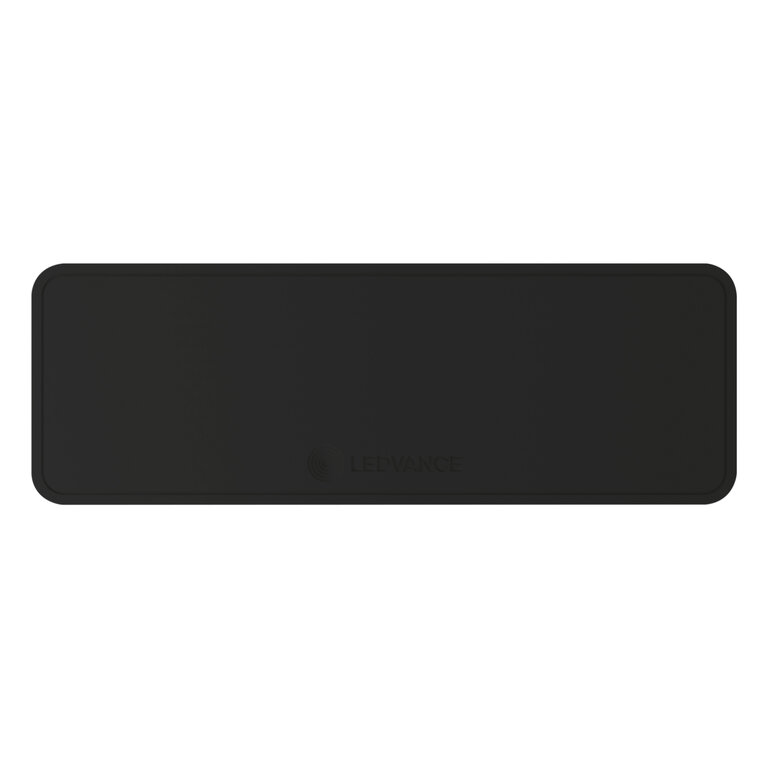

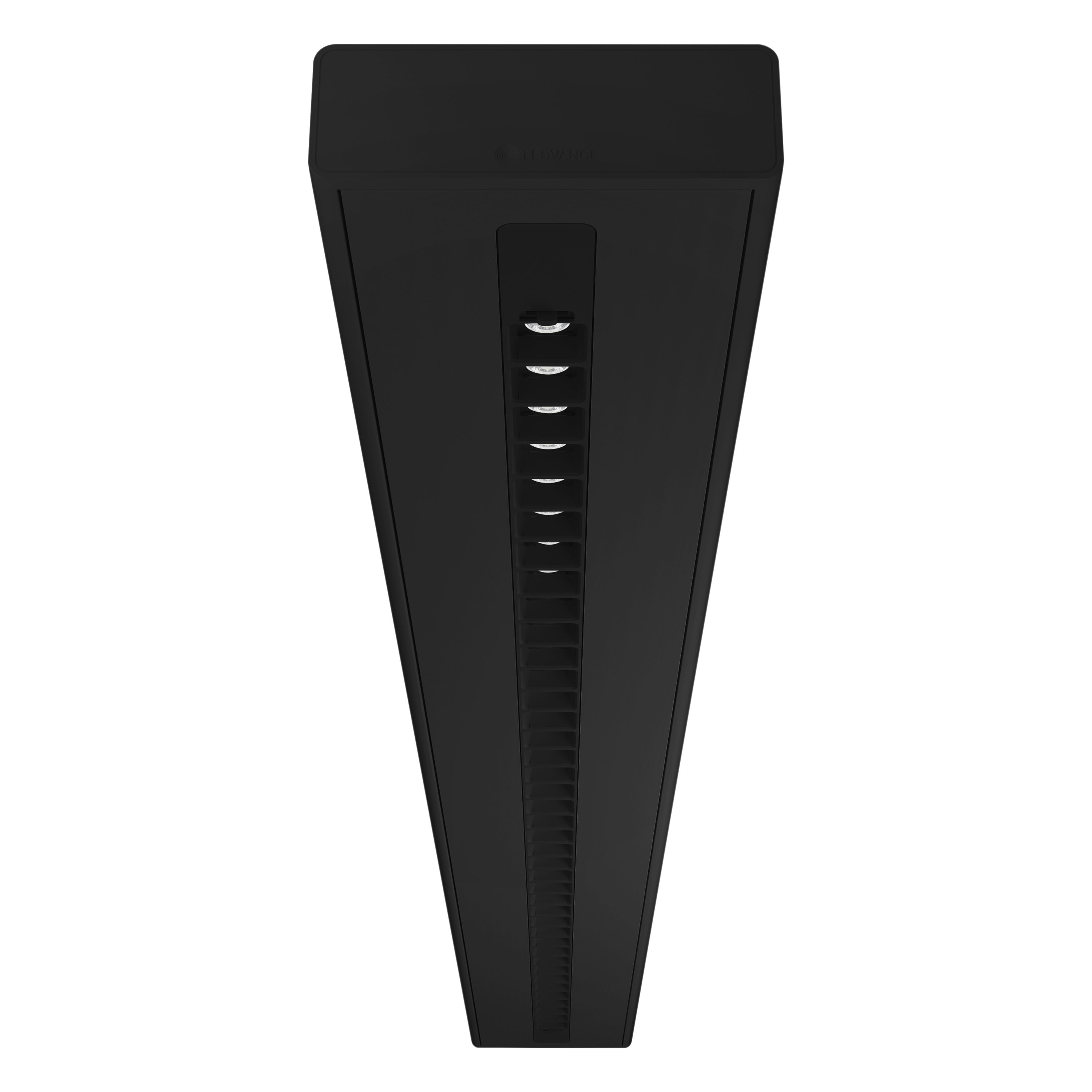

Product image: white background, diagonal, alternative image
LN INV P BK JPG (810.98 KB)

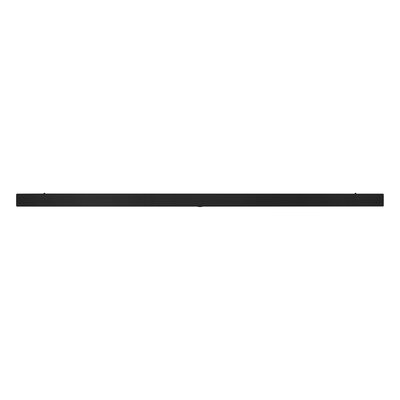

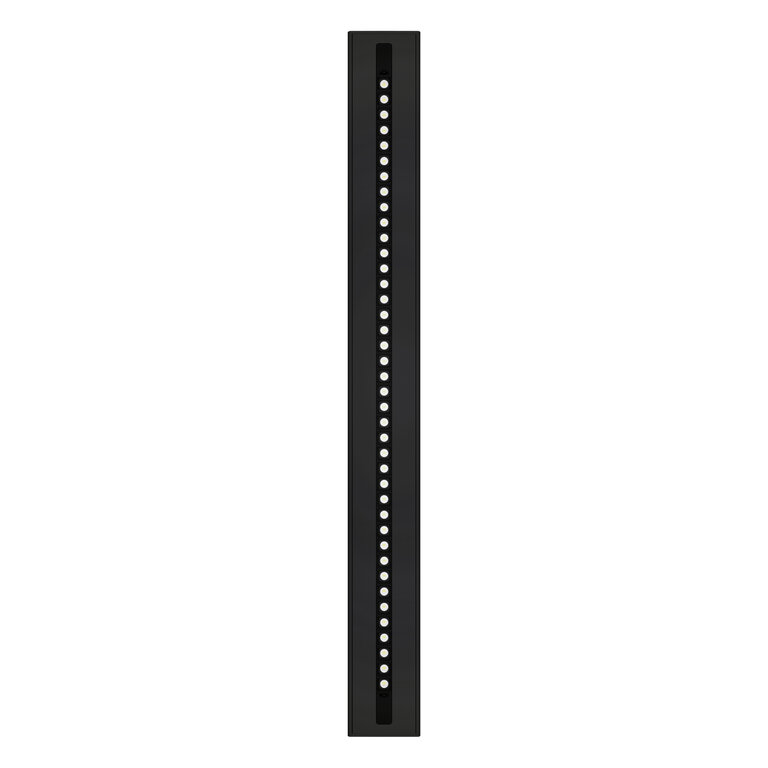

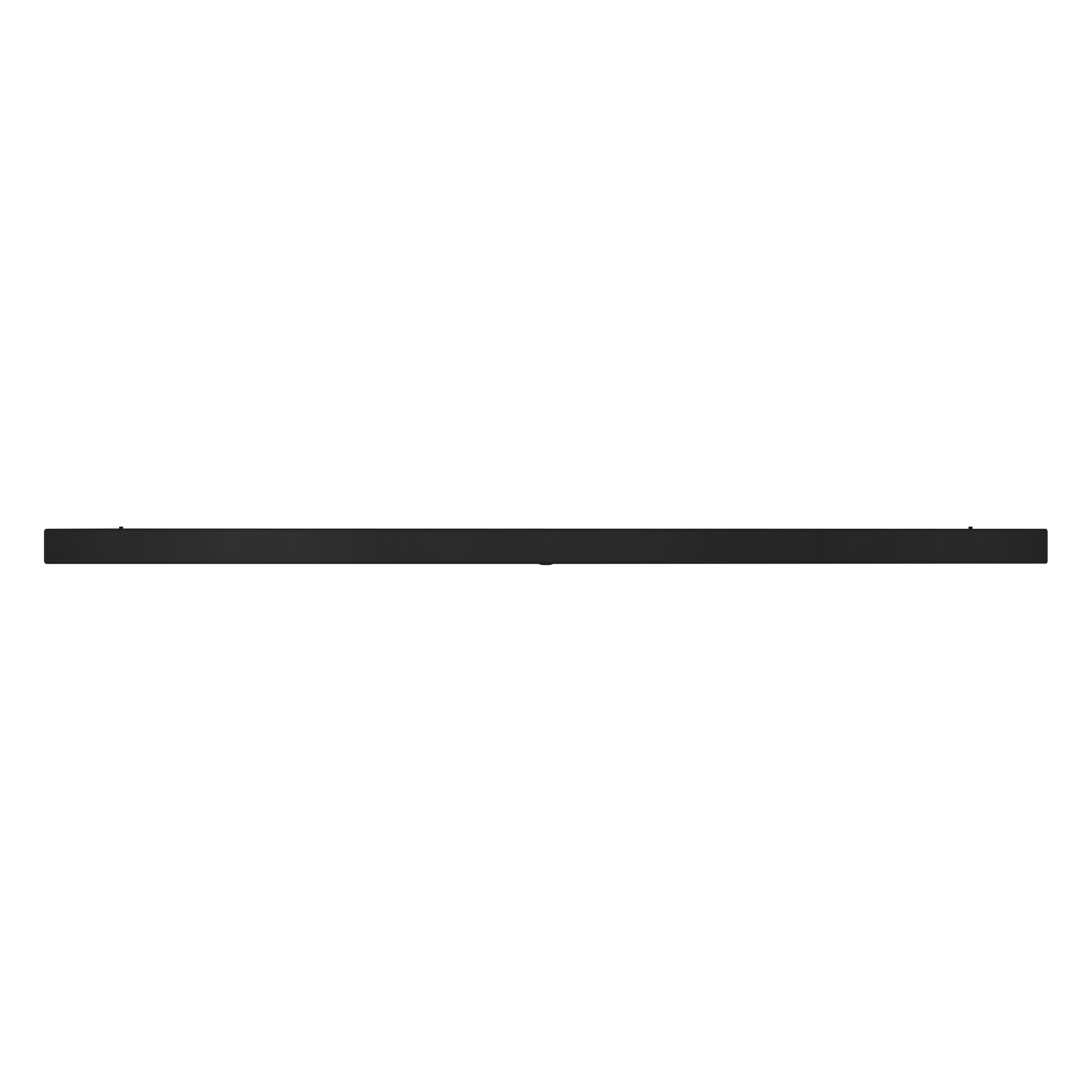

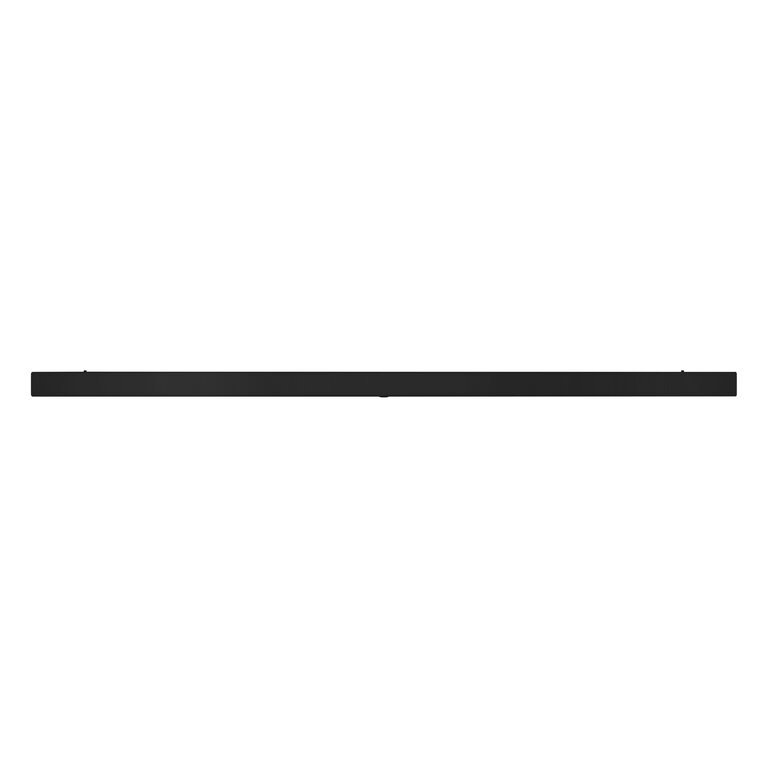

Product image: white background, horizontal
LN INV P BK JPG (652.07 KB)

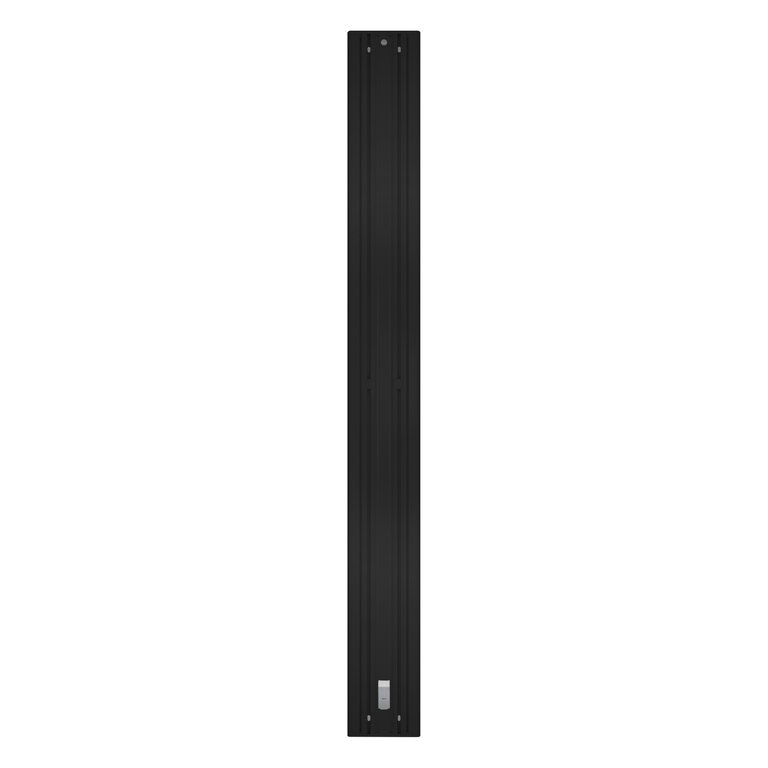

Product image: white background, upright
LN INV P BK JPG (1.07 MB)

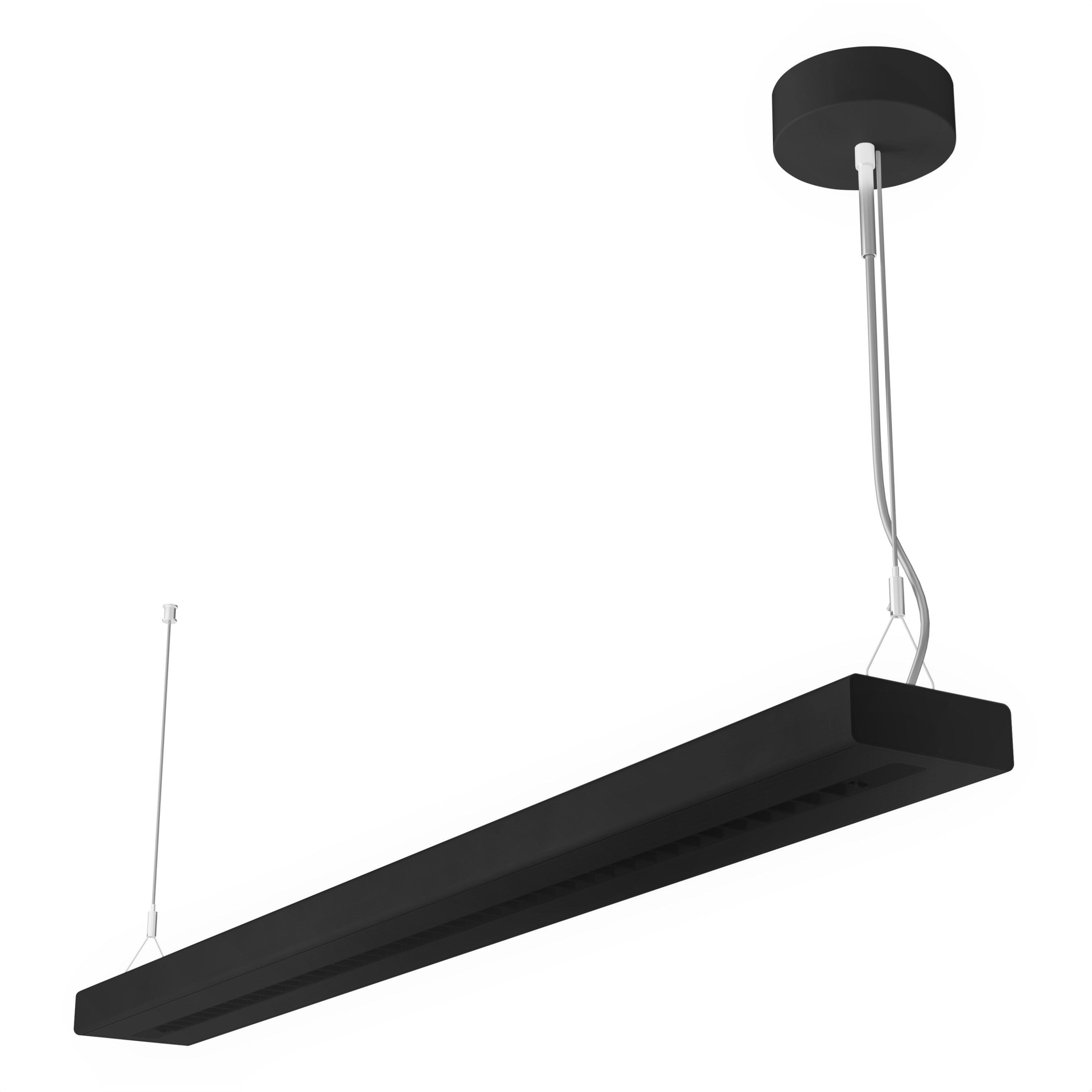

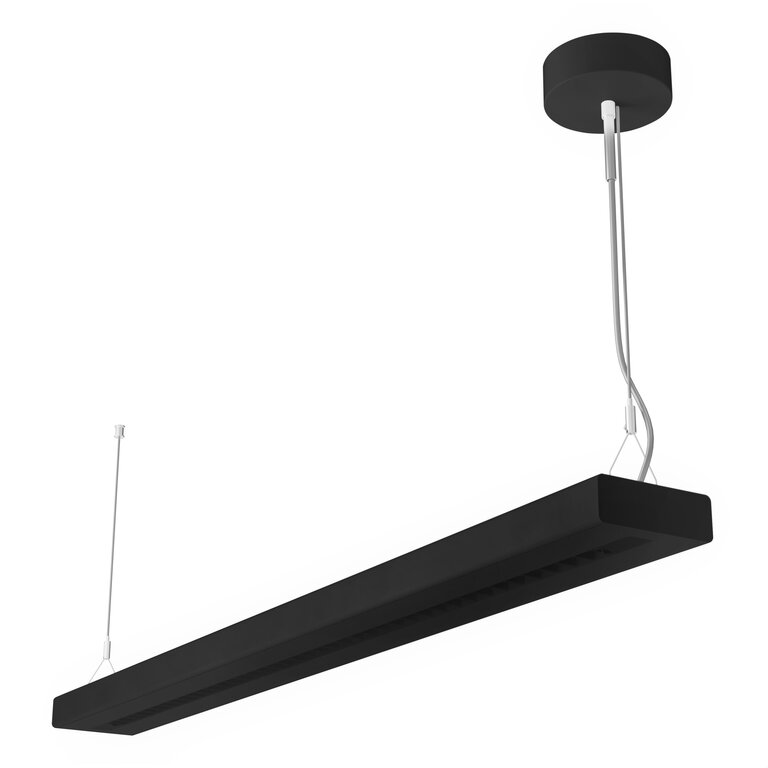

Product image: white background, spacial
LN INV DI JPG (255.52 KB)
Product line drawing with letters
LN INV 1500 P SVG (92.47 KB)
Product line drawing with numbers
LN INV 1500 P SVG (98.42 KB)
Product line drawing, front, no dimensions
LN INV 1500 P SVG (88.67 KB)

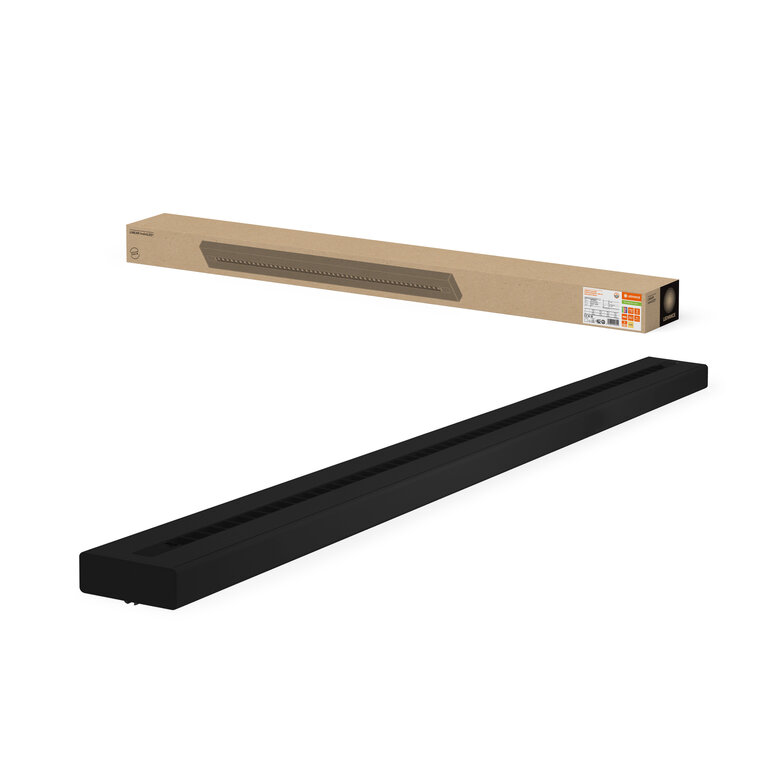

Combo Shot = Product Beauty Shot + Packaging Image
LN INV DI 1500 P 69W 9 30 PS BK JPG (810.2 KB)

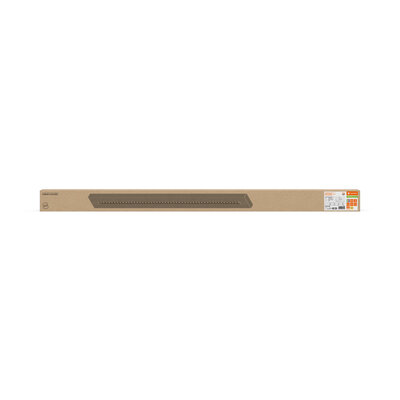

Packaging image, frontal
LN INV DI 1500 P 69W 9 30 PS BK JPG (701.16 KB)

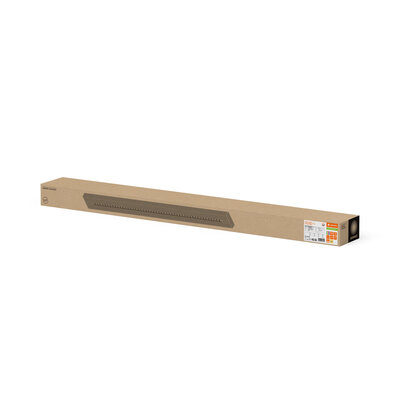

Packaging image, spacial
LN INV DI 1500 P 69W 9 30 PS BK JPG (757.96 KB)

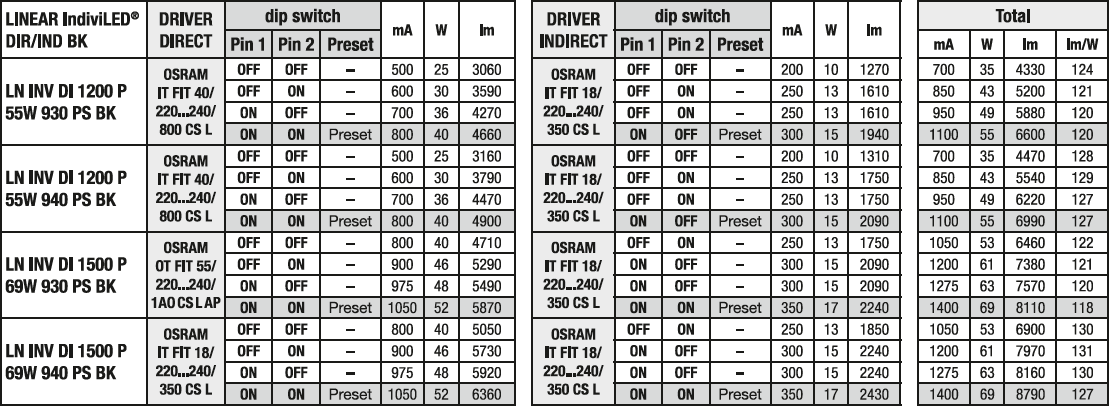

Catalog info 1
LN INV DI PS BK PNG (123.29 KB)
Catalog info 3
LN INV PNG (123.54 KB)
Catalog info 6
Everloop Icon PNG (98.94 KB)
IES file (IES)
LN INV DI 1500 P 69W 9 30 PS BK 1400mA IES (72.96 KB)
LDT file (Eulumdat)
LN INV DI 1500 P 69W 9 30 PS BK 1400mA LDT (64.35 KB)
ULD file (DIALux)
LN INV DI 1500 P 69W 9 30 PS BK ULD (378.88 KB)
ROLF file (RELUX)
LN INV DI 1500 P 69W 9 30 PS BK ROLF (112.13 KB)

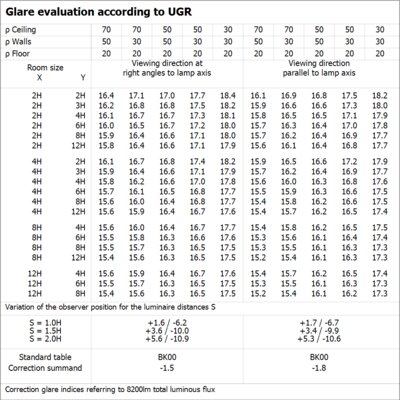

UGR file (UGR table)
LN INV DI 1500 P 69W 9 30 PS BK 1400mA PNG (60.72 KB)
Light distribution curve type cone
LN INV DI 1500 P 69W 9 30 PS BK 1400mA SVG (16.78 KB)
Light distribution curve type polar
LN INV DI 1500 P 69W 9 30 PS BK 1400mA SVG (19.6 KB)
BIM Revit 3D
Linear Indiviled G2 ZIP (11.41 MB)
CAD STEP 3D
LN INV D I 1500 G2. STEP (11.98 MB)
EAN SEG number STK number ELDAS number
4099854296949 7028103 4152128 941303040
