LINEAR INDIVILED DIRECT/INDIRECT 1500 DALI SENSOR

Choose your product version

1500 P 69W 930 DAVR SN BK

1500 P 69W 930 DAVR SN WT

1500 P 69W 940 DAVR SN BK

1500 P 69W 940 DAVR SN WT

OVERVIEW

Product description Nominal wattage Number of switching cycles Beam angle Luminous flux Dimmable
LN INV DI 1500 P 69W 930 DAVR SN BK 69 W / 63 W / 60 W / 54 W 25000 90 ° + 130 ° 8000 lm / 7500 lm / 7150 lm / 6550 lm Yes
LN INV DI 1500 P 69W 930 DAVR SN WT 69 W / 63 W / 60 W / 54 W 25000 90 ° + 130 ° 8150 lm / 7650 lm / 7300 lm / 6650 lm Yes
LN INV DI 1500 P 69W 940 DAVR SN BK 69 W / 63 W / 60 W / 54 W 25000 90 ° + 130 ° 8550 lm / 8000 lm / 7450 lm / 6950 lm Yes
LN INV DI 1500 P 69W 940 DAVR SN WT 69 W / 63 W / 60 W / 54 W 25000 90 ° + 130 ° 8700 lm / 8150 lm / 7600 lm / 7050 lm Yes


LN INV DI 1500 P 69W 930 DAVR SN BK

Product benefits
  • Easy upgradeability of light source and driver (EVERLOOP design)
  • Homogenous light distribution and reduced glare (UGR ≤ 19) thanks to IndiviLED® optics
  • Pendant luminaires with direct light emission (70%) and indirect light emission (30%)
  • High performance with CRI90 and up to 131 lm/W
  • High color consistency with SDCM 3
  • Easy installation
  • Low flicker light thanks to special electronic control gear
  • Suitable for battery emergency installations acc. to EN 60598-2-22
  • Multiple mounting options thanks to different accessories
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 69 W / 63 W / 60 W / 54 W
Nominal voltage 220…240 V
Mains frequency 0/50/60 Hz
Nominal current 308…285…270…240 mA
Inrush current 16 A
Inrush current time Th50 40 µs
Max. number of luminaires per miniature circuit breaker B16 23
Max. number of luminaires per miniature circuit breaker C10 20
Max. number of luminaires per miniature circuit breaker C16 32
Power factor λ > 0.90
Total harmonic distortion ≤ 20 %
Protection class I
Operating mode Integrated LED driver

Photometrical data

Luminous flux 8000 lm / 7500 lm / 7150 lm / 6550 lm
Luminous efficacy 116 lm/W / 119 lm/W / 121 lm/W
Color temperature 3000 K
Light color (designation) Warm White
Color rendering index Ra > 90
Standard deviation of color matching < 3 sdcm
Low flicker Yes
Flickering metric (Pst LM) ≤1
Stroboscope effect metric (SVM) ≤0.4
Photobiological safety group acc. to EN62778 RG0
Photobiological safety group acc. to EN62471 RG0
Beam angle 90 ° + 130 °
UGR < 19

Adjustable attributes

Nominal wattage Color temperature Luminous flux Luminous efficacy
69 W 3000 K 8000 lm 116 lm/W
63 W 3000 K 7500 lm 119 lm/W
60 W 3000 K 7150 lm 119 lm/W
54 W 3000 K 6550 lm 121 lm/W

Dimensions & Weight

Length 1475.00 mm
Height 43.00 mm
Width 125.00 mm
Product weight 4250.00 g

Materials & Colors

Product color Black
Housing color Black
Body material Aluminum
Cover material Polymethylmethacrylate (PMMA)
Light emitting surface material Polymethylmethacrylate (PMMA)
Glow Wire Test according to IEC 60695-2-12 850 °C
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -20…+50 °C
Temperature range at storage -20…+80 °C
Type of connection Screwless terminal, 5-Pole (L, N, PE, DA+, DA-)
Type of protection IP20
Protection class IK (shock resistance) IK06
Dimmable Yes
Type of dimming DALI2
Mounting type Suspended
Mounting location Ceiling
Application environment Indoor
Adjustable No
With light source Yes
Replaceable light source No

Lifespan

Lifespan L70/B50 at 25 °C 100000 h 1)
Lifespan L80/B10 at 25 °C 70000 h 1)
Lifespan L90/B10 at 25 °C 35000 h
Number of switching cycles 25000

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Control gear

Output current 1400mA / 1300mA / 1200mA / 1100 mA
ECG - Output ripple current ≤ 5 %
Recommended control gear OSRAM type ETI DALI 75/220-240/1A4 LT2

Sensor

Type of sensor Motion, Light
Sensor technology Passive infrared/Photocell
Sensor detection angle 80 °
Sensor controlled switching time 10 s … 30 min
Detection range of motion sensor 1.7 m … 4 m

Certificates & Standards

Standards CE, CB, ENEC, TÜV SÜD, UKCA, EAC
Luminaire with limited surface temperature, "D sign" No
Ball shot safe No
Replaceable light source (EPREL) By the end consumer

Additional product data

Added function EVERLOOP, VIVARES

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1), N,N-Dimethylformamide (68-12-2)

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Easy upgradeability of light source and driver (EVERLOOP design)
  • Homogenous light distribution and reduced glare (UGR ≤ 19) thanks to IndiviLED® optics
  • Pendant luminaires with direct light emission (70%) and indirect light emission (30%)
  • High performance with CRI90 and up to 131 lm/W
  • High color consistency with SDCM 3
  • Easy installation
  • Low flicker light thanks to special electronic control gear
  • Suitable for battery emergency installations acc. to EN 60598-2-22
  • Multiple mounting options thanks to different accessories
Areas of application
  • Direct replacement for luminaires with fluorescent lamps
  • Offices, education, public buildings
  • Single and continuous line configuration
  • Direct and indirect lighting
Product features
  • Minimalistic LEDVANCE SCALE design in extruded aluminum housing, available in white and black color
  • Includes EVERLOOP: Convenient replacement of light source and LED driver
  • PIR-Sensor with leader-follower function
  • Combined daylight and motion detection
  • Individual adjustment of the parameters with configuration software or remote control
  • Linkable into seamless light line with accessories (surface or pendant mounting)
  • Pendant mounting with suspension kit (to be ordered separetely)
  • Glow Wire Test according to IEC 60695-2-12: 850 °C
  • 5-pole terminal block, cable cross section up to 5 x 2.5 mm²
  • Lifetime (L80/B10): 70,000 h (at 25 °C)
Equipment / Accessories
  • Suspension kit available for pendant luminaire version (to be ordered separately)
  • Inline, corner and infill connectors available as separate accessory
  • Through-wiring cable kit available
Safety advice
  • All electrical connections must be made by a qualified person.
  • If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively replaced by a qualified person in order to avoid a hazard.
  • Caution, risk of electric shock.
  • Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854371844 Folding box
1		 177 mm x 1,530 mm x 102 mm 4950.00 g 27.62 dm³
4099854371851 Shipping box
2		 1,550 mm x 197 mm x 224 mm 11500.00 g 68.40 dm³
Product image Product name EAN
LN INV SUSPENSION KIT BK 4099854297069
Product image Product name EAN
LN INV INFILL 600 BK 4099854297045
LN INV INFILL 1200 BK 4099854297007
LN INV INFILL 1500 BK 4099854297021
User instruction / safety instructions
LN INV P DAVR SN PDF (5.92 MB)
Legal information
Legal Insert LN INV P DA PDF (781.7 KB)
Legal information
LSI LN INV DA PDF (2.6 MB)
Declarations of conformity
LN INV PDF (298.65 KB)
Certificates
LN INV PDF (343.84 KB)

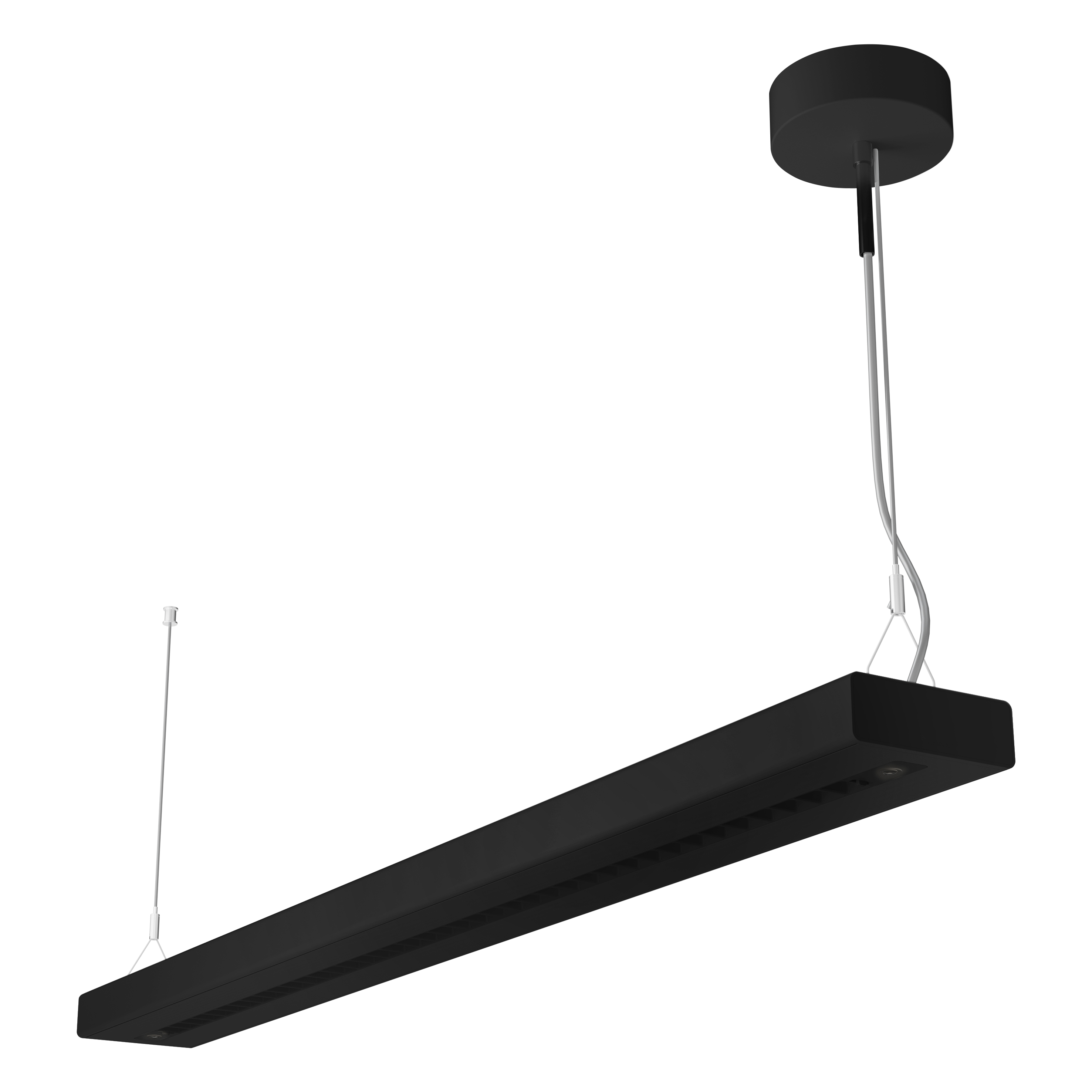

Product image: white background, diagonal
LN INV DI DAVR SN BK JPG (794 KB)
Product image: white background, diagonal, alternative image
LN INV DI DAVR SN BK JPG (818.58 KB)
Product image: white background, diagonal, alternative image
LN INV DI DAVR SN BK JPG (797.03 KB)
Product image: white background, horizontal
LN INV P BK JPG (652.07 KB)
Product image: white background, upright
LN INV DI DAVR SN BK JPG (1.05 MB)
Product image: white background, spacial
LN INV DI DAVR SN BK JPG (842.23 KB)
Product line drawing with letters
LN INV 1200 P SVG (76.41 KB)
Product line drawing with numbers
LN INV 1200 P SVG (82.97 KB)
Product line drawing, front, no dimensions
LN INV 1200 P SVG (72.8 KB)

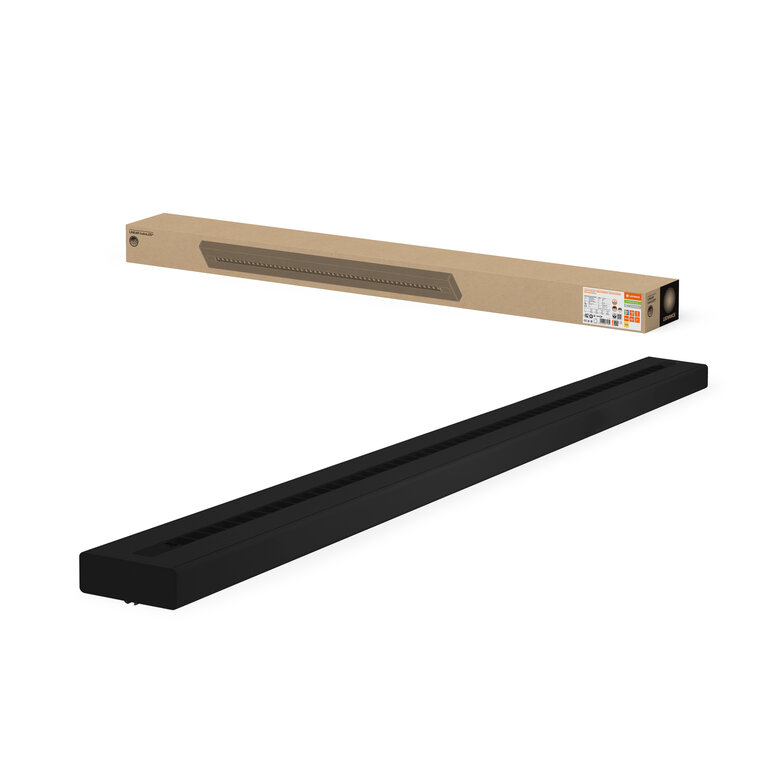

Combo Shot = Product Beauty Shot + Packaging Image
LN INV DI 1500 P 69W 9 30 DAVR SN BK JPG (800.85 KB)

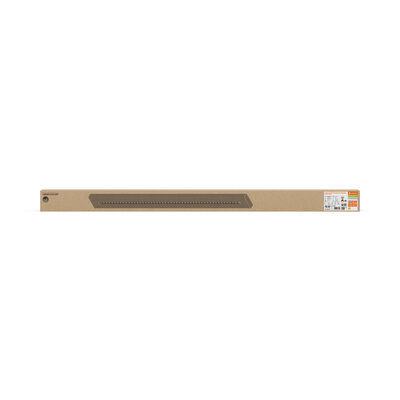

Packaging image, frontal
LN INV DI 1500 P 69W 9 30 DAVR SN BK JPG (695.38 KB)

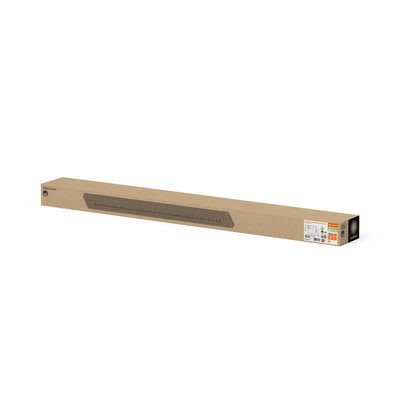

Packaging image, spacial
LN INV DI 1500 P 69W 9 30 DAVR SN BK JPG (748.07 KB)

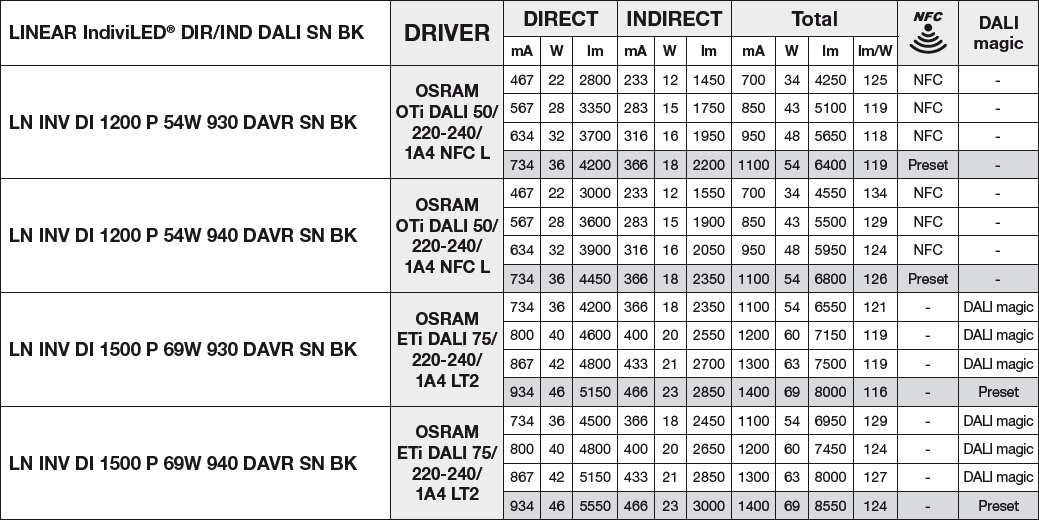

Catalog info 1
LN INV DI DA SN PNG (87.98 KB)
Catalog info 3
LN INV PNG (123.54 KB)
Catalog info 6
Everloop Icon PNG (98.94 KB)
IES file (IES)
LN INV DI 1500 P 69W 9 30 DAVR SN BK IES (72.96 KB)
LDT file (Eulumdat)
LN INV DI 1500 P 69W 9 30 DAVR SN BK LDT (50.89 KB)
ULD file (DIALux)
LN INV DI 1500 P 69W 9 30 DAVR SN BK ULD (391.68 KB)
ROLF file (RELUX)
LN INV DI 1500 P 69W 9 30 DAVR SN BK ROLF (177.44 KB)

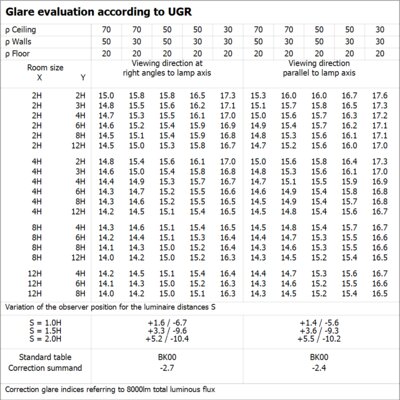

UGR file (UGR table)
LN INV DI 1500 P 69W 9 30 DAVR SN BK PNG (60.54 KB)
Light distribution curve type cone
LN INV DI 1500 P 69W 9 30 DAVR SN BK SVG (16.77 KB)
Light distribution curve type polar
LN INV DI 1500 P 69W 9 30 DAVR SN BK SVG (19.6 KB)
BIM Revit 3D
Linear Indiviled G2 ZIP (11.41 MB)
CAD STEP 3D
LN INV D I 1500 G2. STEP (11.98 MB)
EAN STK number
4099854371844 4152140
