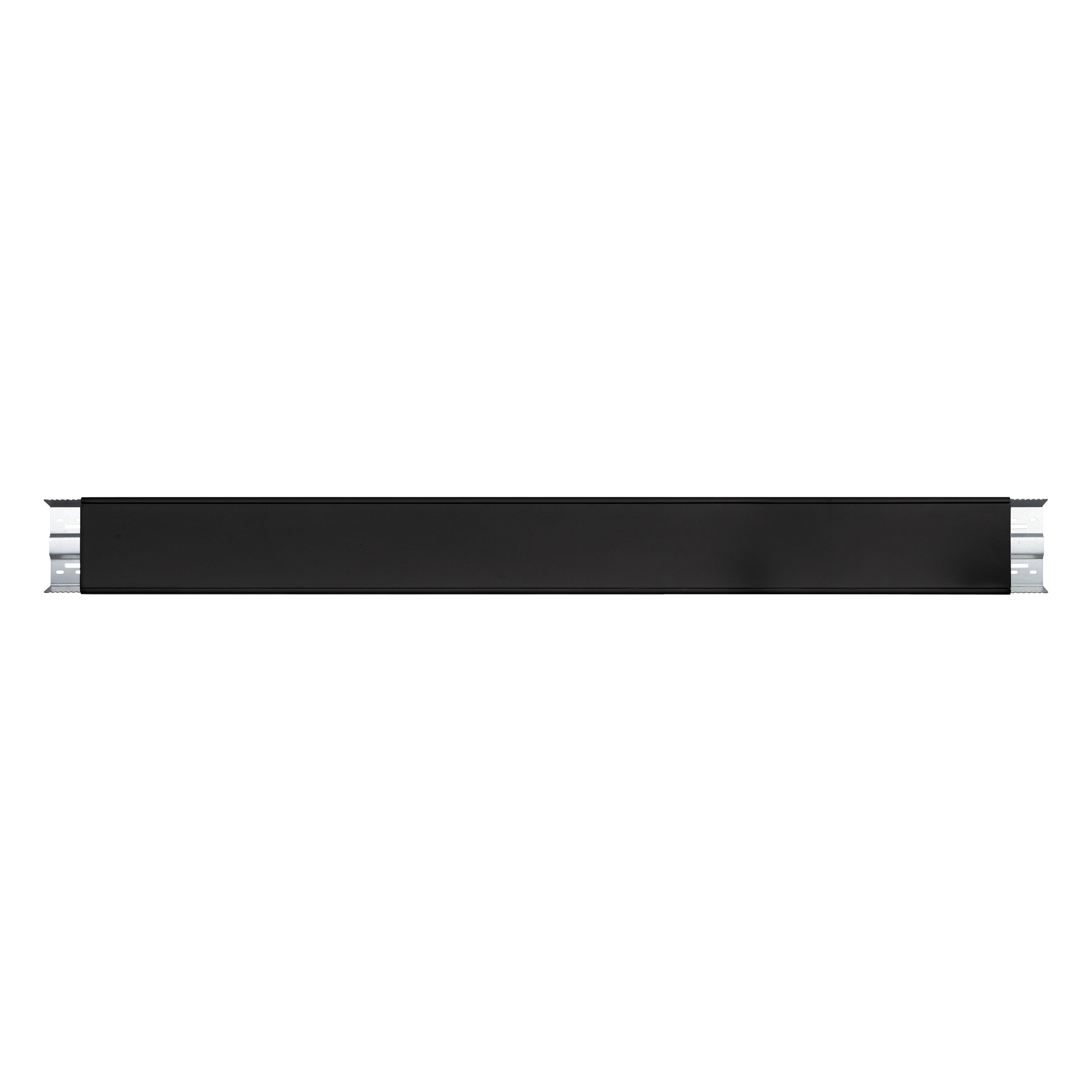

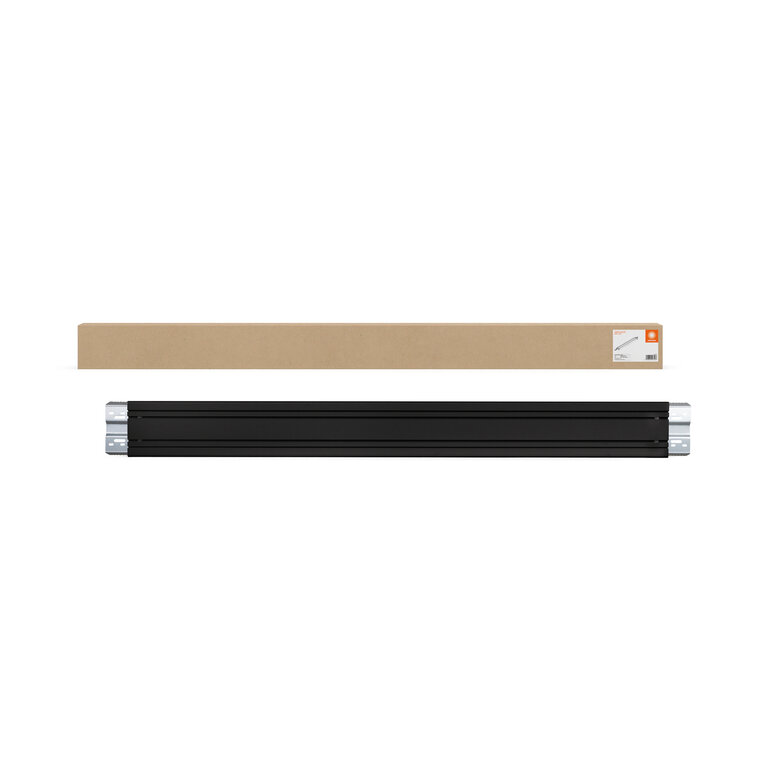

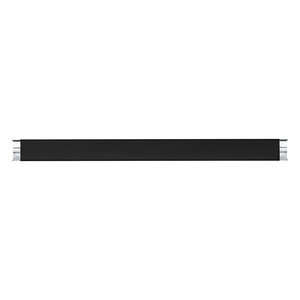

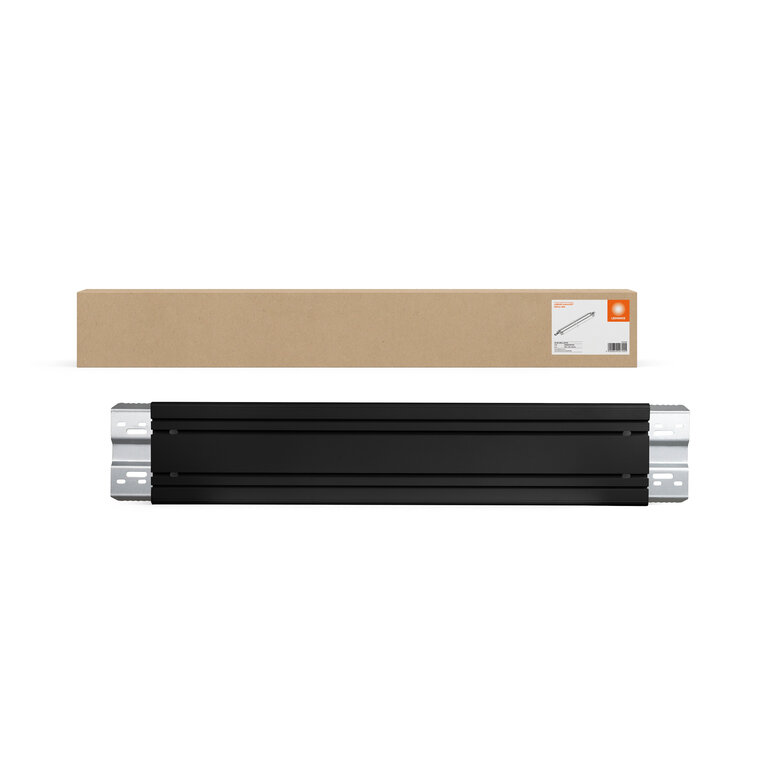

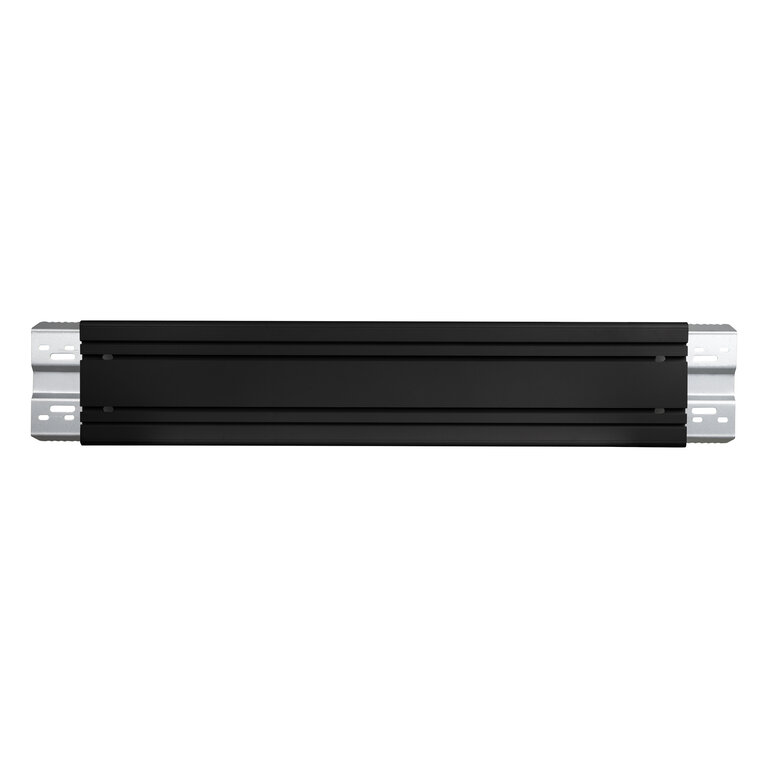

LINEAR INDIVILED INFILL

Choose your product version

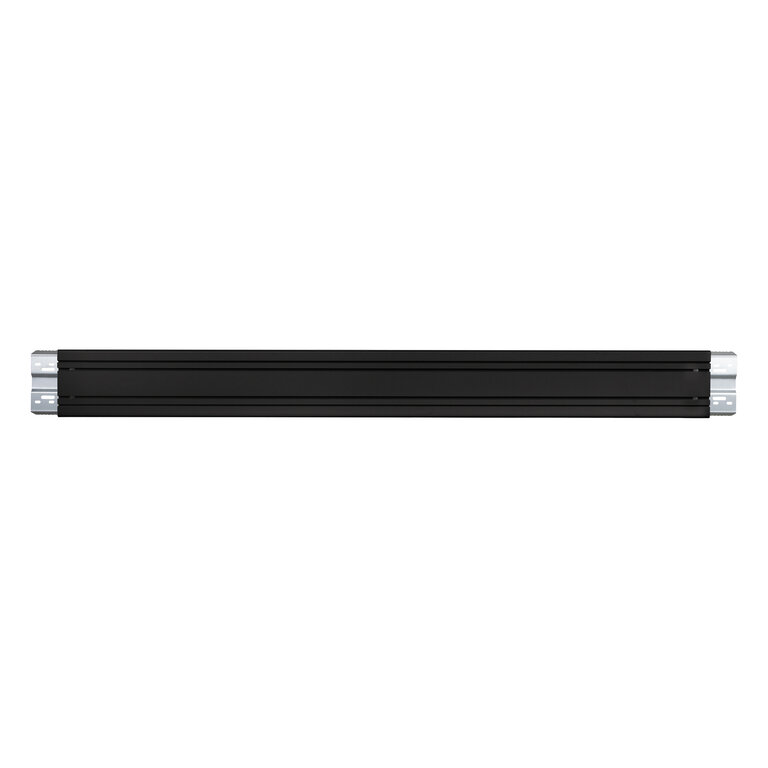

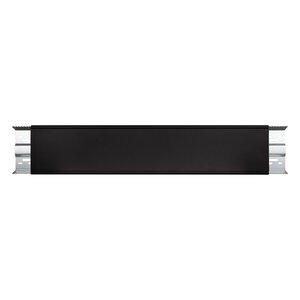

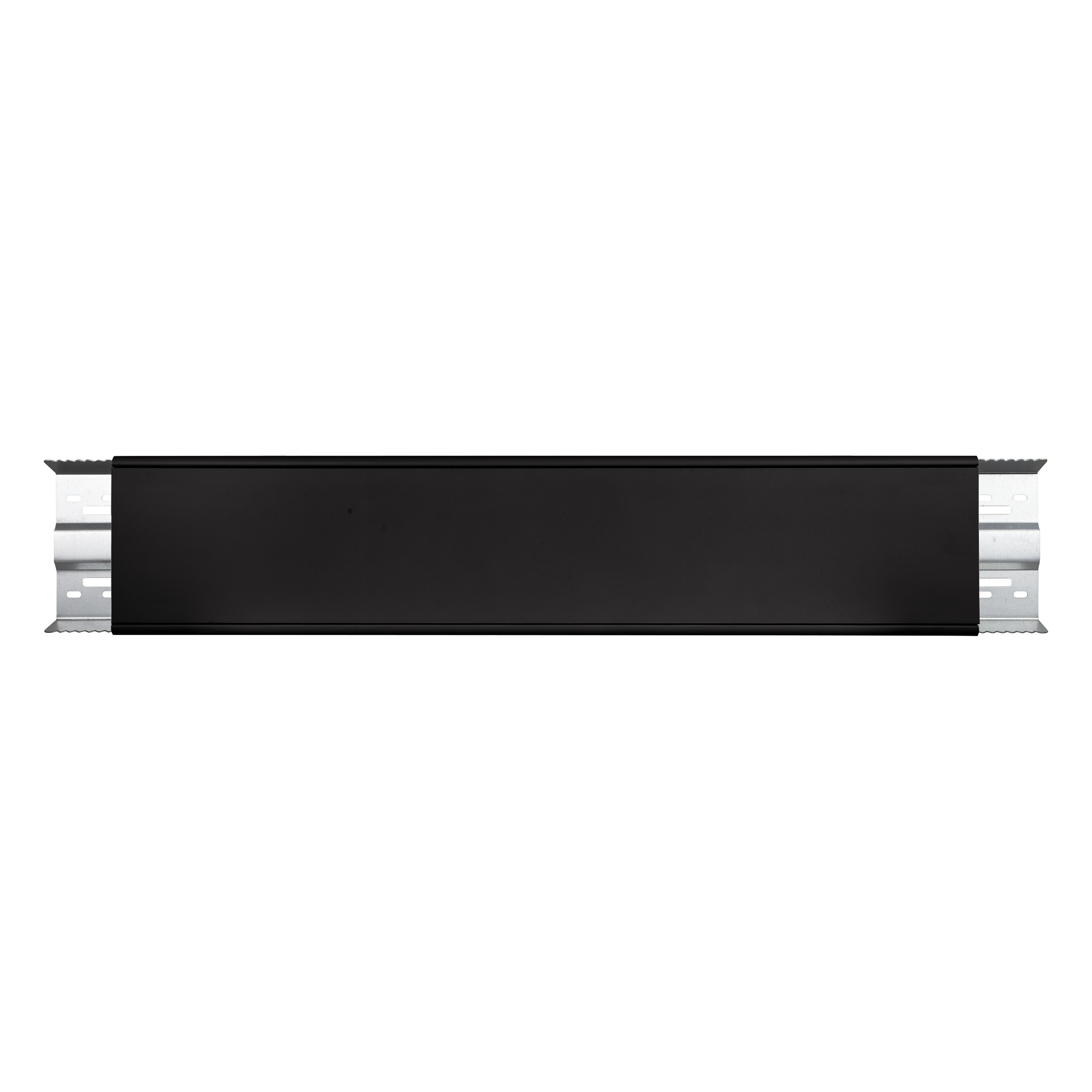

LN INV INFILL 1200 BK

Product benefits
  • Easy and quick connection of luminaires for light line installations
  • Very solid connector for long operation

PRODUCT DETAILS

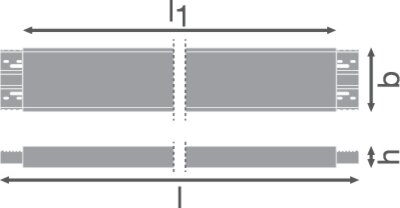

Dimensions & Weight

Length 1300 mm
Height 43 mm
Width 125 mm
Product weight 2700.00 g

Materials & Colors

Product color Black
Body material Aluminum

Application & Mounting

Replaceable light source No

Certificates & Standards

Standards CE, UKCA
Luminaire with limited surface temperature, "D sign" No

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals 0 mg
Quantity of rare earths 0 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Easy and quick connection of luminaires for light line installations
  • Very solid connector for long operation
Product features

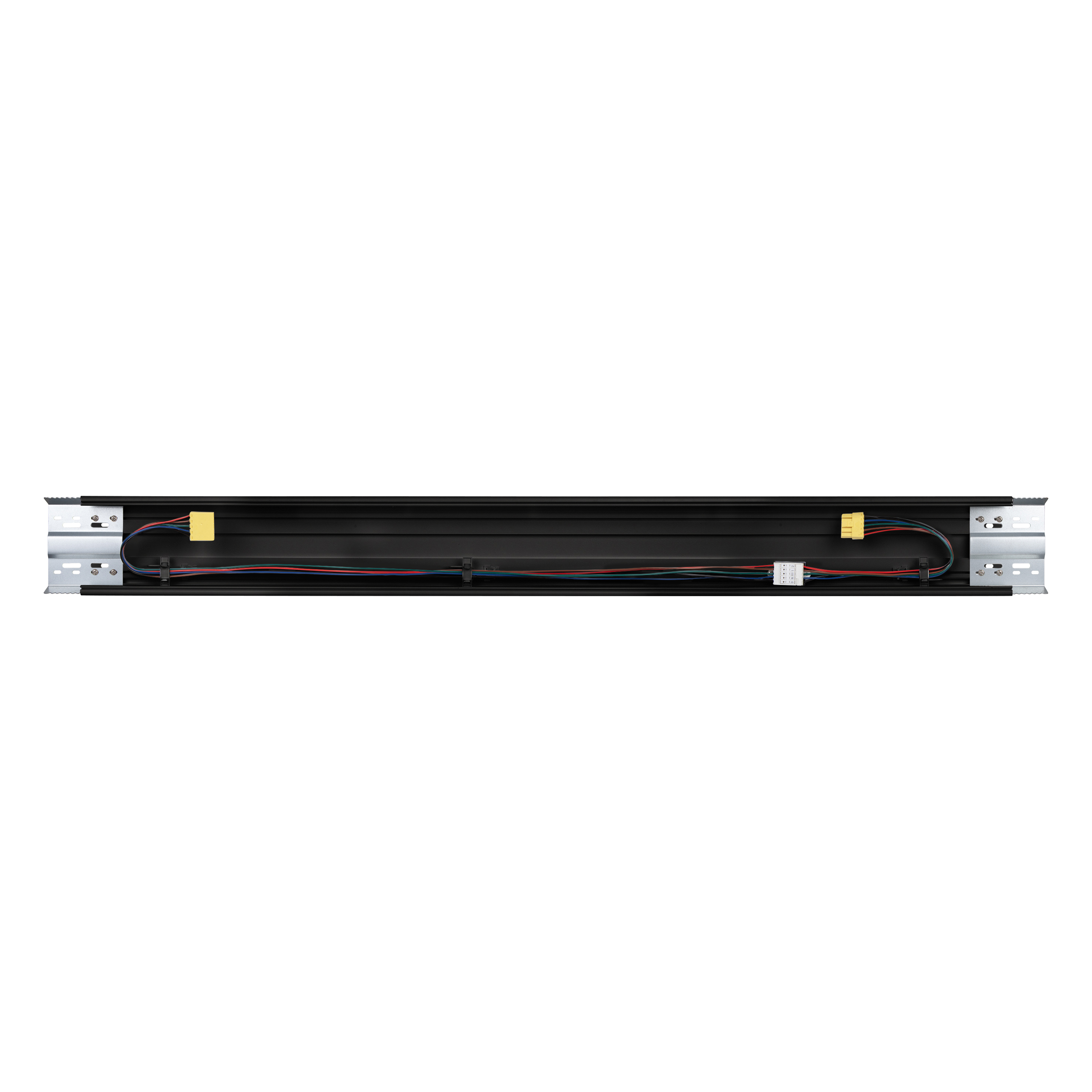

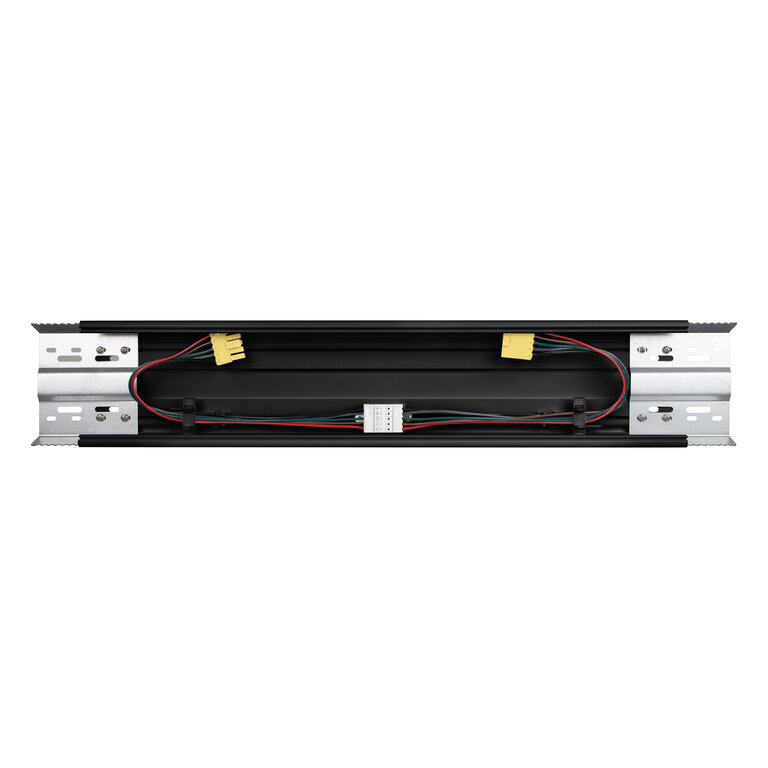

  • Mechanical and electric connector (profile, 5 x 2.5 mm² internal wiring and terminal plug, male-female AC plug)
  • Connector made of aluminum, white powder-coated
  • Available in black and white color

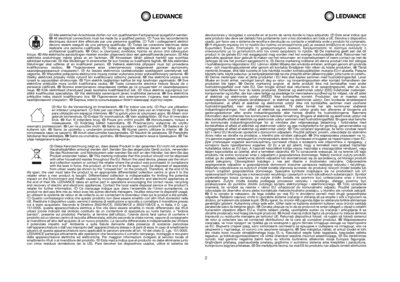

Safety advice
  • All electrical connections must be made by a qualified person.
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume

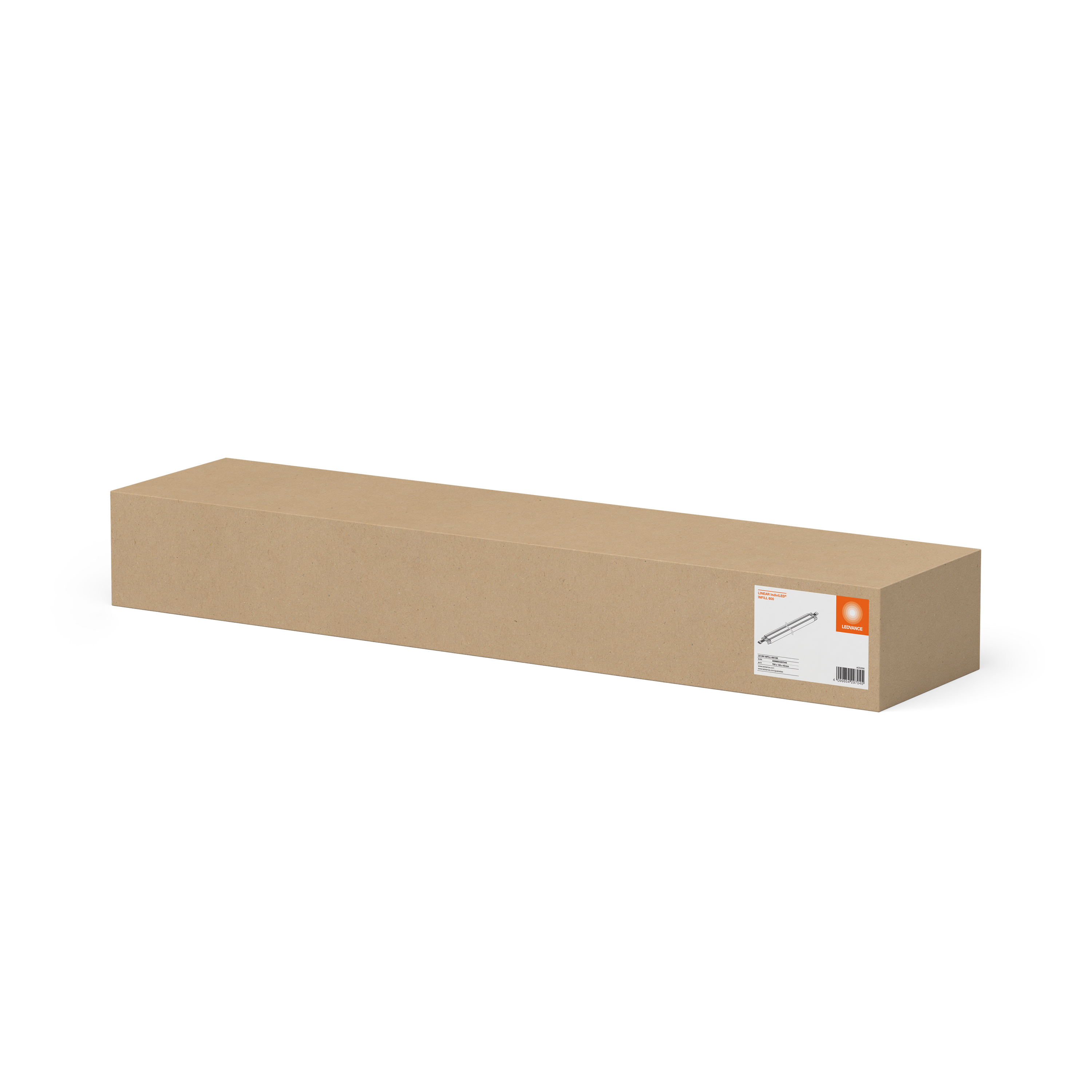

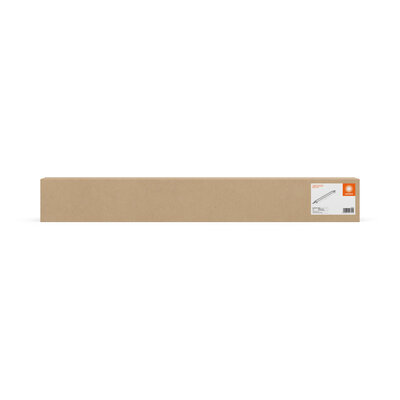

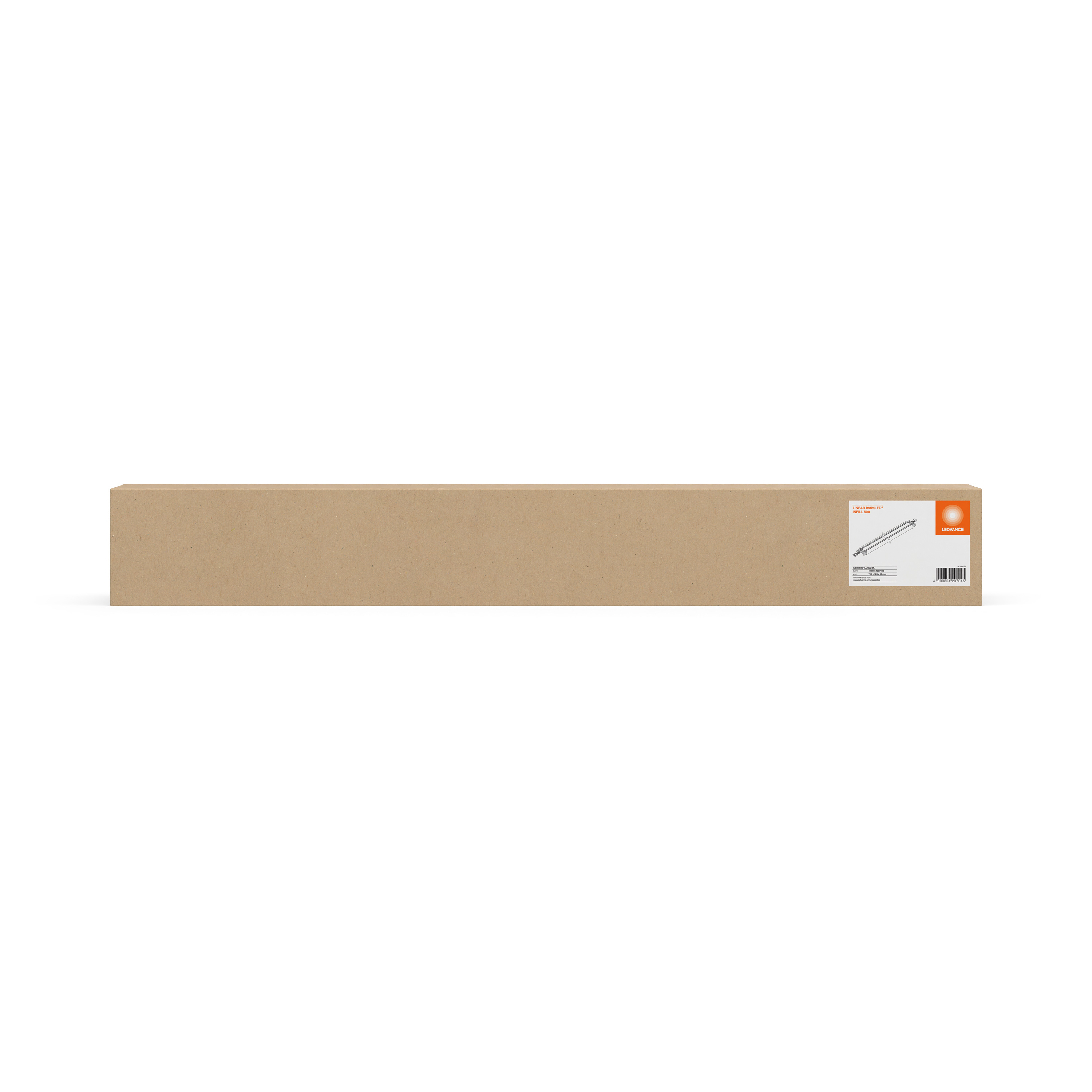

4099854297007 Folding box
1
177 mm x 1,357 mm x 102 mm 2740.00 g 24.50 dm³
4099854297014 Shipping box
2
1,377 mm x 197 mm x 224 mm 6557.00 g 60.76 dm³
EAN SEG number STK number ELDAS number
4099854297007 7028118 4152163 941904090
