LED VALUE LINEAR HIGHBAY

Choose your product version

50W 865 HRO

50W 865 WD

50W 865 NW

50W 840 HRO

50W 840 NW

50W 840 WD

100W 865 WD

100W 865 NW

100W 865 HRO

100W 840 NW

100W 840 WD

100W 840 HRO

150W 865 HRO

150W 865 NW

150W 865 WD

150W 840 HRO

150W 840 NW

150W 840 WD

200W 865 WD

200W 865 NW

200W 865 HRO

200W 840 NW

200W 840 WD

200W 840 HRO

OVERVIEW

Product description Nominal wattage Beam angle Luminous flux Dimmable
LED VALUE LINEAR HIGHBAY 50W 865 HRO 50.00 W 30° x 90° 6500 lm Yes
LED VALUE LINEAR HIGHBAY 50W 865 WD 50.00 W 90 ° 6500 lm Yes
LED VALUE LINEAR HIGHBAY 50W 865 NW 50.00 W 60 ° 6500 lm Yes
LED VALUE LINEAR HIGHBAY 50W 840 HRO 50.00 W 30° x 90° 6750 lm Yes
LED VALUE LINEAR HIGHBAY 50W 840 NW 50.00 W 60 ° 6750 lm Yes
LED VALUE LINEAR HIGHBAY 50W 840 WD 50.00 W 90 ° 6750 lm Yes
LED VALUE LINEAR HIGHBAY 100W 865 WD 100.00 W 90 ° 13000 lm Yes
LED VALUE LINEAR HIGHBAY 100W 865 NW 100.00 W 60 ° 13000 lm Yes
LED VALUE LINEAR HIGHBAY 100W 865 HRO 100.00 W 30° x 90° 13000 lm Yes
LED VALUE LINEAR HIGHBAY 100W 840 NW 100.00 W 60 ° 13500 lm Yes
LED VALUE LINEAR HIGHBAY 100W 840 WD 100.00 W 90 ° 13500 lm Yes
LED VALUE LINEAR HIGHBAY 100W 840 HRO 100.00 W 30° x 90° 13500 lm Yes
LED VALUE LINEAR HIGHBAY 150W 865 HRO 150.00 W 30° x 90° 19500 lm Yes
LED VALUE LINEAR HIGHBAY 150W 865 NW 150.00 W 60 ° 19500 lm Yes
LED VALUE LINEAR HIGHBAY 150W 865 WD 150.00 W 90 ° 19500 lm Yes
LED VALUE LINEAR HIGHBAY 150W 840 HRO 150.00 W 30° x 90° 20250 lm Yes
LED VALUE LINEAR HIGHBAY 150W 840 NW 150.00 W 60 ° 20250 lm Yes
LED VALUE LINEAR HIGHBAY 150W 840 WD 150.00 W 90 ° 20250 lm Yes
LED VALUE LINEAR HIGHBAY 200W 865 WD 200.00 W 90 ° 26000 lm No
LED VALUE LINEAR HIGHBAY 200W 865 NW 200.00 W 60 ° 26000 lm Yes
LED VALUE LINEAR HIGHBAY 200W 865 HRO 200.00 W 30° x 90° 26000 lm Yes
LED VALUE LINEAR HIGHBAY 200W 840 NW 200.00 W 60 ° 27000 lm Yes
LED VALUE LINEAR HIGHBAY 200W 840 WD 200.00 W 90 ° 27000 lm Yes
LED VALUE LINEAR HIGHBAY 200W 840 HRO 200.00 W 30° x 90° 27000 lm Yes


LED VALUE LINEAR HIGHBAY 50W 865 HRO

Product benefits
  • Energy savings thanks to system efficacy up to 135 lm/W
  • 1-10 dimming provides additional energy saving
  • 3 kinds of beam angle available, Narrow (60°), Wide (90°) and High rack optic (30° x 90°), can meet different application requirements
  • IP44, can be used in indoor wet environment
  • Low maintenance costs thanks to long lifetime 50,000 hrs @ 35 ℃
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 50.00 W
Nominal voltage 100…240 V
Mains frequency 50…60 Hz
Nominal current 550.000 mA
Max. number of luminaires per miniature circuit breaker B16 2
Max. number of luminaires per miniature circuit breaker C16 2
Power factor λ > 0.90
Total harmonic distortion < 20 %
Protection class I

Photometrical data

Luminous flux 6500 lm
Luminous efficacy 130 lm/W
Color temperature 6500 K
Light color (designation) Daylight
Beam angle 30° x 90°

Dimensions & Weight

Length 252.00 mm
Height 70.00 mm
Width 129.00 mm
Product weight 900.00 g

Materials & Colors

Product color Gray
Housing color Gray
Body material Aluminum
Glow Wire Test according to IEC 60695-2-12 650 °C
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -20…+45 °C
Type of connection Terminal
Type of protection IP44
Protection class IK (shock resistance) IK06
Dimmable Yes
Type of dimming 1-10V
Mounting type Suspended/Surface
Application environment Indoor
Mounting length 252 mm
Mounting width 129 mm
With light source Yes
Replaceable light source No

Certificates & Standards

Ball shot safe No

Additional product data

Number of illuminants no

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Energy savings thanks to system efficacy up to 135 lm/W
  • 1-10 dimming provides additional energy saving
  • 3 kinds of beam angle available, Narrow (60°), Wide (90°) and High rack optic (30° x 90°), can meet different application requirements
  • IP44, can be used in indoor wet environment
  • Low maintenance costs thanks to long lifetime 50,000 hrs @ 35 ℃
Areas of application
  • Factory
  • Warehouses
  • Distribution centre
  • Other high ceiling indoor application
Product features
  • Available in 4 lengths: 252 mm, 491 mm, 730 mm and 969 mm
  • Available with wattage: 50 W, 100 W, 150 W and 200 W
  • Surge protection: up to 4 kV (L/N-PE), 2 kV (L-N)
  • Available in sling suspended and bracket mounted
  • Certificate: CB, RoHS
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075660113 Folding box
1		 300 mm x 105 mm x 155 mm 1027.00 g 4.88 dm³
4058075660120 Shipping box
10		 570 mm x 315 mm x 330 mm 11195.00 g 59.25 dm³

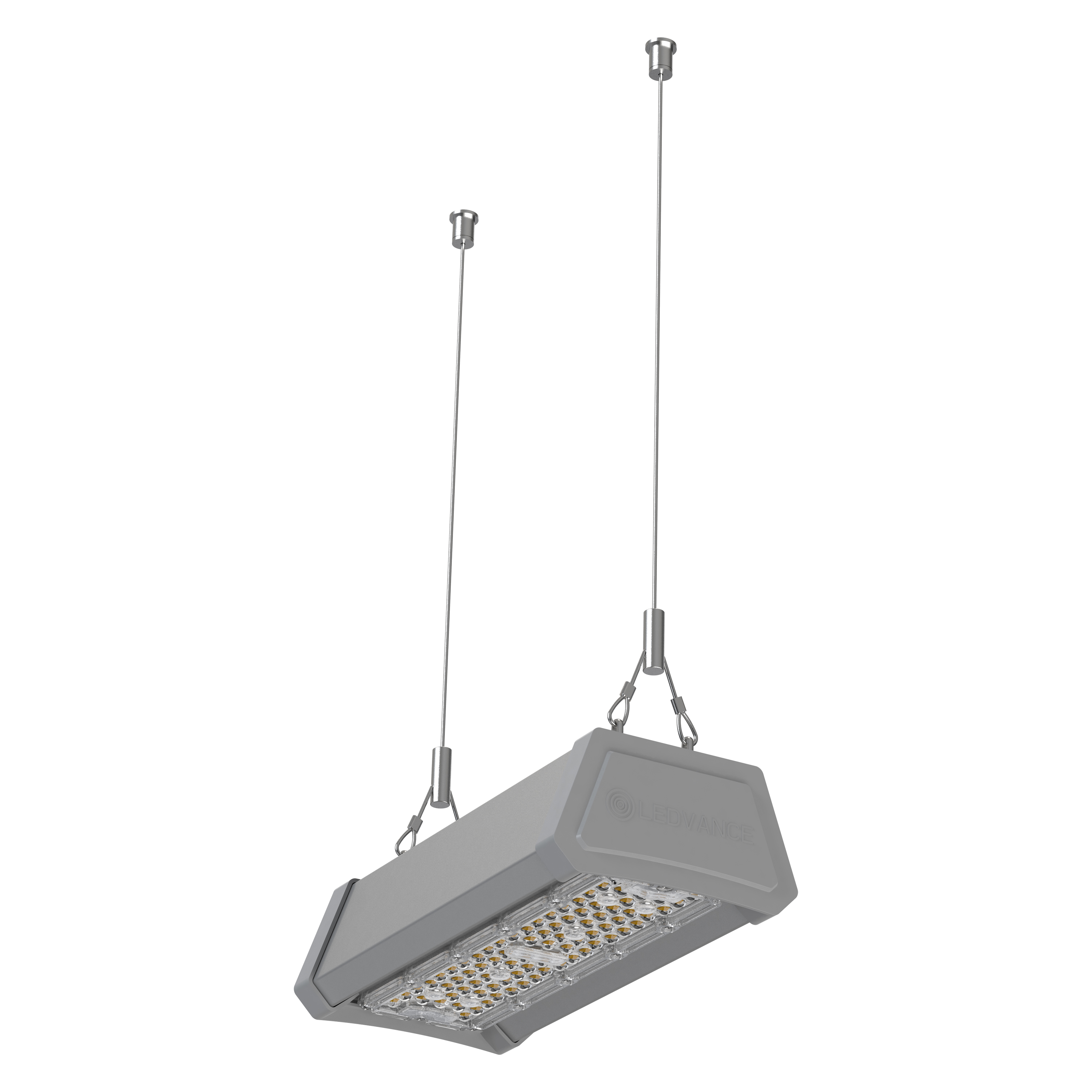

Product image: white background, diagonal
LDVAL LINEAR HB 50W JPG (956.56 KB)

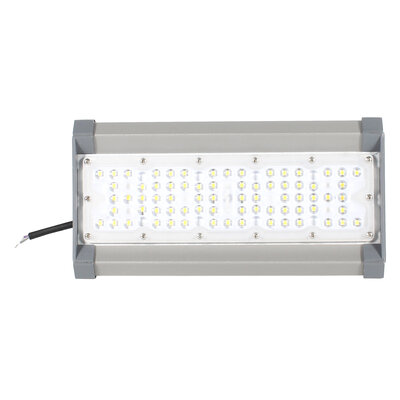

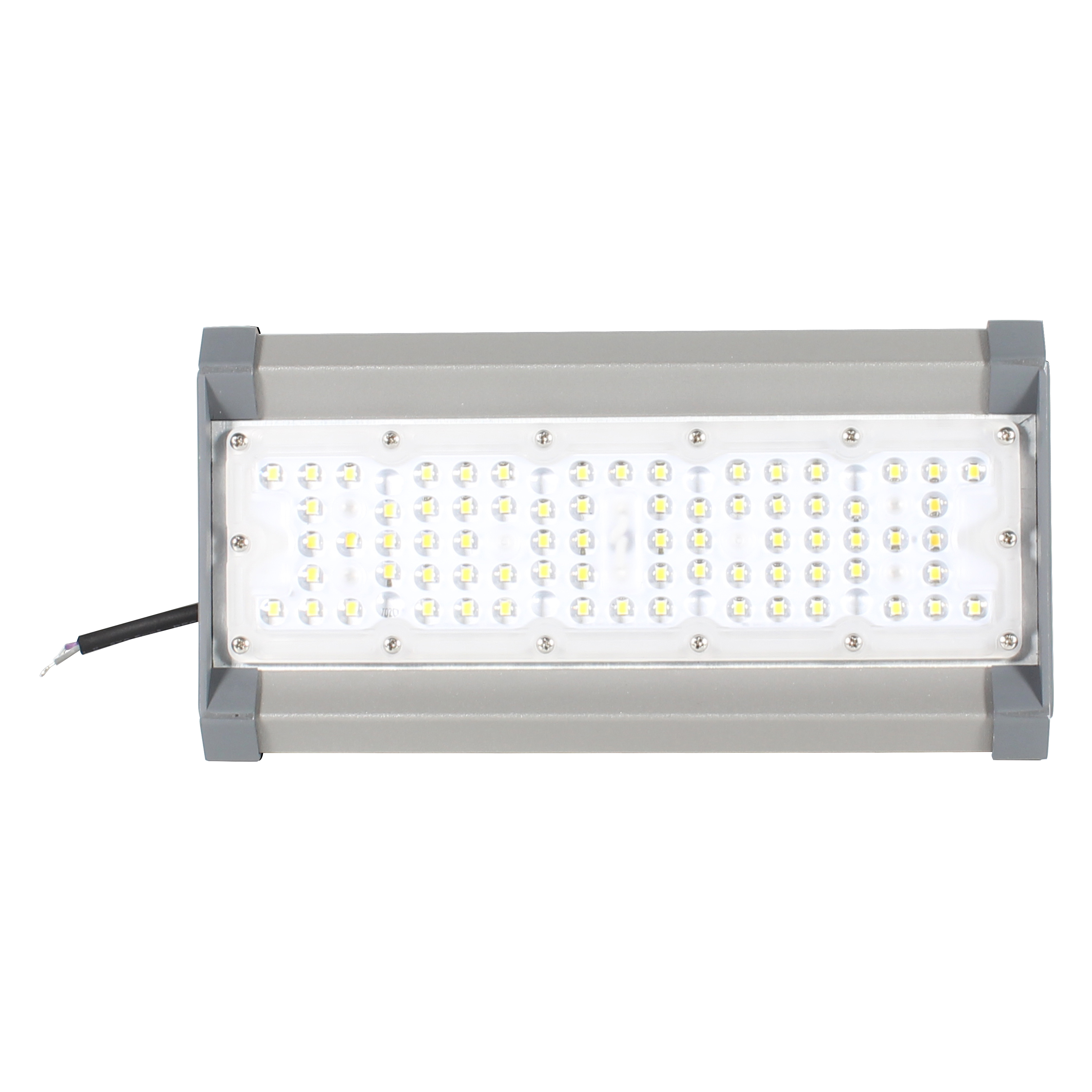

Product image: white background, diagonal, alternative image
LDVAL LINEAR HB 50W JPG (2.05 MB)

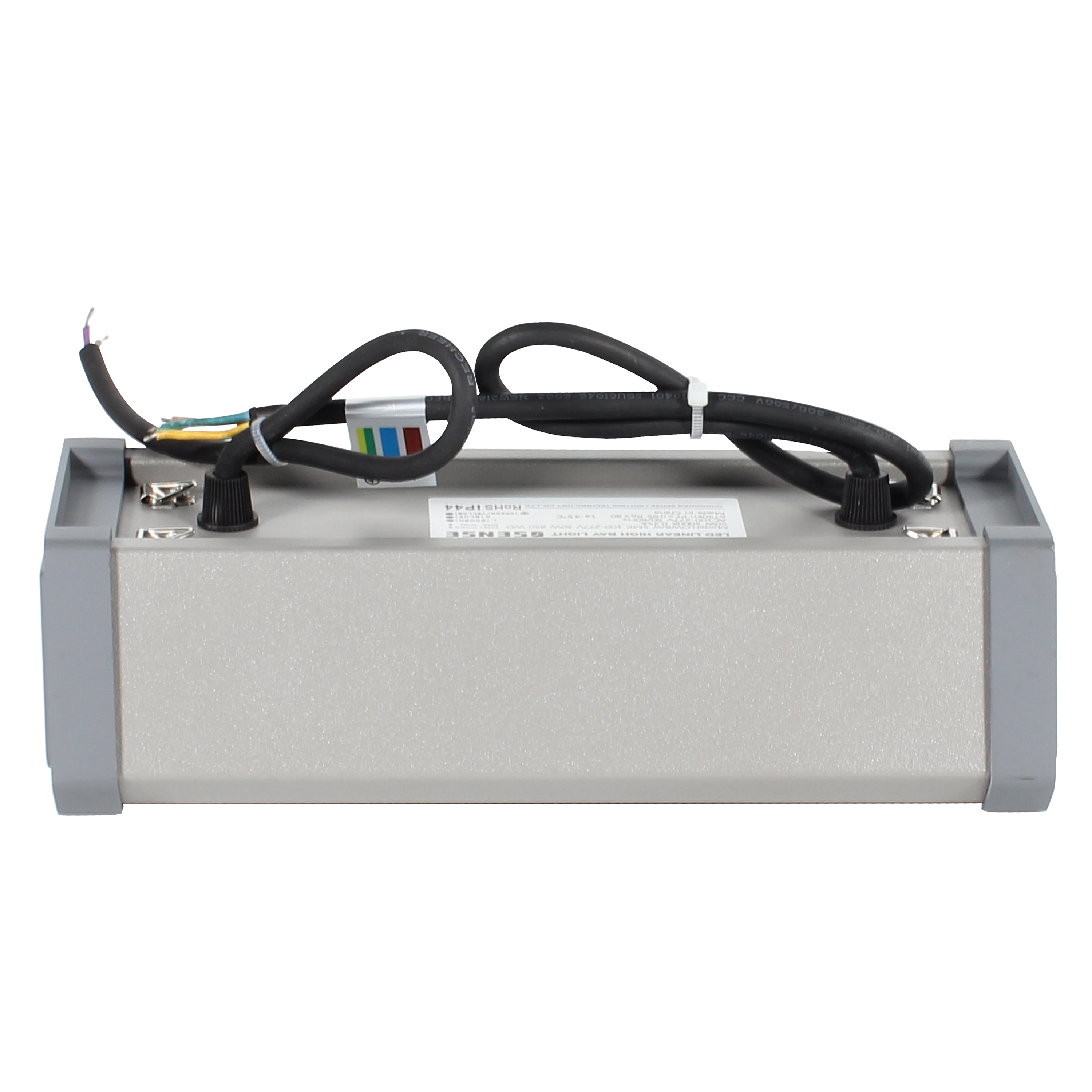

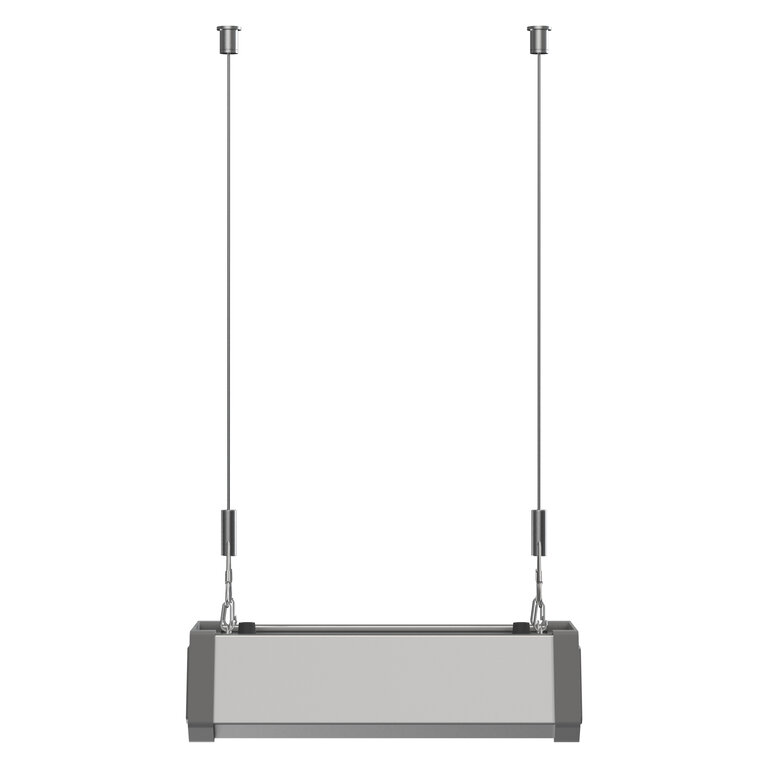

Product image: white background, upright, alternative image
LDVAL LINEAR HB 50W JPG (1.46 MB)
Product image: white background, spacial
LDVAL LINEAR HB 50W JPG (1.05 MB)

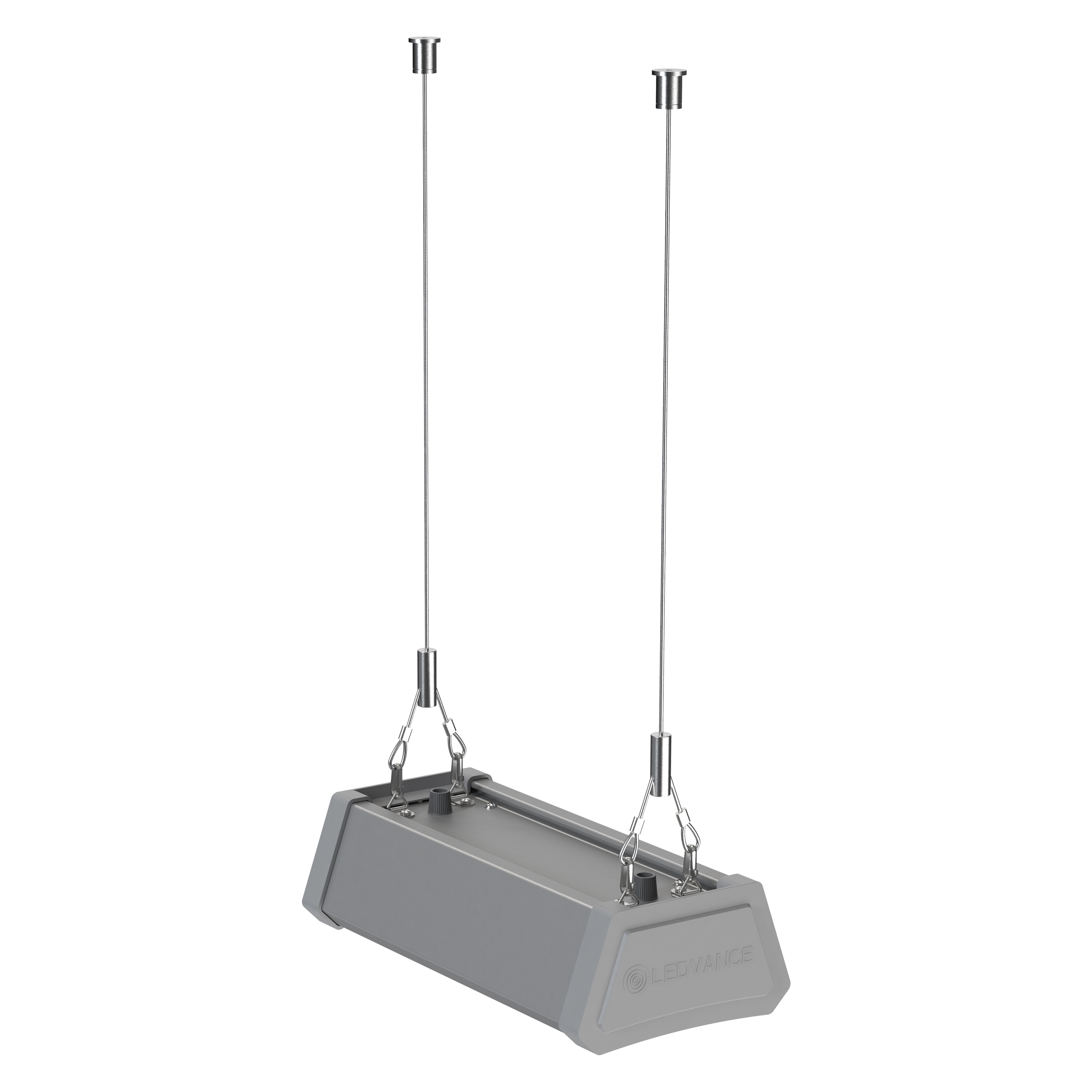

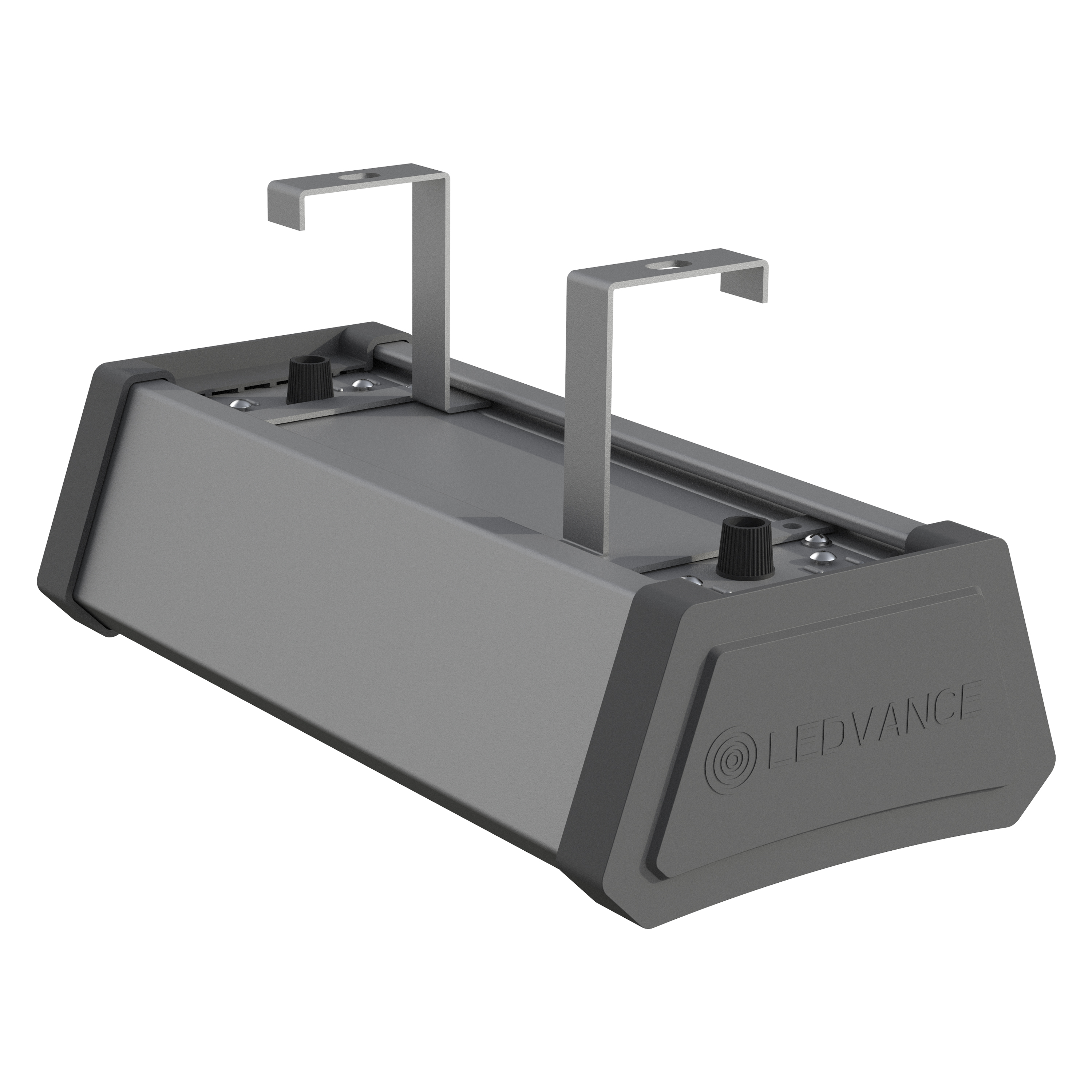

Product image: white background, with accessory, alternative image
LDVAL LINEAR HB 50W JPG (1.67 MB)

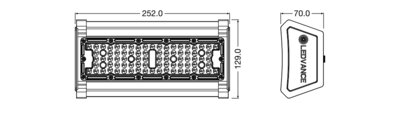

Product line drawing with numbers
LDVAL LINEAR HB 50W PNG (100.05 KB)
IES file (IES)
LDVAL LINEAR HB 50W 86 5 HRO FS1 IES (10.15 KB)
