FLOODLIGHT 200

Choose your product version

133W 20KLM 830 PS SY100 WT

133W 20KLM 830 PS SY100 BK

133W 20KLM 840 PS SY100 BK

133W 20KLM 840 PS SY100 WT

133W 20KLM 865 PS SY100 WT

133W 20KLM 865 PS SY100 BK

OVERVIEW

Product description Nominal wattage Beam angle Luminous flux Dimmable
FL 200 P 133W 20KLM 830 PS SY100 WT 133 W / 117 W 100 ° x 100 ° 18600 lm / 16275 lm No
FL 200 P 133W 20KLM 830 PS SY100 BK 133 W / 117 W 100 ° x 100 ° 18600 lm / 16275 lm No
FL 200 P 133W 20KLM 840 PS SY100 BK 133 W / 117 W 100 ° x 100 ° 20000 lm / 17500 lm No
FL 200 P 133W 20KLM 840 PS SY100 WT 133 W / 117 W 100 ° x 100 ° 20000 lm / 17500 lm No
FL 200 P 133W 20KLM 865 PS SY100 WT 133 W / 117 W 100 ° x 100 ° 20000 lm / 17500 lm No
FL 200 P 133W 20KLM 865 PS SY100 BK 133 W / 117 W 100 ° x 100 ° 20000 lm / 17500 lm No


FL 200 P 133W 20KLM 830 PS SY100 WT

Product benefits
  • Breather membrane to optimize air exchange, without compromising IP protection
  • Highly versatile due to selectable power steps (Multi Lumen) on the housing
  • Robust cable gland with integrated waterstop function
  • Safe and very uniform illumination, due to frosted and tempered glass diffuser
  • Bright, robust and durable
  • Energy savings of up to 90 % compared to halogen lamp floodlights
  • No upper light output ratio (ULOR 0%) when mounted at 0° tilt
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 133 W / 117 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 590/519 mA
Inrush current 34.6 A
Inrush current time Th50 552 µs
Max. number of luminaires per miniature circuit breaker B16 4
Max. number of luminaires per miniature circuit breaker C10 4
Max. number of luminaires per miniature circuit breaker C16 7
Power factor λ > 0.90
Total harmonic distortion < 20 %
Protection class I
Surge capability (L-N) 4 kV
Surge capability (L/N-Ground) 6 kV
Operating mode Integrated LED driver

Photometrical data

Luminous flux 18600 lm / 16275 lm
Luminous efficacy 140 lm/W
Color temperature 3000 K
Light color (designation) Warm White
Color rendering index Ra 80
Standard deviation of color matching 5 sdcm
Stroboscope effect metric (SVM) ≤0.9
Photobiological safety group acc. to EN62778 RG1
Photobiological safety group acc. to EN62471 RG1
Beam angle 100 ° x 100 °

Dimensions & Weight

Length 294.00 mm
Height 376.00 mm
Width 58.00 mm
Product weight 3476.00 g
Cable length 1000 mm

Materials & Colors

Product color White
Housing color White
Body material Aluminum
Cover material Glass
Light emitting surface material Glass
Glow Wire Test according to IEC 60695-2-12 650 °C
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -30…+50 °C
Temperature range at storage -40…+70 °C
Type of connection Cable, 3-pole
Type of protection IP66
Protection class IK (shock resistance) IK08
Corrosion resistance class acc. to EN 12944 C4
Dimmable No
Mounting type Surface
Mounting location Wall, Pole, Floor, Ceiling
Application environment Outdoor
Adjustable Yes
With light source Yes
Replaceable light source No

Lifespan

Lifespan L70/B50 at 25 °C 100000 h 1)
Lifespan L80/B10 at 25 °C 75000 h 1)
Lifespan L90/B10 at 25 °C 35000 h

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Control gear

Output current 630 mA
ECG - Output ripple current < 20 %

Certificates & Standards

Standards CE, CB, ENEC, EAC, UKCA, EPD
Luminaire with limited surface temperature, "D sign" Yes
Ball shot safe No
EPD LEDV-00030-V01.01-EN
Replaceable light source (EPREL) Not replaceable

Additional product data

Added function MULTI SELECT

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Additional info can be provided per individual request
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Breather membrane to optimize air exchange, without compromising IP protection
  • Highly versatile due to selectable power steps (Multi Lumen) on the housing
  • Robust cable gland with integrated waterstop function
  • Safe and very uniform illumination, due to frosted and tempered glass diffuser
  • Bright, robust and durable
  • Energy savings of up to 90 % compared to halogen lamp floodlights
  • No upper light output ratio (ULOR 0%) when mounted at 0° tilt
Areas of application
  • Replacement for floodlights with halogen lamps
  • Outdoor use (IP66)
  • D-sign according to EN 60598-2-24 for fire-risk commercial unit, e.g. by accumulation of dust
  • Public areas
  • Building facades
  • Construction areas
  • Parking
Product features
  • High luminous efficacy: up to 150 lm/W
  • Type of protection: IP66
  • Pre-installed, flexible 1 m cable (H05RN-F), wrapped 3 x 1.0 mm² single wires
  • Reflector-based, symmetric light distribution with 100° x 100° beam angle
  • Mounting bracket with 30° angle and wide rotation area
Safety advice
  • Max. wind load surface 0.085 m²
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854306389 Folding box
1		 75 mm x 324 mm x 417 mm 3776.00 g 10.13 dm³
4099854306396 Shipping box
2		 340 mm x 167 mm x 444 mm 8048.00 g 25.21 dm³
User instruction / safety instructions
G11193710_UI_Floodligh t_65W-200W PDF (3.27 MB)
Legal information
Insert_LSI_Floodlight_ 69W-167W_G11195968 PDF (2.09 MB)
Legal information
Informationstext 18 Ab s 4 ElektroG PDF (435.15 KB)
Legal information
Safety Insert G1120549 6 PDF (331.49 KB)
Legal information
Legal Insert FLOODLIGH T LUMS PDF (3.53 MB)
Declarations of conformity
FLOODLIGHT GEN4 PDF (240.2 KB)
EPD
EPD EN FLOODLIGHT GEN 4 MP PHOTOCELL PDF (674.15 KB)

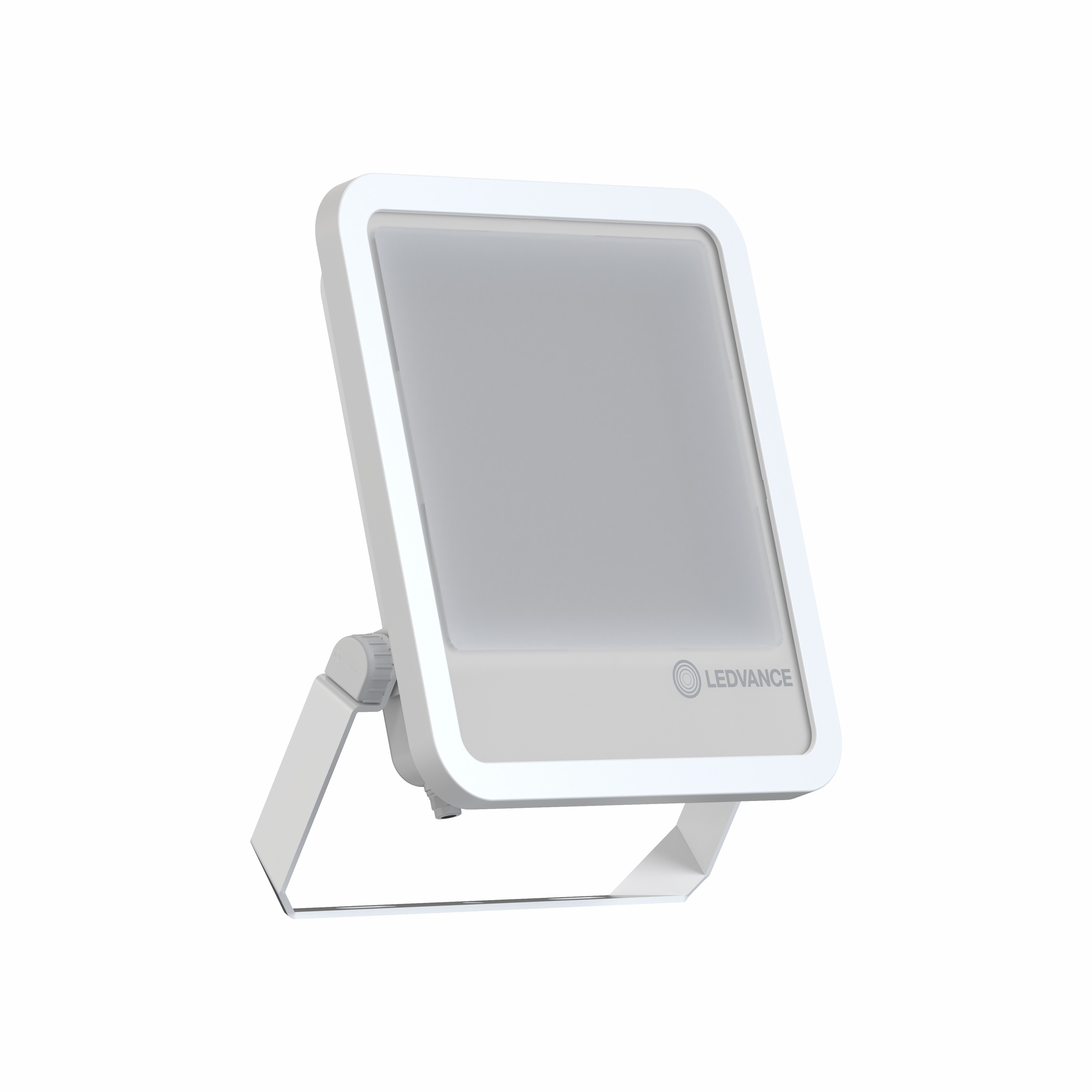

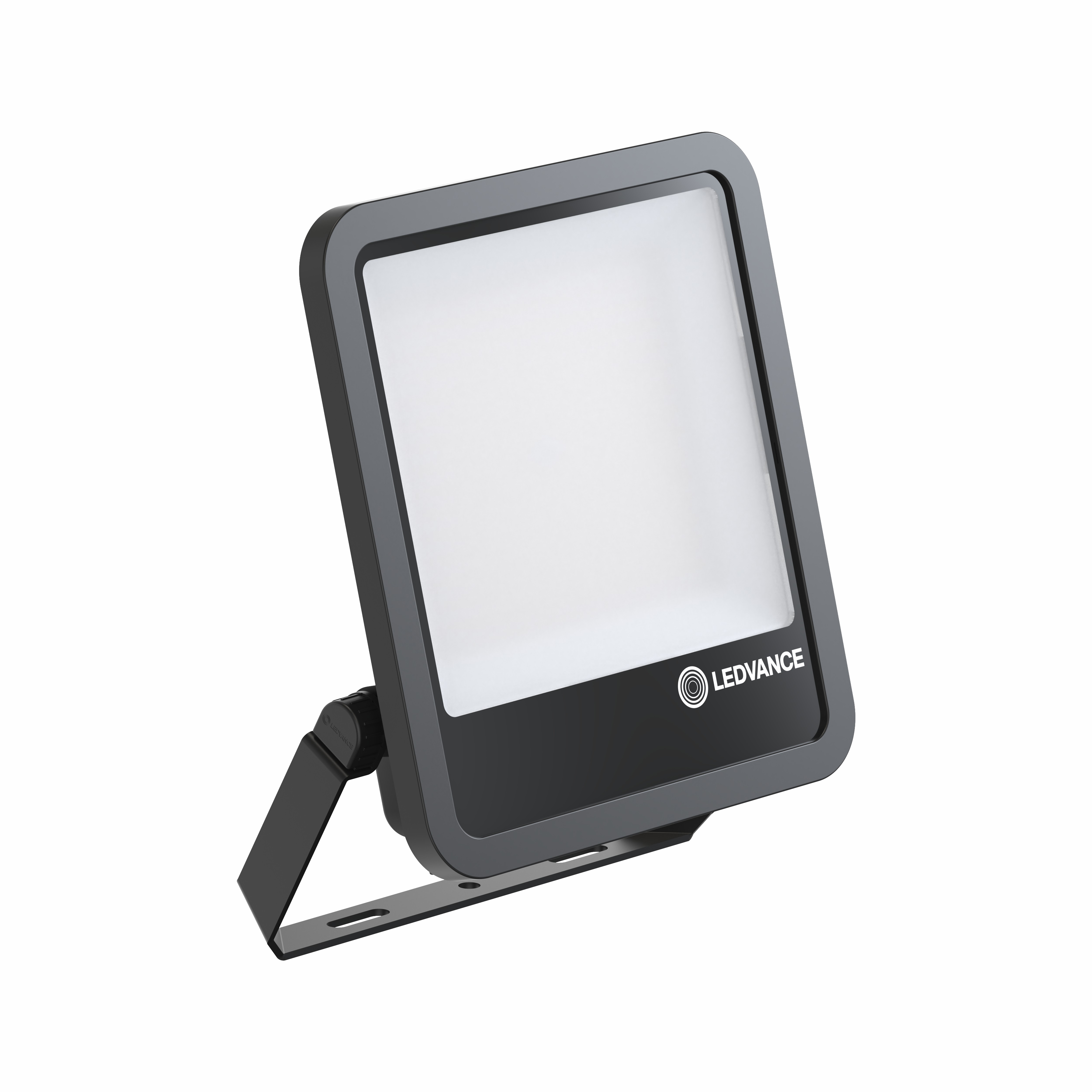

Product image: white background, diagonal
FL 200 P 133W 20KLM JPG (2.17 MB)

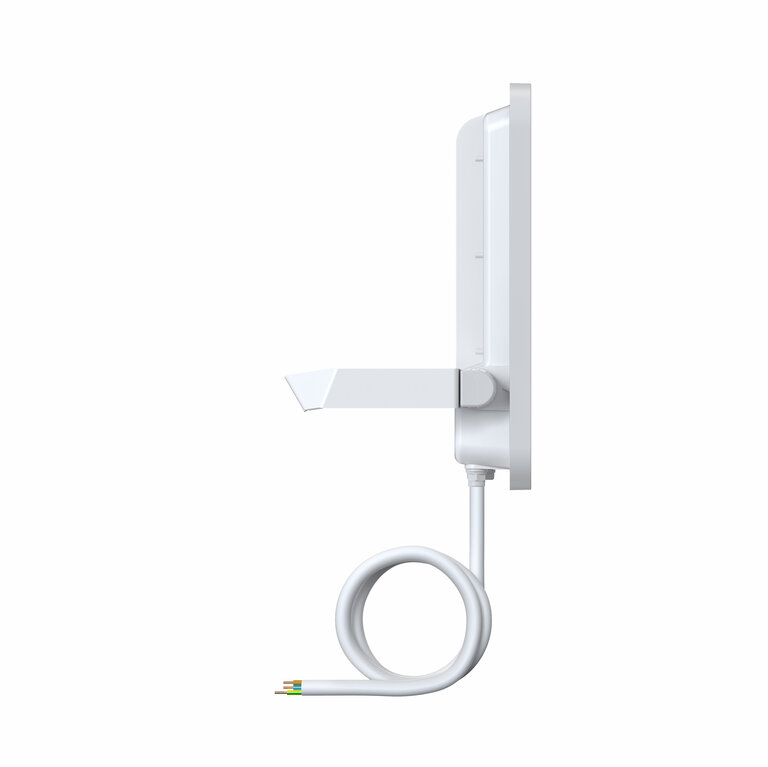

Product image: white background, upright
FL 200 P 133W 20KLM JPG (2.21 MB)
Product line drawing with letters
FL 200P SY100 SVG (77.39 KB)
Product line drawing with numbers
FL 200P SY100 SVG (74.41 KB)
Product line drawing, front, no dimensions
FL 200P SY100 SVG (74.76 KB)

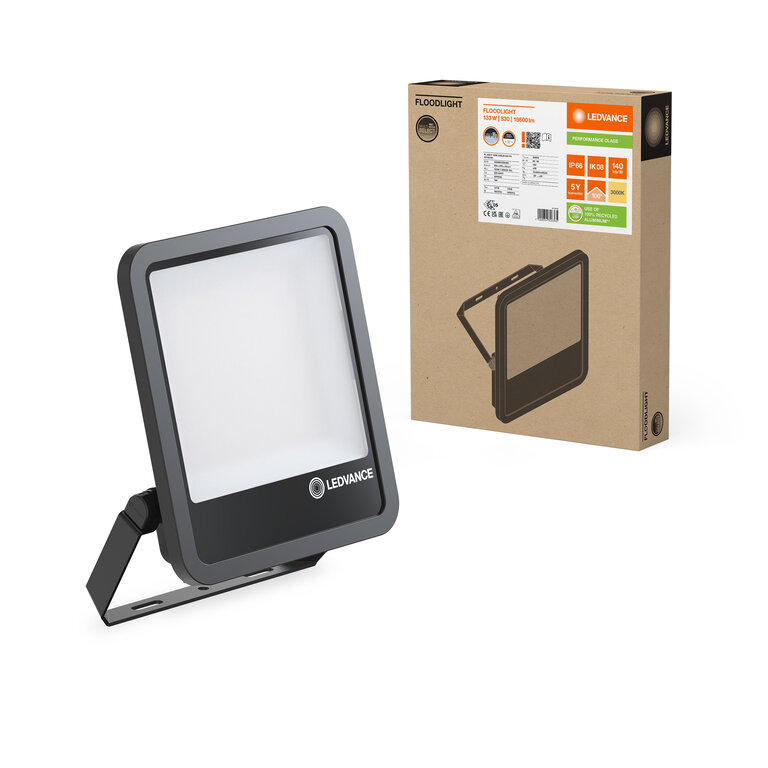

Combo Shot = Product Beauty Shot + Packaging Image
FL200 P 133W 830 20KLM PS SY100 WT JPG (1.22 MB)
Packaging image, frontal
FL200 P 133W 830 20KLM PS SY100 WT JPG (1.83 MB)
Packaging image, spacial
FL200 P 133W 830 20KLM PS SY100 WT JPG (1.77 MB)
Catalog info 1
FL 100/150/200/250 P P S SY100 PNG (74.8 KB)
Catalog info 2
FL 100/150/200/250 P P S SY100 PNG (28.05 KB)
Catalog info 3
FL 100/150/200/250 P P S SY100 PNG (33.38 KB)
Catalog info 5
FL 100/150/200/250 P P S SY100 PNG (54.39 KB)
IES file (IES)
FL 200 P 133W 20KLM 83 0 PS SY100 WT IES (1.78 KB)
LDT file (Eulumdat)
FL 200 P 133W 20KLM 83 0 PS SY100 WT LDT (1.67 KB)
ULD file (DIALux)
FL 200 P 133W 20KLM 83 0 PS SY100WT ULD (427.52 KB)
ROLF file (RELUX)
FL 200 P 133W 20KLM 83 0 PS SY100WT ROLF (419.33 KB)

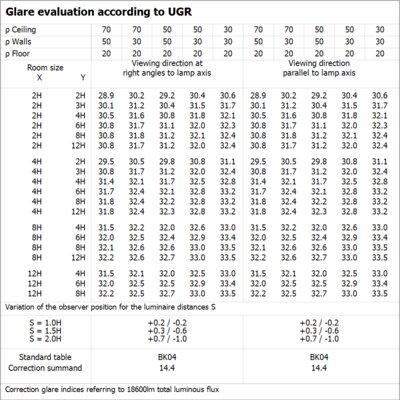

UGR file (UGR table)
FL 200 P 133W 20KLM 83 0 PS SY100 WT PNG (56.96 KB)
Light distribution curve type cone
FL 200 P 133W 20KLM 83 0 PS SY100 WT SVG (11.43 KB)
Light distribution curve type polar
FL 200 P 133W 20KLM 83 0 PS SY100 WT SVG (17.2 KB)
BIM Revit 3D
Floodlight G4 ZIP (6.23 MB)
CAD STEP 3D
FL G4 133W STEP (3.95 MB)
EAN SEG number STK number EFO number ELDAS number
4099854306389 7770327 4529945 3218825 941604030
