FLOODLIGHT PHOTOCELL 150

Choose your product version

100W 840 15KLM PS BK

OVERVIEW

Product description Nominal wattage Beam angle Luminous flux Dimmable
FL 150 PCELL P 100W 840 15KLM PS BK 100 W / 83 W 100 ° x 100 ° 15000 lm / 12500 lm No


FL 150 PCELL P 100W 840 15KLM PS BK

Product benefits
  • Automatically switches on and off according to the amount of available daylight
  • Always-on override, activated via special mains switching pattern
  • Breather membrane to optimize air exchange, without compromising IP protection
  • Highly versatile due to selectable power steps (Multi Lumen) on the housing
  • Robust cable gland with integrated waterstop function
  • Safe and very uniform illumination, due to frosted and tempered glass diffuser
  • Bright, robust and durable
  • No upper light output ratio (ULOR 0%) when mounted at 0° tilt
  • Energy savings of up to 90 % compared to halogen lamp floodlights
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 100 W / 83 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 443/368 mA
Inrush current 30 A
Inrush current time Th50 452 µs
Max. number of luminaires per miniature circuit breaker B16 5
Max. number of luminaires per miniature circuit breaker C10 6
Max. number of luminaires per miniature circuit breaker C16 9
Power factor λ > 0.90
Total harmonic distortion < 20 %
Protection class I
Surge capability (L-N) 4 kV
Surge capability (L/N-Ground) 6 kV
Operating mode Integrated LED driver

Photometrical data

Luminous flux 15000 lm / 12500 lm
Luminous efficacy 150 lm/W
Color temperature 4000 K
Light color (designation) Cool White
Color rendering index Ra 80
Standard deviation of color matching 5 sdcm
Stroboscope effect metric (SVM) ≤0.9
Photobiological safety group acc. to EN62778 RG1
Photobiological safety group acc. to EN62471 RG1
Beam angle 100 ° x 100 °

Dimensions & Weight

Length 266.00 mm
Height 343.00 mm
Width 55.00 mm
Product weight 2828.00 g
Cable length 1000 mm

Materials & Colors

Product color Black
Housing color Black
Body material Aluminum
Cover material Glass
Light emitting surface material Glass
Glow Wire Test according to IEC 60695-2-12 650 °C
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -30…+50 °C
Temperature range at storage -40…+70 °C
Type of connection Cable, 3-pole
Type of protection IP66
Protection class IK (shock resistance) IK08
Corrosion resistance class acc. to EN 12944 C4
Dimmable No
Mounting type Surface
Mounting location Wall, Pole, Floor
Application environment Outdoor
Adjustable Yes
With light source Yes
Replaceable light source No

Lifespan

Lifespan L70/B50 at 25 °C 100000 h 1)
Lifespan L80/B10 at 25 °C 75000 h 1)
Lifespan L90/B10 at 25 °C 35000 h

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Control gear

Output current 480 mA
ECG - Output ripple current < 20 %

Sensor

Type of sensor Light
Sensor technology Photocell
Detection threshold of daylight sensor 35…95 lx
Sensor IP rating IP66

Certificates & Standards

Standards CE, CB, ENEC, EAC, UKCA, EPD
Luminaire with limited surface temperature, "D sign" Yes
Ball shot safe No
EPD LEDV-00030-V01.01-EN
Replaceable light source (EPREL) Not replaceable

Additional product data

Added function MULTI SELECT

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Automatically switches on and off according to the amount of available daylight
  • Always-on override, activated via special mains switching pattern
  • Breather membrane to optimize air exchange, without compromising IP protection
  • Highly versatile due to selectable power steps (Multi Lumen) on the housing
  • Robust cable gland with integrated waterstop function
  • Safe and very uniform illumination, due to frosted and tempered glass diffuser
  • Bright, robust and durable
  • No upper light output ratio (ULOR 0%) when mounted at 0° tilt
  • Energy savings of up to 90 % compared to halogen lamp floodlights
Areas of application
  • Replacement for floodlights with halogen lamps
  • Outdoor use (IP66)
  • D-sign according to EN 60598-2-24 for fire-risk commercial unit, e.g. by accumulation of dust
  • Public areas
  • Building facades
  • Construction areas
  • Parking
Product features
  • Daylight sensor, integrated in glass cover
  • Switch on below 35 lux, switch off above 95 lux illuminance
  • High luminous efficacy: up to 150 lm/W
  • Type of protection: IP66
  • Pre-installed, flexible 1 m cable (H05RN-F), wrapped 3 x 1.0 mm² single wires
  • Reflector-based, symmetric light distribution with 100° x 100° beam angle
  • Mounting bracket with 30° angle and wide rotation area
  • Integrated voltage driver, suitable for 220 - 240 V AC
Safety advice
  • Max. wind load surface 0.070 m²
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854307003 Folding box
1		 72 mm x 285 mm x 370 mm 3009.00 g 7.59 dm³
4099854307010 Shipping box
3		 301 mm x 234 mm x 397 mm 9565.00 g 27.96 dm³
User instruction / safety instructions
G11193709_UI_Floodligh t_Photocell PDF (3.28 MB)
Legal information
Insert_LSI_Floodlight_ Sensor_Photocell_G1119 5969 PDF (1.9 MB)
Legal information
Informationstext 18 Ab s 4 ElektroG PDF (435.15 KB)
Legal information
Safety Insert G1120549 6 PDF (331.49 KB)
Legal information
Legal Insert FLOODLIGH T LUMS PDF (3.53 MB)
Declarations of conformity
FLOODLIGHT GEN4 PDF (240.2 KB)
EPD
EPD EN FLOODLIGHT GEN 4 MP PHOTOCELL PDF (674.15 KB)

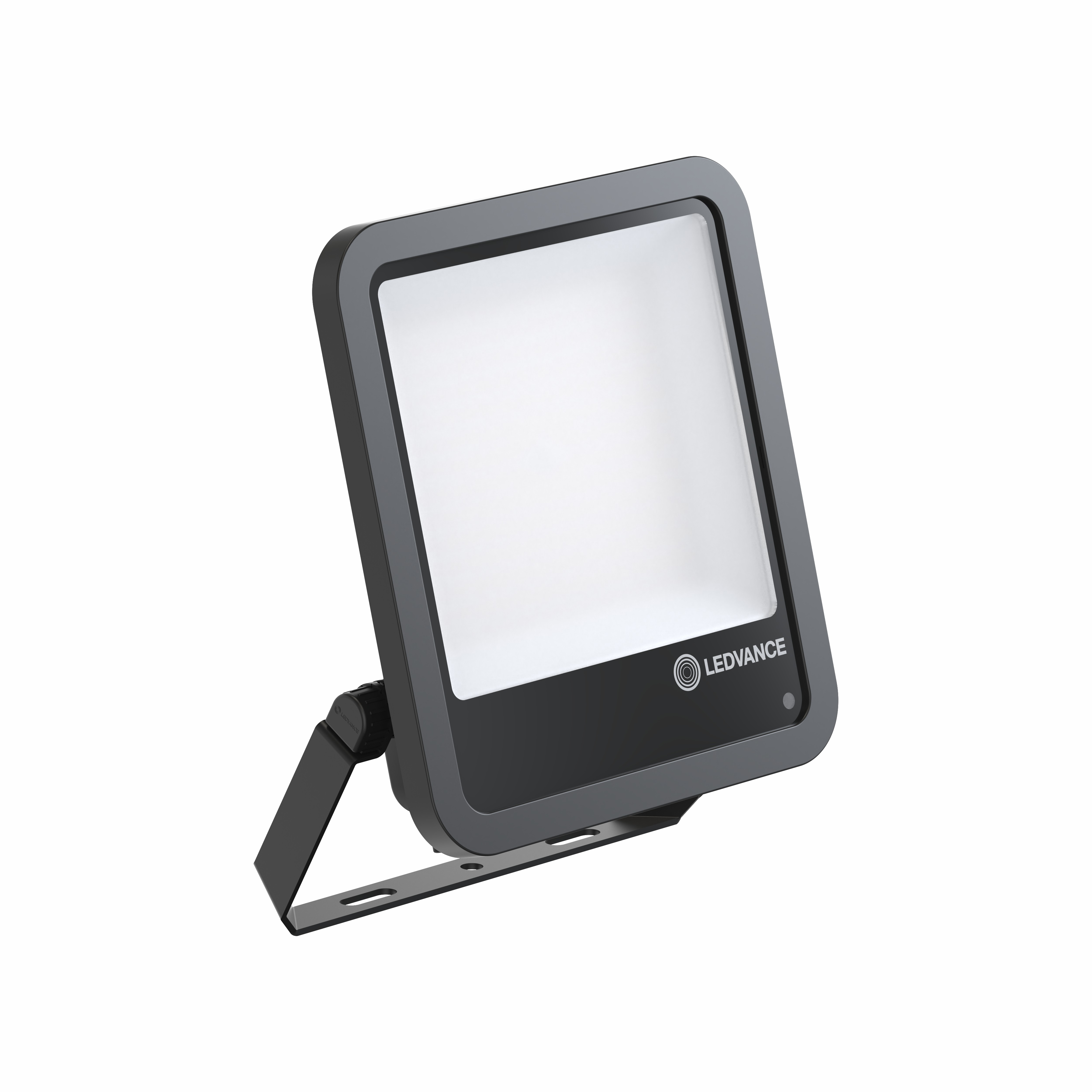

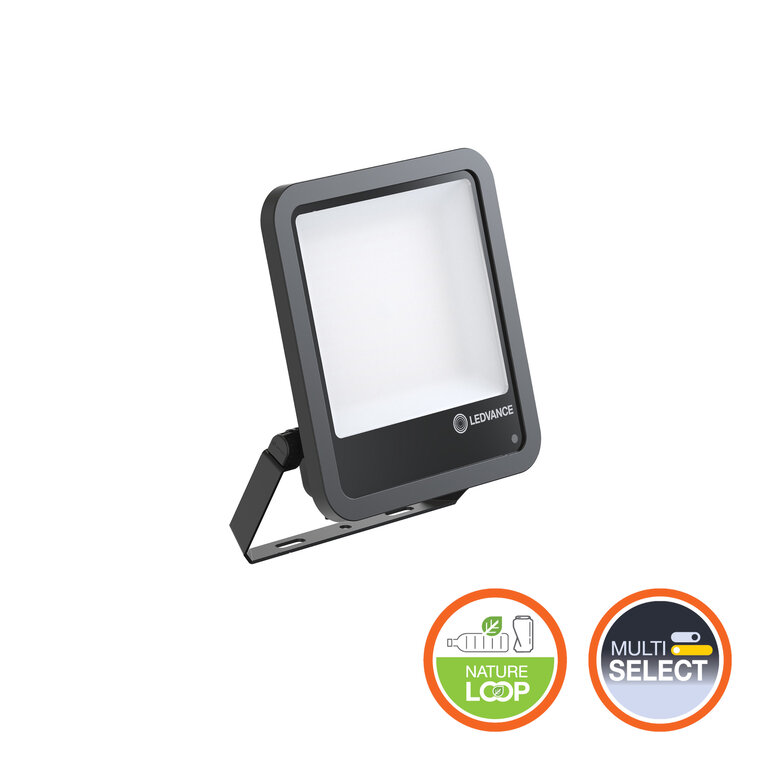

Product image: white background, diagonal
FL 150 PCELL P 100W JPG (2.3 MB)

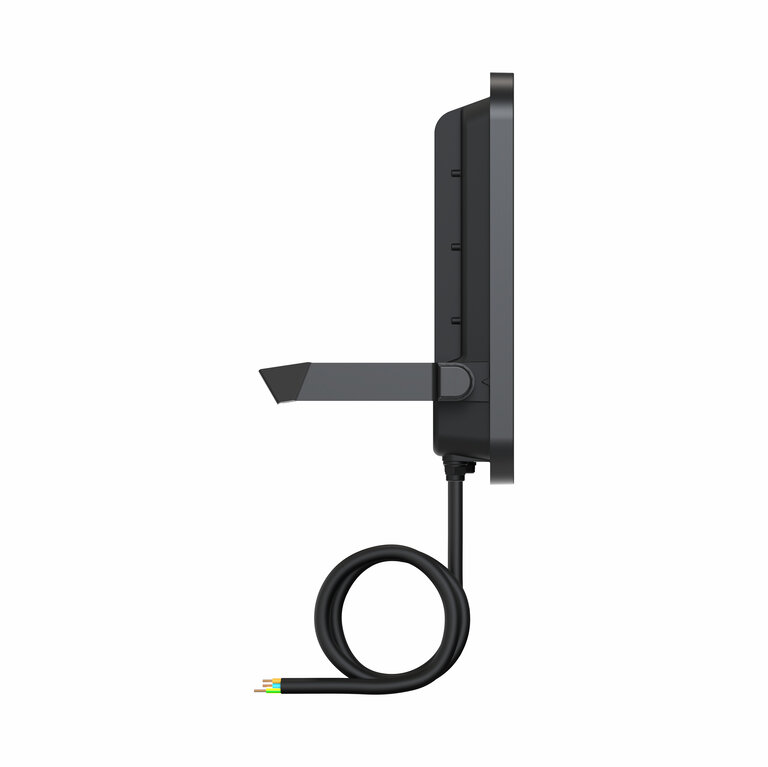

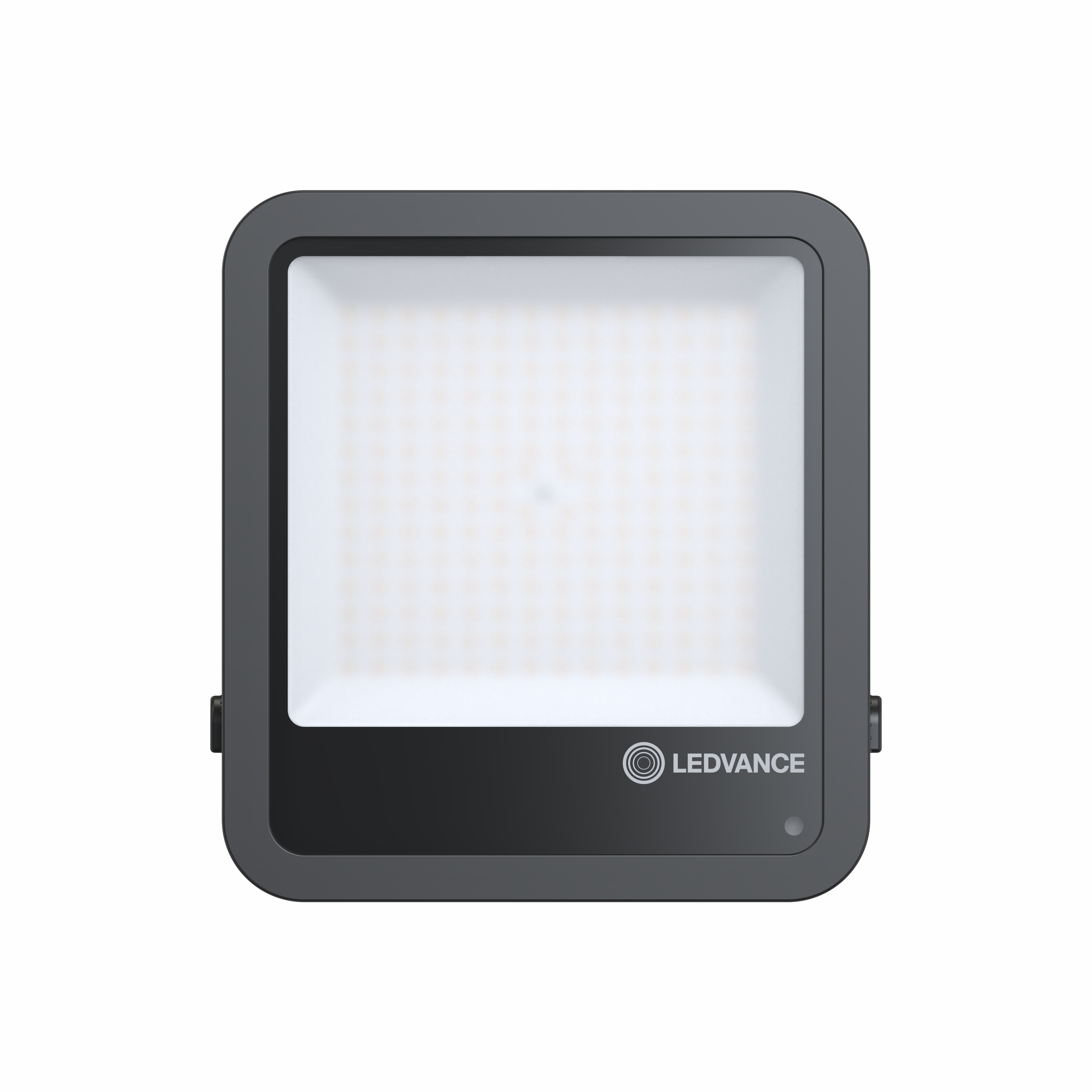

Product image: white background, upright
FL 150 PCELL P 100W JPG (2.43 MB)
Product line drawing with letters
FL 150 PCELL 15KLM SVG (68.21 KB)
Product line drawing with numbers
FL 150 PCELL 15KLM SVG (75.45 KB)
Product line drawing - technical
FL 150 PCELL 15KLM SVG (64.61 KB)
Combo Shot = Product Beauty Shot + Packaging Image
FL150 PCLL P 100W 840 15KLM PS BK JPG (1.3 MB)
Packaging image, frontal
FL150 PCLL P 100W 840 15KLM PS BK JPG (1.87 MB)
Packaging image, spacial
FL150 PCLL P 100W 840 15KLM PS BK JPG (1.78 MB)
Catalog info 1
FL 100/150/200 PCELL P 840 PS BK PNG (64.56 KB)
Catalog info 2
FL 100/150/200 PCELL P 840 PS BK PNG (20.03 KB)
IES file (IES)
FL 150 PCELL P 100W 84 0 15KLM PS BK IES (1.78 KB)
LDT file (Eulumdat)
FL 150 PCELL P 100W 84 0 15KLM PS BK LDT (1.67 KB)
ULD file (DIALux)
FL 150 PCELL P 100W 84 0 15KLM PSBK ULD (499.2 KB)
ROLF file (RELUX)
FL 150 PCELL P 100W 84 0 15KLM PSBK ROLF (502.95 KB)

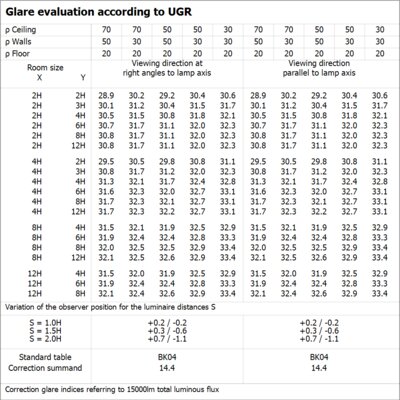

UGR file (UGR table)
FL 150 PCELL P 100W 84 0 15KLM PS BK PNG (56.46 KB)
Light distribution curve type cone
FL 150 PCELL P 100W 84 0 15KLM PS BK SVG (11.43 KB)
Light distribution curve type polar
FL 150 PCELL P 100W 84 0 15KLM PS BK SVG (17.2 KB)
BIM Revit 3D
Floodlight G4 ZIP (6.23 MB)
CAD STEP 3D
FL G4 100W STEP (4.49 MB)
EAN SEG number STK number EFO number ELDAS number
4099854307003 7770351 4529969 3218849 941603880
