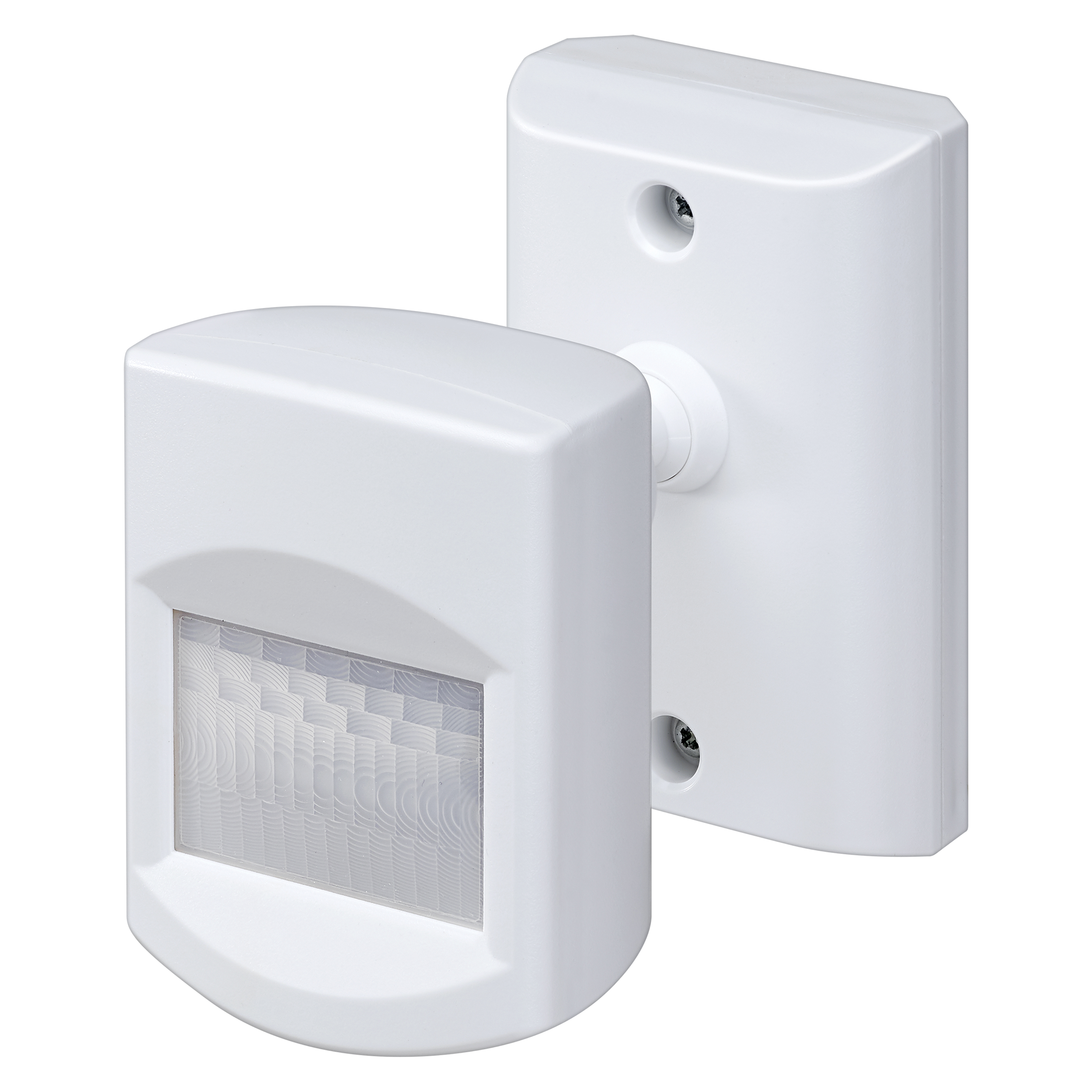

LED VALUE PIR Motion Sensor - Wall Mounted

Choose your product version



MS-SV INF-WS-AD-120 230V-IP65-C

Product benefits

PRODUCT DETAILS

Electrical data

Nominal voltage 220…240 V
Mains frequency 50…60 Hz

Dimensions & Weight

Length 80.00 mm
Width 110.00 mm
Height 160.00 mm
Product weight 200.00 g

Colors & materials

Product color White

Temperatures & operating conditions

Ambient temperature range -20…+45 °C

Capabilities

Dimmable No

Certificates & Standards

Protection class II
Type of protection IP65

LOGISTICAL DATA

Temperature range at storage -35…+55 °C

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Areas of application
  • Suitable for indoor and sheltered outdoor areas
  • Offices
  • Corridors
  • Stairways
  • Residential interiors
  • Commercial buildings
Product features
  • 180° motion sensor (passive infrared technology)
  • Wall surface mounting
  • Timer function
  • Adjustable illuminance from 10 lx to 2000 lx via dip switch
  • Photocell detector available for daylight detection
  • Input voltage: 220…240 VAC
  • Operating frequency: 50/60 Hz
  • Ambient temperature in operation: -20…+45 °C
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075396623 Folding box
1
127 mm x 87 mm x 207 mm 245.00 g 2.29 dm³
4058075396630 Shipping box
10
447 mm x 266 mm x 227 mm 2976.00 g 26.99 dm³
