Choose your product version
| Product description |
|---|

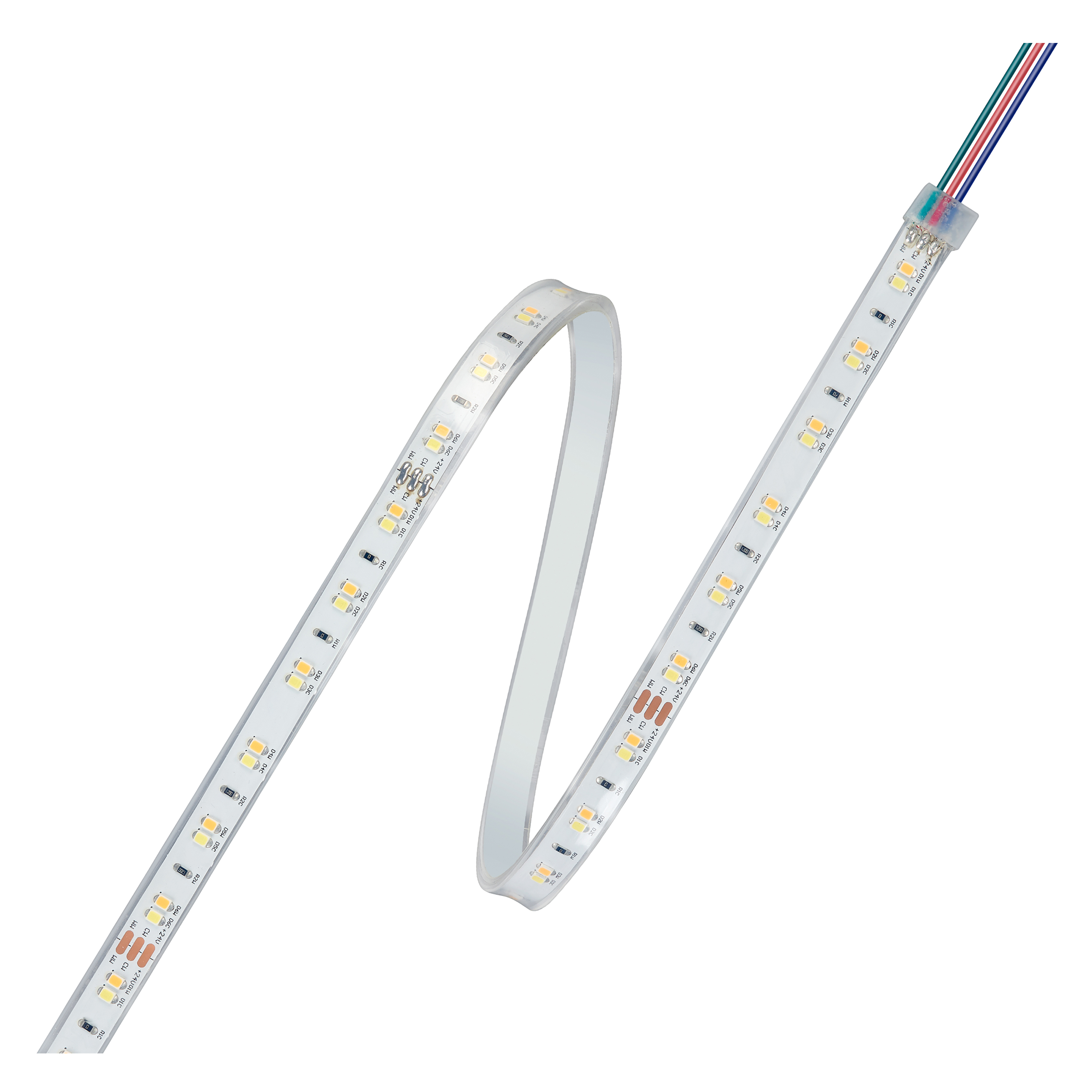

| LM-SV 800-TW-DC-P 48W 24V IP65 |

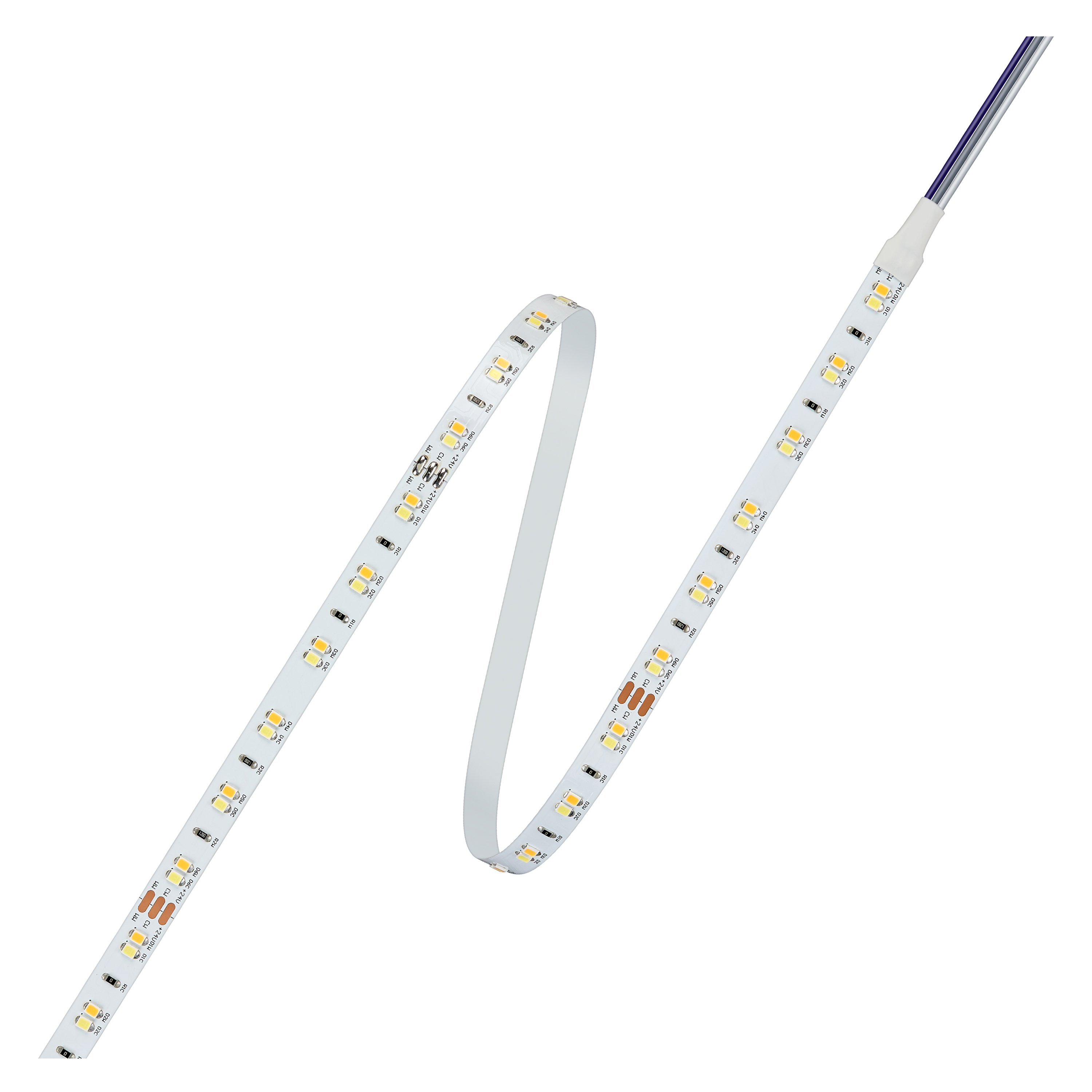

| LM-SV 800-TW-DC 48W 24V IP20 |
| Nominal wattage | 48.00 W |
| Construction wattage | 48.00 W |
| Nominal wattage per meter | 9,6 W |
| Nominal voltage | 24 V |
| Type of current | DC |
| Luminous efficacy | 95…100 lm/W |
| Luminous flux per meter | 800 lm |
| Color temperature | 2700…6500 K |
| Color rendering index Ra | 80 |
| Light color (designation) | Tunable White |
| Standard deviation of color matching | ≤4 sdcm |
| Beam angle | 120 ° |
| Number of LEDs per meter | 96 |
| Length | 5030.00 mm |
| Length – smallest unit | 125,0 mm |
| Width | 10.00 mm |
| Height | 4.00 mm |
| Product weight | 470.00 g |
| Ambient temperature range | -20…+45 °C |
| Maximum temperature at tc test point | 75 °C |
| Nominal lamp life time | 40000 h |
| Number of switching cycles | 100000 |
| Dimmable | Yes |
| Lowest bending radius | 30 mm |
| Self-adhesive | Yes |
| Type of protection | IP65 |
| Temperature range at storage | -20…+80 °C |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075360075 | BAG 1 |
507.00 g | ||
| 4058075360082 | Shipping box 10 |
219 mm x 209 mm x 225 mm | 5241.00 g | 10.30 dm³ |
| 4058075360099 | Shipping box 40 |
456 mm x 436 mm x 255 mm | 21863.00 g | 50.70 dm³ |
| Product image | Product name | EAN |
|---|---|---|
|
MS-CV-DIM RF 12/24 V TW | 4058075359802 |
|
MS-CV-DIM RF 12/24 V TW RM | 4058075359840 |
