Choose your product version
| Nominal wattage | 200.00 W |
| Nominal voltage | 220…240 V |
| Nominal output voltage | 200…285 V |
| Nominal output current | 700 mA |
| Output current tolerance | +/- 5 % |
| Output ripple current (100 Hz) | ≤ 5 % |
| Mains frequency | 50…60 Hz |
| Total harmonic distortion | < 10 % 1) |
| Power factor λ | > 0.95 1) |
| ECG efficiency | ≧94.5 % 1) |
| Surge capability (L/N-Ground) | 6 kV |
| Surge capability (L-N) | 6 kV |
1) At full load

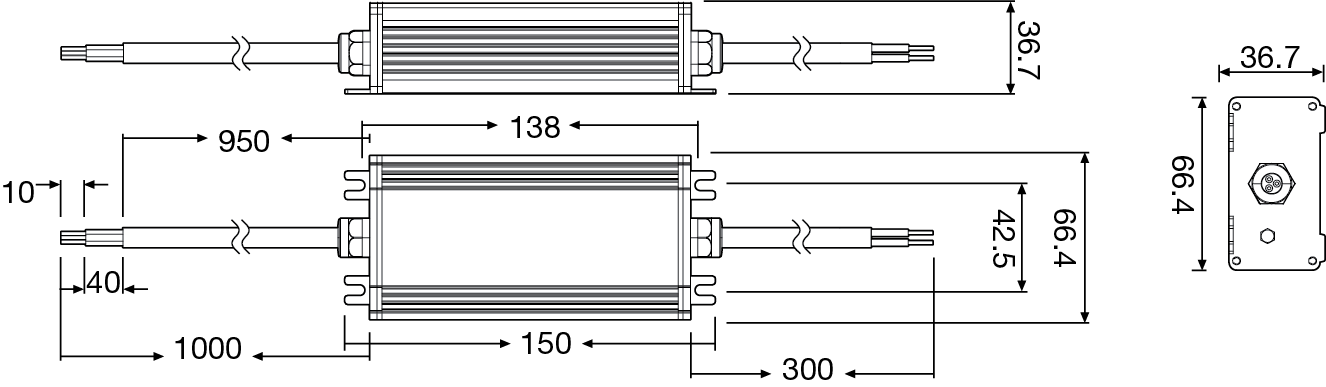

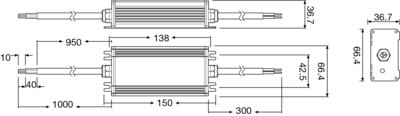

| Length | 150.00 mm |
| Width | 66.40 mm |
| Height | 36.70 mm |
| Cable cross-section, input side | 3*1.0 mm² |
| Cable cross-section, output side | 2*1.0 mm² |
| Product weight | 630.00 g |
| Ambient temperature range | -40…+55 °C |
| Maximum temperature at tc test point | 90 °C |
| ECG lifetime | 50000 h |
| Dimmable | No |
| Overheating protection | Yes |
| Overload protection | Yes |
| Short-circuit protection | Yes |
| Approval marks – approval | CB, KC |
| Protection class | I |
| Type of protection | IP67 |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854050077 | Unpacked 1 |
671.00 g | ||
| 4099854050084 | Shipping box 16 |
430 mm x 250 mm x 190 mm | 11556.00 g | 20.43 dm³ |
