LED TUBE T8 EM

Choose your product version

1200 mm 18W

1500 mm 23W

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Claimed equiv. conventional lamp power Beam angle Dimmable
LED TUBE T8 EM CHIP CONTROL S 1200 mm 18W G13 18 W 220…240 V 50000 h 2000 lm 36 W 190 ° No
LED TUBE T8 EM CHIP CONTROL S 1500 mm 23W G13 23 W 220…240 V 50000 h 2500 lm 58 W 190 ° No


LED TUBE T8 EM CHIP CONTROL S 1200 mm 18W

Product benefits
  • Excellent UV filter
  • Very high resistance to switching loads
  • Quick, simple and safe replacement without rewiring
  • Energy savings of up to 62 % (compared to T8 fluorescent lamp)
  • Instant-on light, therefore ideally suitable in combination with sensor technology
  • Also suitable for operation at low temperatures
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 18 W
Construction wattage 18.00 W
Nominal voltage 220…240 V
Operating mode CCG, AC Mains
Nominal current 85 mA
Type of current AC
Inrush current 8.56 A
Suitable for DC input Yes
Input voltage DC 186…260 V
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Max. lamp number on MCB B10 A 4
Max. lamp number on MCB B10 A - CCG without compensation 53
Max. lamp number on MCB B10 A - CCG with compensation 2
Max. lamp number on MCB B16 A 7
Max. lamp number on MCB B16 A - CCG without compensation 85
Max. lamp number on MCB B16 A - CCG with compensation 4
Total harmonic distortion 7 %
Power factor λ 0.90

Photometrical data

Luminous flux 2000 lm
Luminous efficacy 111 lm/W
Lumen main.fact.at end of nom.life time 0.96
Light color (designation) Yellow
Color temperature 2000 K
Color rendering index Ra 35
Light color 320
Standard deviation of color matching ≤5 sdcm
Rated LLMF at 6,000 h 0.80
Flickering metric (Pst LM) 1
Stroboscope effect metric (SVM) 0.4

Light technical data

Beam angle 190 °
Warm-up time (60 %) ‹ 0.50 s
Starting time < 0.5 s

Dimensions & Weight

Overall length 1212.00 mm
Length with base excl. base pins/connection 1200.00 mm
Diameter 26.70 mm
Tube diameter 25.80 mm
Maximum diameter 27 mm
Product weight 260.00 g

Temperatures & operating conditions

Ambient temperature range -20…+45 °C 1)
Maximum temperature at tc test point 65 °C

1) Temperature surrounding the lamp - for enclosed luminaires: temperature inside of the luminaire

Lifespan

Lifespan L70/B50 at 25 °C 50000 h
Number of switching cycles 200000
Lumen maintenance at end of service lifetime 0.96
Rated lamp survival factor at 6,000 h ≥ 0.90

Additional product data

Base (standard designation) G13
Mercury content 0.0 mg
Mercury-free Yes

Capabilities

Dimmable No

Certificates & Standards

Energy consumption 18.00 kWh/1000h
Type of protection IP20
Standards CE, UKCA, VDE, ENEC, EAC
Photobiological safety group acc. to EN62778 RG0

Country-specific categorizations

Order reference LEDTUBE T8 EM C

LOGISTICAL DATA

Temperature range at storage -20…+80 °C

Energy labelling regulation data acc EU 2019/2015

Lighting technology used LED
Non-directional or directional NDLS
Mains or non-mains MLS
Light source cap-type (or other electric interface) G13
Connected light source (CLS) No
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Standby power 0 W
Claim of equivalent power No
Length 1212.00 mm
Height 26.70 mm
Width 26.70 mm
Chromaticity coordinate y 0.4482
R9 Colour rendering index 0.00
Beam angle correspondence SPHERE_360
Survival factor 0.9
Displacement factor 0.9
LED light source replaces a fluorescent light source No

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Excellent UV filter
  • Very high resistance to switching loads
  • Quick, simple and safe replacement without rewiring
  • Energy savings of up to 62 % (compared to T8 fluorescent lamp)
  • Instant-on light, therefore ideally suitable in combination with sensor technology
  • Also suitable for operation at low temperatures
Areas of application
  • Micro chip and semiconductor production
  • Applications where UV and blue light percentage have to be reduced to a minimum
  • Industry
Product features
  • LED replacement for classic T8 fluorescent lamps with G13 socket for use in CCG luminaires or on AC mains
  • Excellent filter performance below 500 nm
  • Low flicker according to EU 2019-2020 (SVM ≤ 0.4 / PstLM ≤ 1)
  • ENEC 10 VDE mark
  • Lifetime up to 50,000 h
  • Type of protection: IP20
  • Mercury-free and RoHS compliant
Equipment / Accessories
  • Replacement starter for LED tubes
Legal advice
  • When used to replace a T8 fluorescent lamp the total energy efficiency and light distribution depends on the design of the lighting system.
Safety advice
  • Not suitable for operation with electronic control gear.
  • Operation in outdoor applications in suitable damp-proof luminaires possible according to data sheet and installation instruction.
  • Not suitable for emergency lighting.
  • Disconnect mains before installation.
References / Links
  • For current information see www.ledvance.com/ledtube
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854271472 Sleeve
1		 1,255 mm x 29 mm x 29 mm 289.00 g 1.06 dm³
4099854271489 Shipping box
10		 1,290 mm x 170 mm x 95 mm 3511.00 g 20.83 dm³

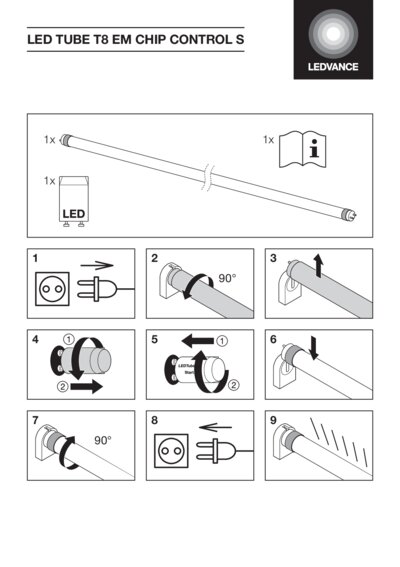

User instruction / safety instructions
LEDTUBE T8 EM CHIP S PDF (3.17 MB)
Legal information
Informationstext 18 Ab s 4 ElektroG PDF (435.15 KB)

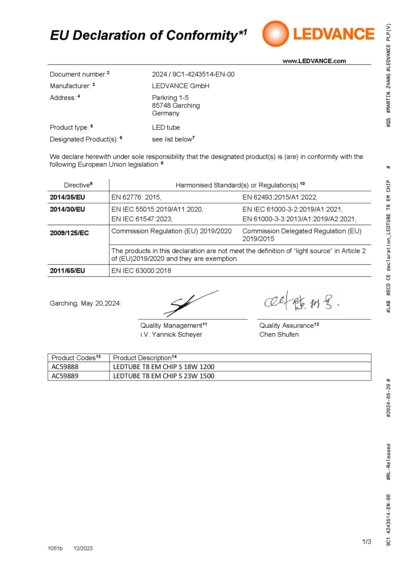

Declarations of conformity
LED tube PDF (341.65 KB)

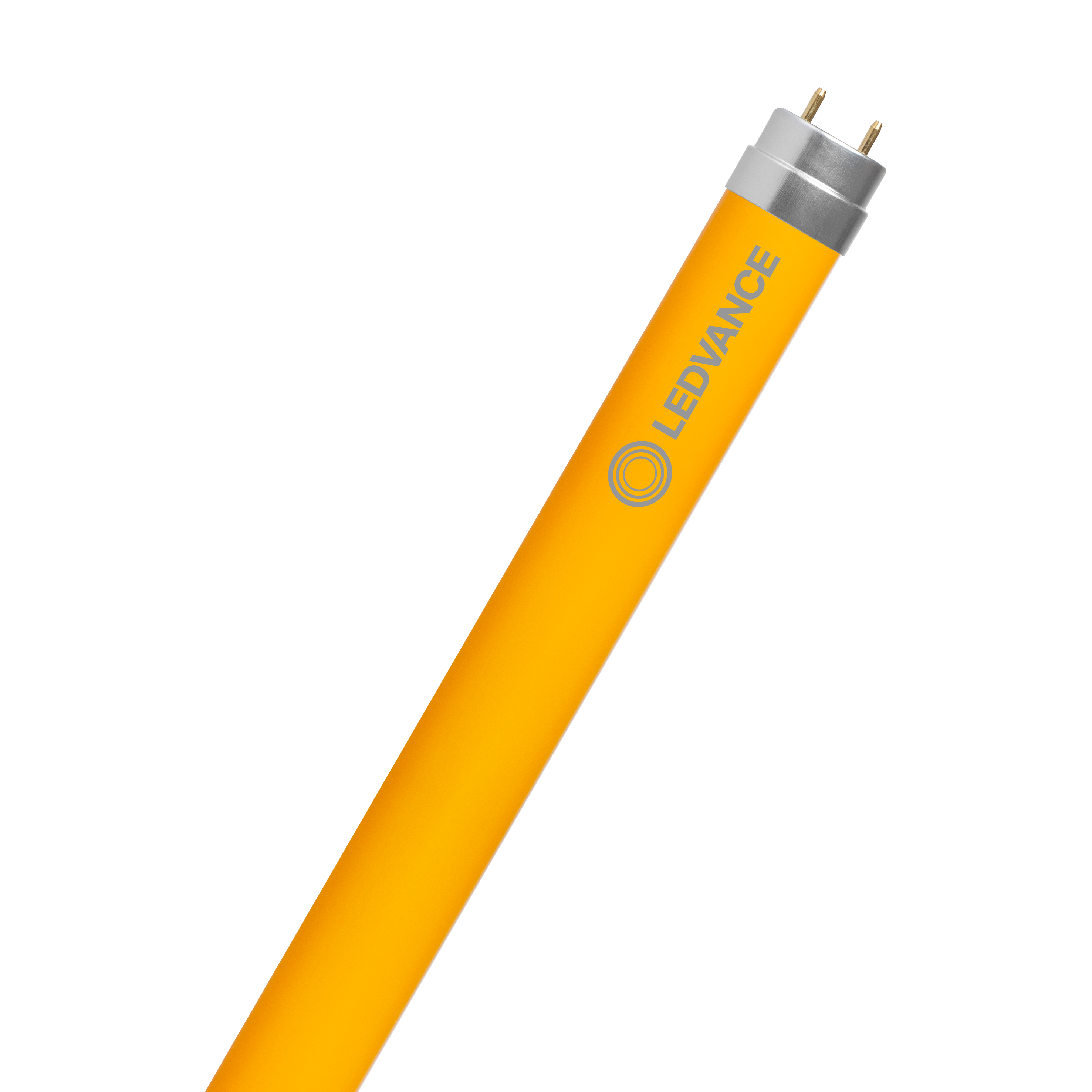

Product image: white background, diagonal with LEDVANCE logo
LEDTUBE T8 EM CHIP S JPG (1.21 MB)

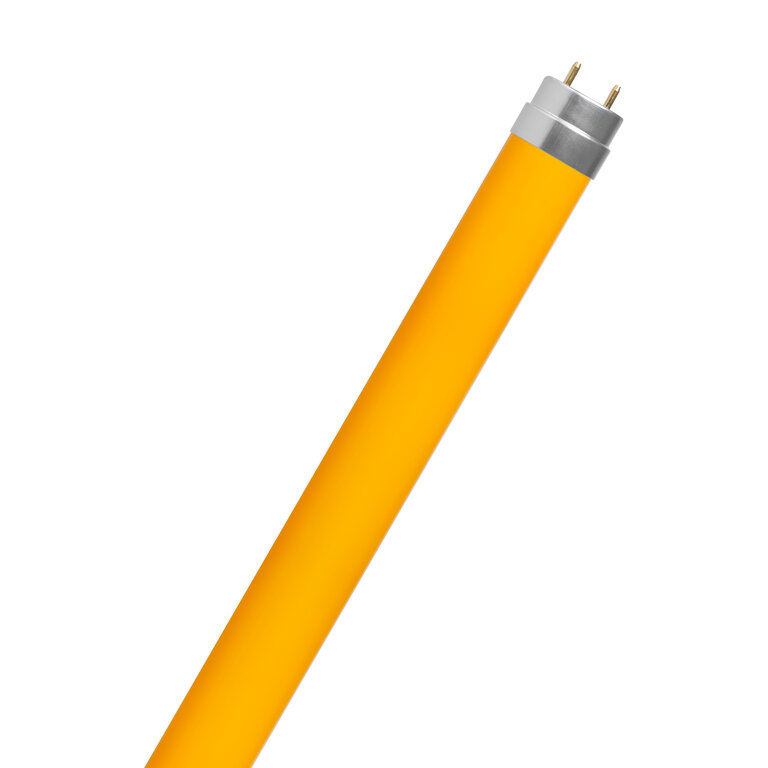

Product image: white background, diagonal
LEDTUBE T8 EM CHIP S JPG (1.15 MB)

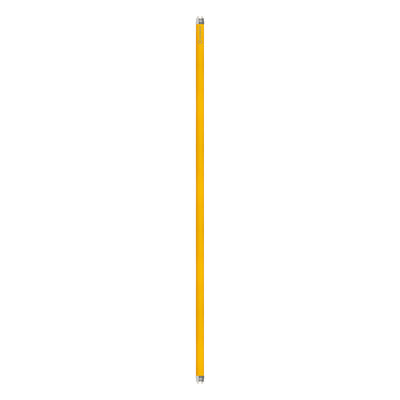

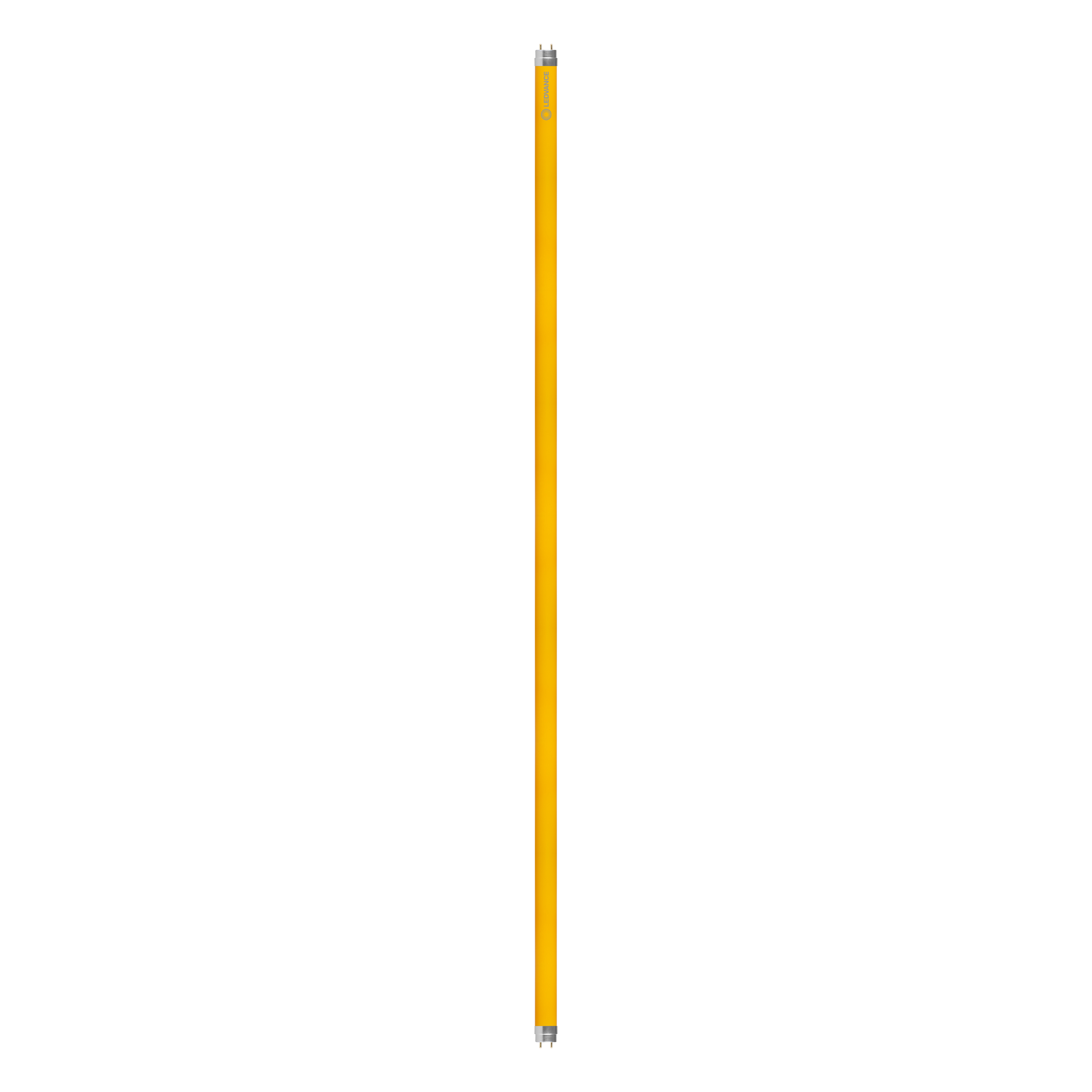

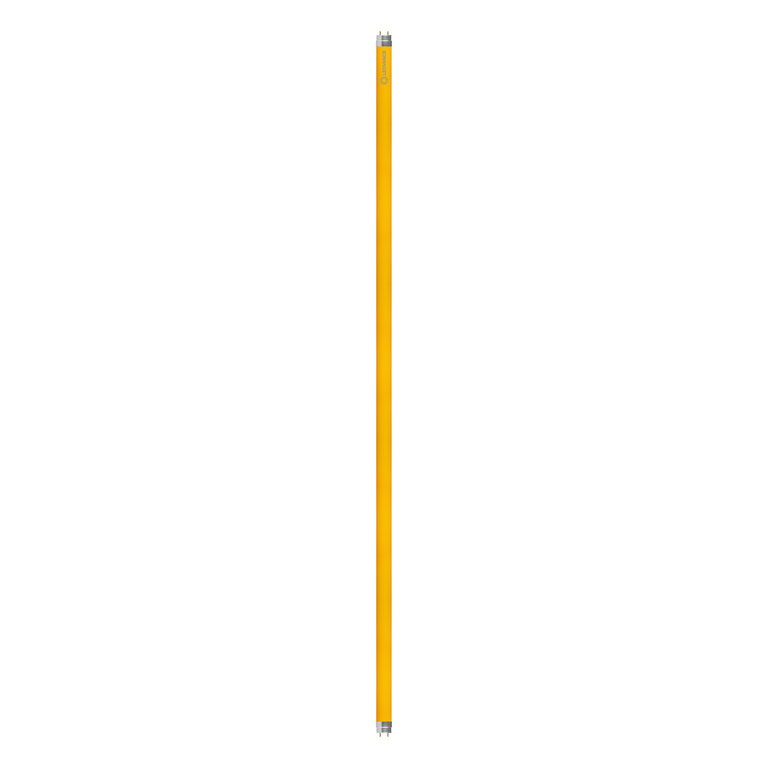

Product image: white background, upright LEDVANCE logo
LEDTUBE T8 EM CHIP S JPG (683.01 KB)

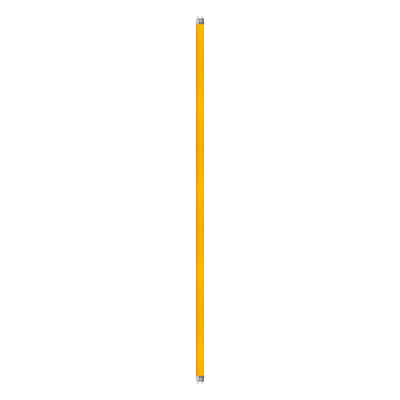

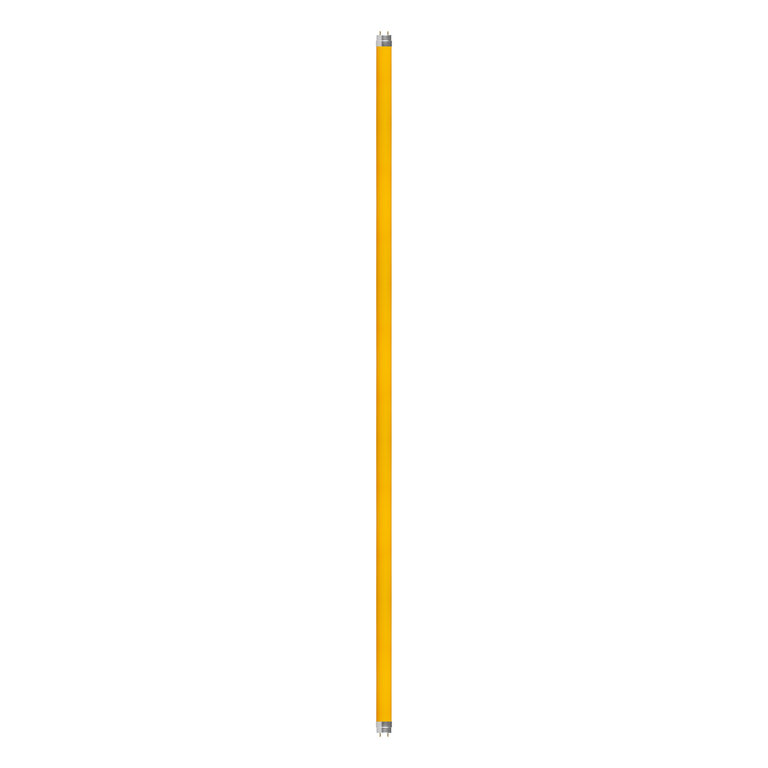

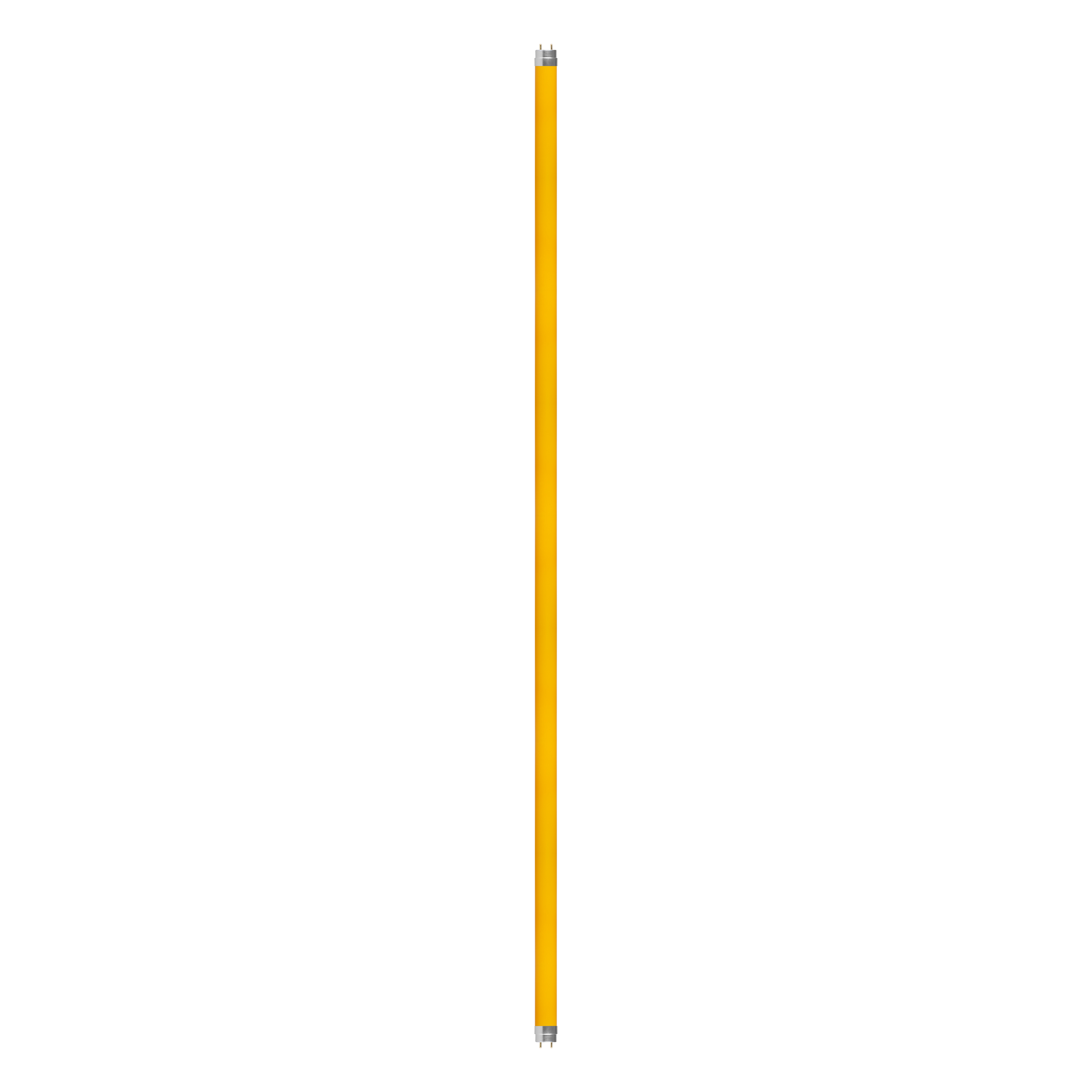

Product image: white background, upright
LEDTUBE T8 EM CHIP S JPG (677.41 KB)
Product line drawing with letters
LEDTUBE T8 EM SVG (9.49 KB)
Product line drawing with numbers
LEDTUBE T8 EM 1200 SVG (15.42 KB)
Product line drawing - technical
638401_Technical drawi ng TC point LED TUBE T 8 EM SVG (22 KB)

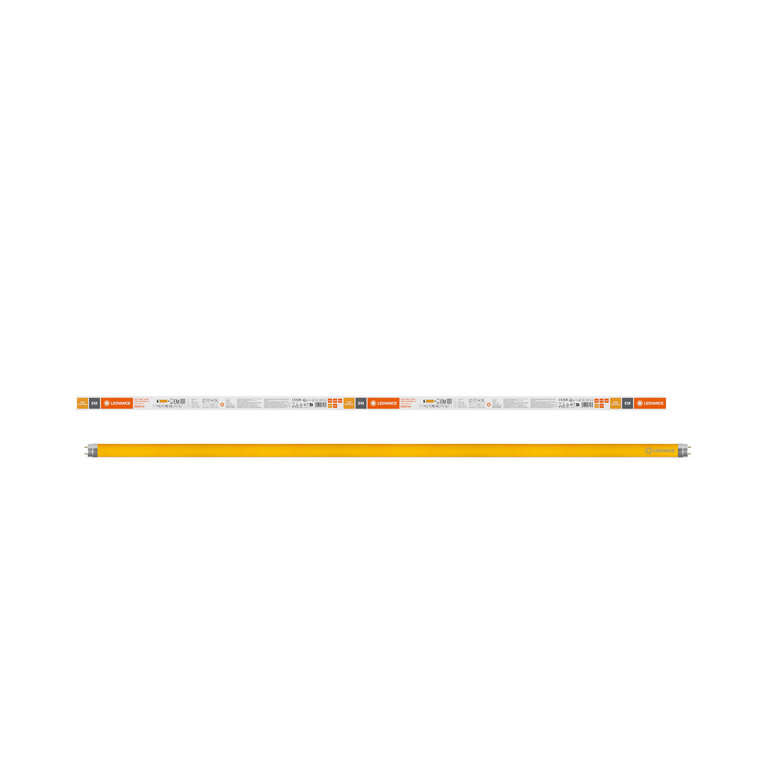

Combo Shot = Product Beauty Shot + Packaging Image
LEDTUBE T8 EM CHIP S 1 200 18W 827 G13 JPG (406.73 KB)

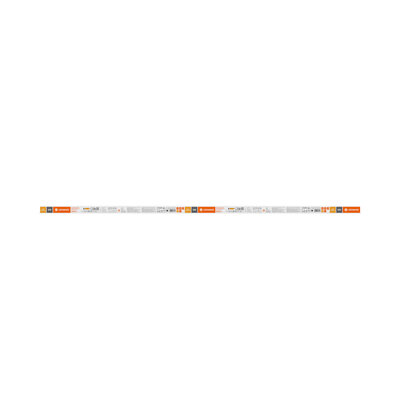

Packaging image, frontal
LEDTUBE T8 EM CHIP S 1 200 18W 827 G13 JPG (378.45 KB)

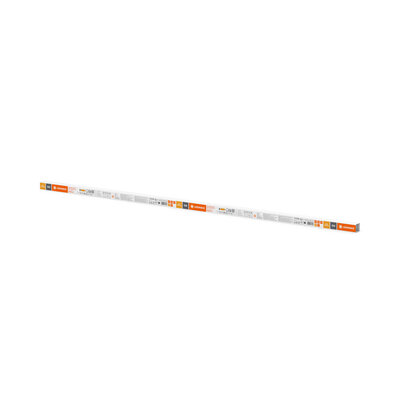

Packaging image, spacial
LEDTUBE T8 EM CHIP S 1 200 18W 827 G13 JPG (388.42 KB)
IES file (IES)
LEDTUBE T8 EM CHIP S 1 8W 1200 IES (8.84 KB)
LDT file (Eulumdat)
LEDTUBE T8 EM CHIP S 1 8W 1200 LDT (7.11 KB)

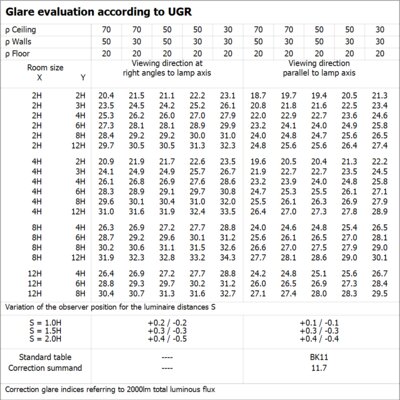

UGR file (UGR table)
LEDTUBE T8 EM CHIP S 1 8W 1200 PNG (63.69 KB)
Light distribution curve type polar
LEDTUBE T8 EM CHIP S 1 8W 1200 SVG (20.38 KB)
EAN SEG number STK number ELDAS number
4099854271472 8299597 4935290 941821630
