HQL LED PRO

Choose your product version

1800 lm 16 W/2700 K E27

2000 lm 16 W/4000 K E27

2700 lm 23 W/2700 K E27

3000 lm 23 W/4000 K E27

3600 lm 30 W/2700 K E27

4000 lm 30 W/4000 K E27

5400 lm 46 W/2700 K E27

5400 lm 46 W/2700 K E40

6000 lm 46 W/4000 K E27

6000 lm 46 W/4000 K E40

11700 lm 95 W/2700 K E40

13000 lm 95 W/4000 K E40

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Claimed equiv. conventional lamp power Beam angle Dimmable
HQL LED 1800 lm 16 W/2700 K E27 E27 16 W 220…240 V 50000 h 1800 lm 50 W 360 ° No
HQL LED 2000 lm 16 W/4000 K E27 E27 16 W 220…240 V 50000 h 2000 lm 50 W 360 ° No
HQL LED 2700 lm 23 W/2700 K E27 E27 23 W 220…240 V 50000 h 2700 lm 50 W 360 ° No
HQL LED 3000 lm 23 W/4000 K E27 E27 23 W 220…240 V 50000 h 3000 lm 50 W 360 ° No
HQL LED 3600 lm 30 W/2700 K E27 E27 30 W 220…240 V 50000 h 3600 lm 80 W 360 ° No
HQL LED 4000 lm 30 W/4000 K E27 E27 30 W 220…240 V 50000 h 4000 lm 80 W 360 ° No
HQL LED 5400 lm 46 W/2700 K E27 E27 46 W 220…240 V 50000 h 5400 lm 125 W 360 ° No
HQL LED 5400 lm 46 W/2700 K E40 E40 46 W 220…240 V 50000 h 5400 lm 125 W 360 ° No
HQL LED 6000 lm 46 W/4000 K E27 E27 46 W 220…240 V 50000 h 6000 lm 125 W 360 ° No
HQL LED 6000 lm 46 W/4000 K E40 E40 46 W 220…240 V 50000 h 6000 lm 125 W 360 ° No
HQL LED 11700 lm 95 W/2700 K E40 E40 95 W 220…240 V 50000 h 11700 lm 250 W 360 ° No
HQL LED 13000 lm 95 W/4000 K E40 E40 95 W 220…240 V 50000 h 13000 lm 250 W 360 ° No


HQL LED 11700 lm 95 W/2700 K E40

Product benefits
  • Saves up to 78 % energy when used as replacement for mercury vapor lamps (HQL)
  • Low maintenance costs thanks to long lifetime
  • Instant 100 % light, no warm-up time
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 95 W
Construction wattage 95.00 W
Nominal voltage 220…240 V
Operating mode AC, Conventional control gear (CCG)
Claimed equiv. conventional lamp power 250 W
Nominal current 425 mA
Type of current AC
Inrush current 8,6 A
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Max. lamp number on MCB B10 A 13
Max. lamp number on MCB B10 A - CCG without compensation 13
Max. lamp number on MCB B10 A - CCG with compensation 17
Max. lamp number on MCB B16 A 20
Max. lamp number on MCB B16 A - CCG without compensation 20
Max. lamp number on MCB B16 A - CCG with compensation 26
Total harmonic distortion 20 %
Power factor λ 0.90

Photometrical data

Luminous flux 11700 lm
Nominal useful luminous flux 90° 11700 lm
Luminous efficacy 123 lm/W
Lumen main.fact.at end of nom.life time 0.70
Light color (designation) Warm White
Color temperature 2700 K
Color rendering index Ra ≥80
Light color 827
Standard deviation of color matching ≤6 sdcm
Rated LLMF at 6,000 h 0.80

Light technical data

Beam angle 360 °
Warm-up time (60 %) ‹ 0.50 s
Starting time < 0.5 s

Dimensions & Weight

Overall length 270.00 mm
Diameter 110,0 mm
Maximum diameter 110 mm
Product weight 1400.00 g

Temperatures & operating conditions

Ambient temperature range -20…+50 °C
Maximum temperature at tc test point 94 °C

Lifespan

Number of switching cycles 100000
Lumen maintenance at end of service lifetime 0.70
Rated lamp survival factor at 6,000 h ≥ 0.90

Additional product data

Base (standard designation) E40
Mercury content 0.0 mg
Mercury-free Yes
Design / version Clear

Capabilities

Dimmable No

Certificates & Standards

Energy efficiency class E 1)
Energy consumption 95.00 kWh/1000h
Type of protection IP65
Standards CE
Photobiological safety group acc. to EN62778 RG1

1) Energy efficiency class (EEC) on a scale of A++ (highest efficiency) to E (lowest efficiency)

Country-specific categorizations

Order reference HQLLED11700 95W

LOGISTICAL DATA

Temperature range at storage -20…+80 °C

Energy labelling regulation data acc EU 2019/2015

Light source cap-type (or other electric interface) E40
Length 270.00 mm
Height 110,0 mm
Width 110,0 mm

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Additional info can be provided per individual request
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Saves up to 78 % energy when used as replacement for mercury vapor lamps (HQL)
  • Low maintenance costs thanks to long lifetime
  • Instant 100 % light, no warm-up time
Areas of application
  • Streets
  • Area lighting
  • Pedestrian zones
  • Parks
  • Outdoor applications only in suitable luminaires
Product features
  • Replacement for HQL: Suitable for operation with conventional control gear (CCG) for HQL or 230 V mains
  • Replacement for other HID: Suitable for operation with line voltage without control gear
  • Power factor: 0.9
  • Type of protection: IP65
  • High surge protection: up to 6 kV (L-N)
Safety advice
  • The bulb may be larger and heavier than the replaced bulb. Before installation it must be checked, if the luminaire and especially the holder is capable of carrying the weight of the lamp. If possible, please install the safety rope included in the package containing the lamp for the types 90 W lamps.
  • Not suitable for operation with ignitors.
  • Operation on the capacitor can lead to a reduction of the power factor of the system.
  • When installed horizontally, the tc point of the lamp is located on the top side of the lamp.
  • Use in tight luminaires and luminaires with tight reflectors not recommended.
  • All electrical connections must be made by a qualified person.
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075125001 Folding box
1		 117 mm x 117 mm x 301 mm 1518.00 g 4.12 dm³
4058075125018 Shipping box
6		 360 mm x 245 mm x 326 mm 9524.00 g 28.75 dm³
User instruction / safety instructions
HQL LED PRO PDF (3.08 MB)
Declarations of conformity
CE Declaration of Conf ormity HQL PDF (607.32 KB)

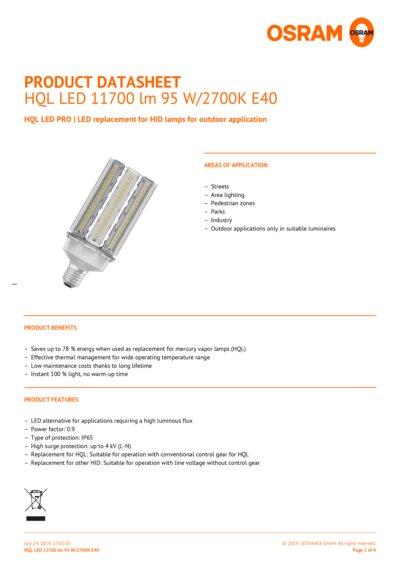

PRODUCT DATASHEET
HQL LED 11700 lm 95 W 2700K E40 DATASHEET PDF (398.18 KB)
Product image: white background, diagonal with OSRAM logo
HQL LED 13000 95W E40 JPG (2.35 MB)

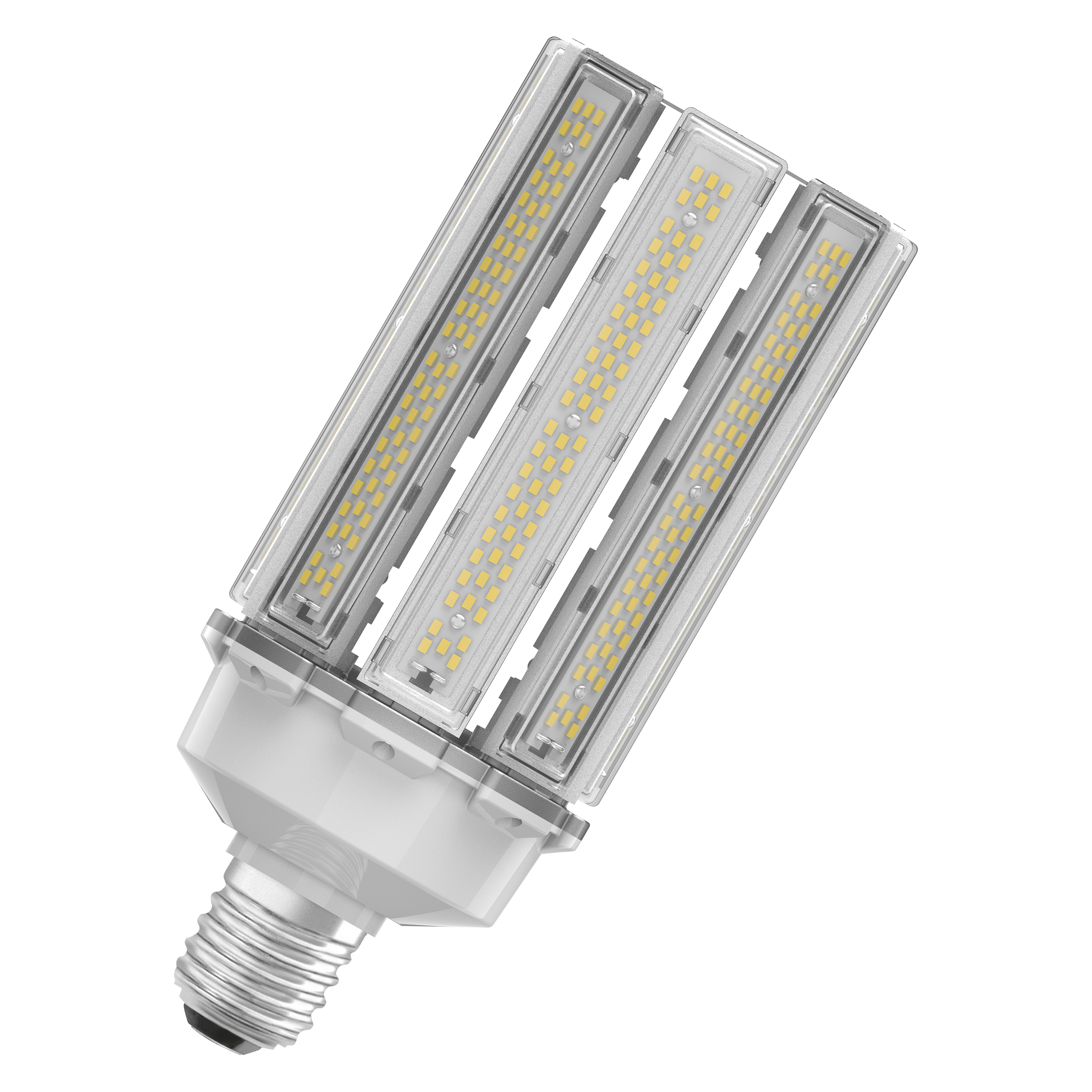

Product image: white background, diagonal
HQL LED 13000 95W E40 JPG (2.36 MB)

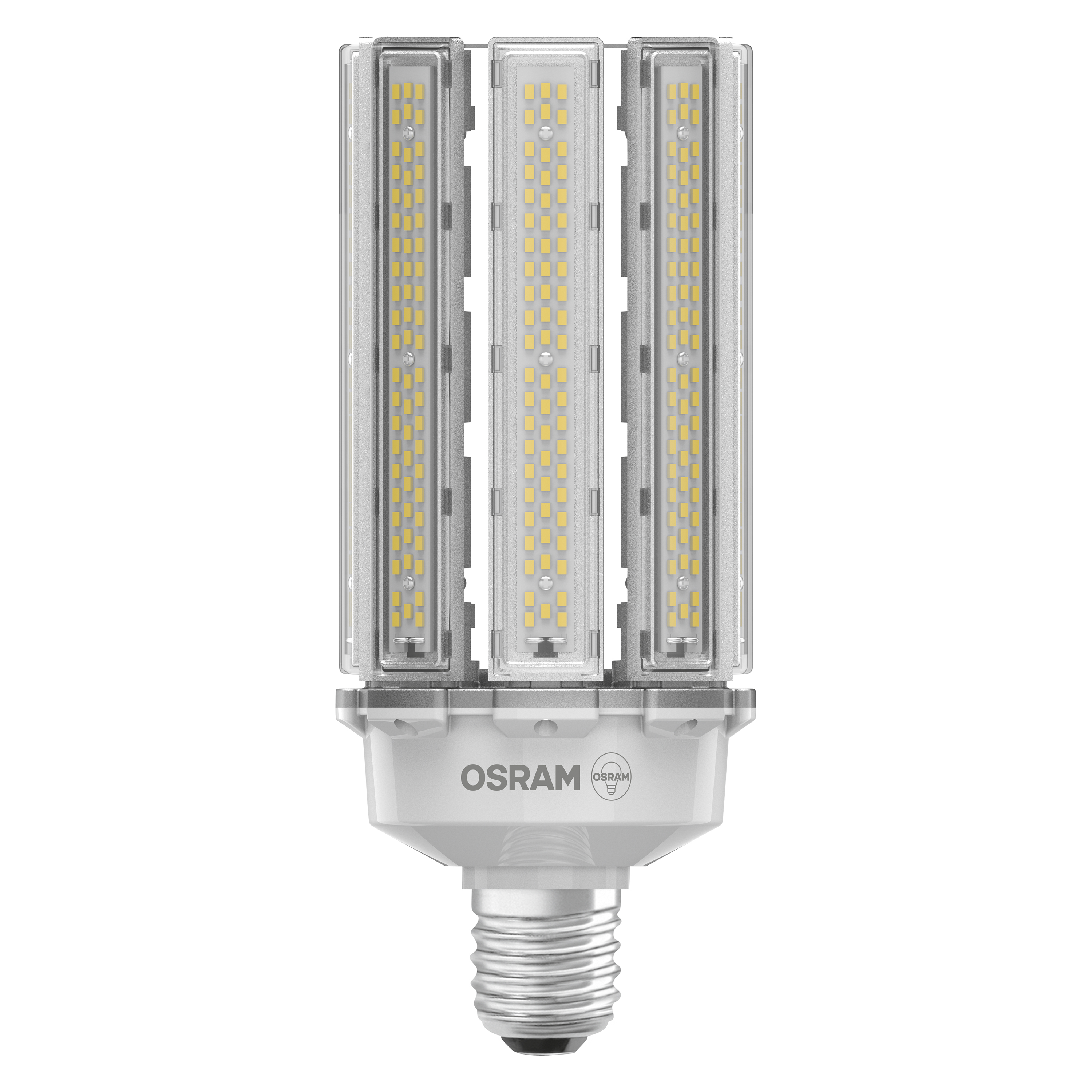

Product image: white background, upright, OSRAM logo
HQL LED 13000 95W E40 JPG (2.05 MB)

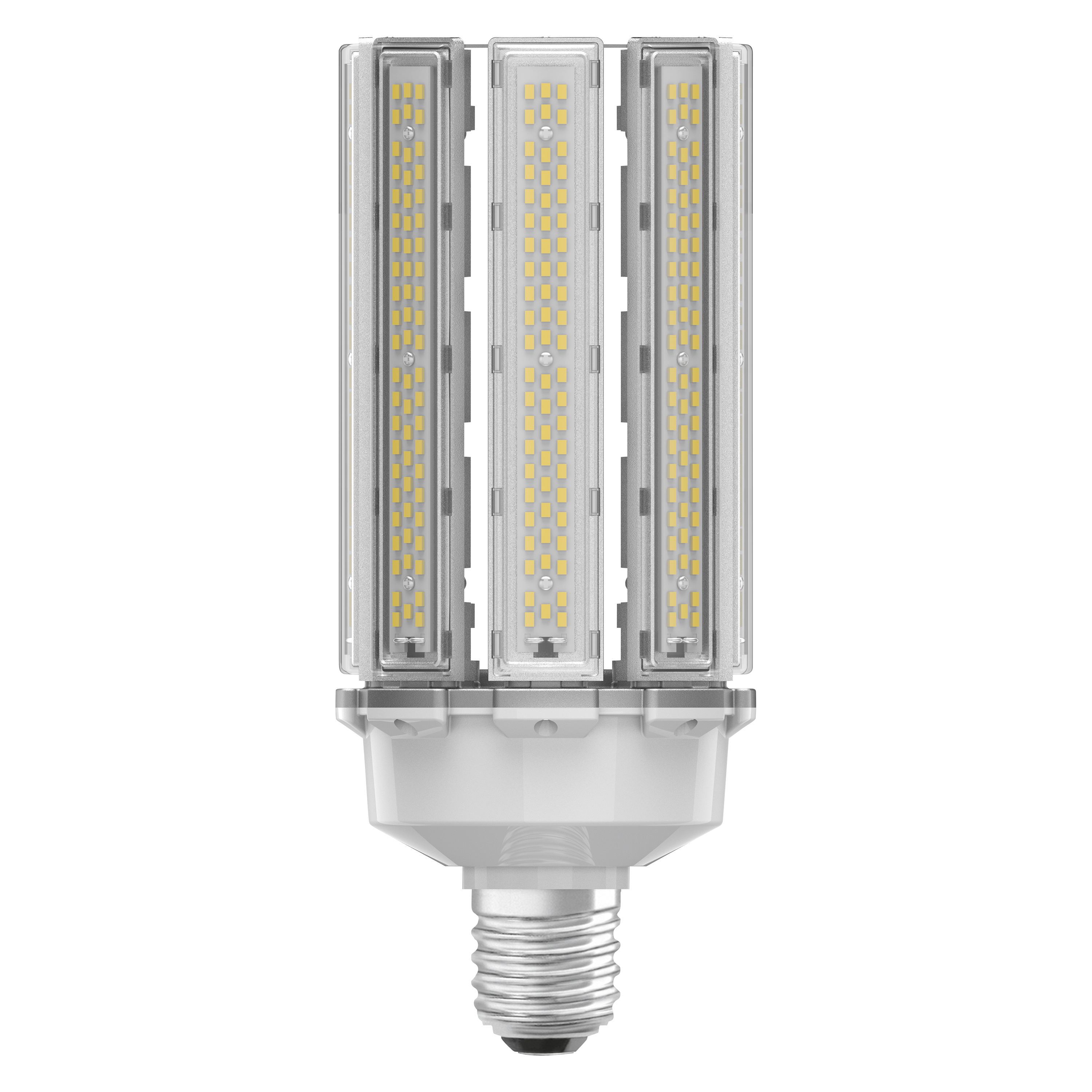

Product image: white background, upright
HQL LED 13000 95W E40 JPG (2.02 MB)
Product line drawing with letters
HQL LED 13000 95W E40 SVG (88.12 KB)
Product line drawing with numbers
HQL LED 13000 95W E40 SVG (92.65 KB)
Product line drawing, front, no dimensions
HQL LED 13000 95W E40 SVG (84.77 KB)
Logos and pictos
E left SVG (1.9 KB)
Logos and pictos
E left BW SVG (1.07 KB)
Logos and pictos
E right SVG (1.86 KB)
Logos and pictos
E right BW SVG (1.07 KB)
IES file (IES)
AC21057_HQLLED11700 95 W 230VPROE40 IES (7.04 KB)
LDT file (Eulumdat)
AC21057_HQLLED11700 95 W 230VPROE40 LDT (5.57 KB)
Light distribution curve type polar
HQLLED11700 95W 827 23 0V PRO E40FS1OSRAM SVG (488.34 KB)
Application pictures

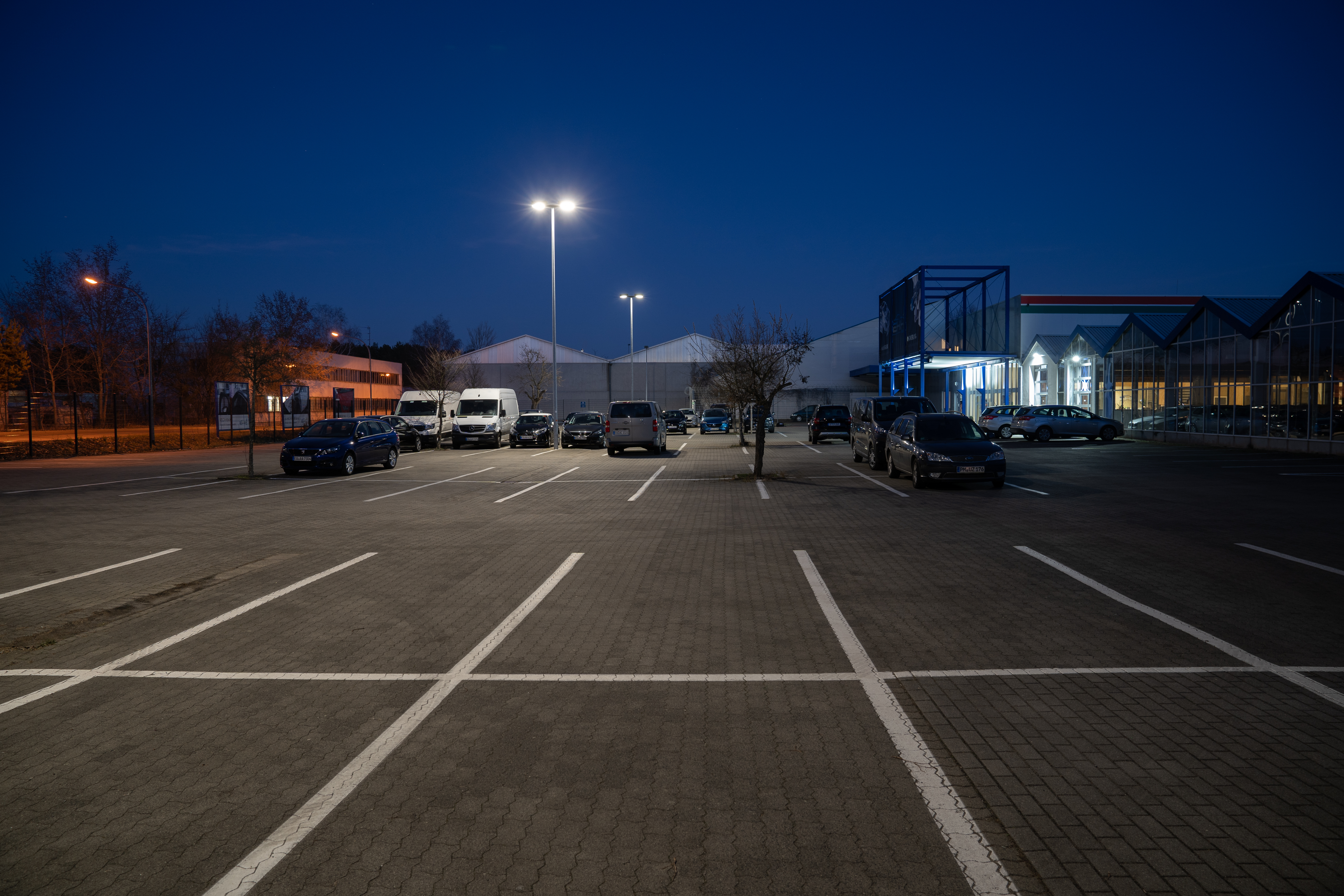

2019 EHH car center ca se study No:28 from 29 JPG (13.49 MB)
Application pictures

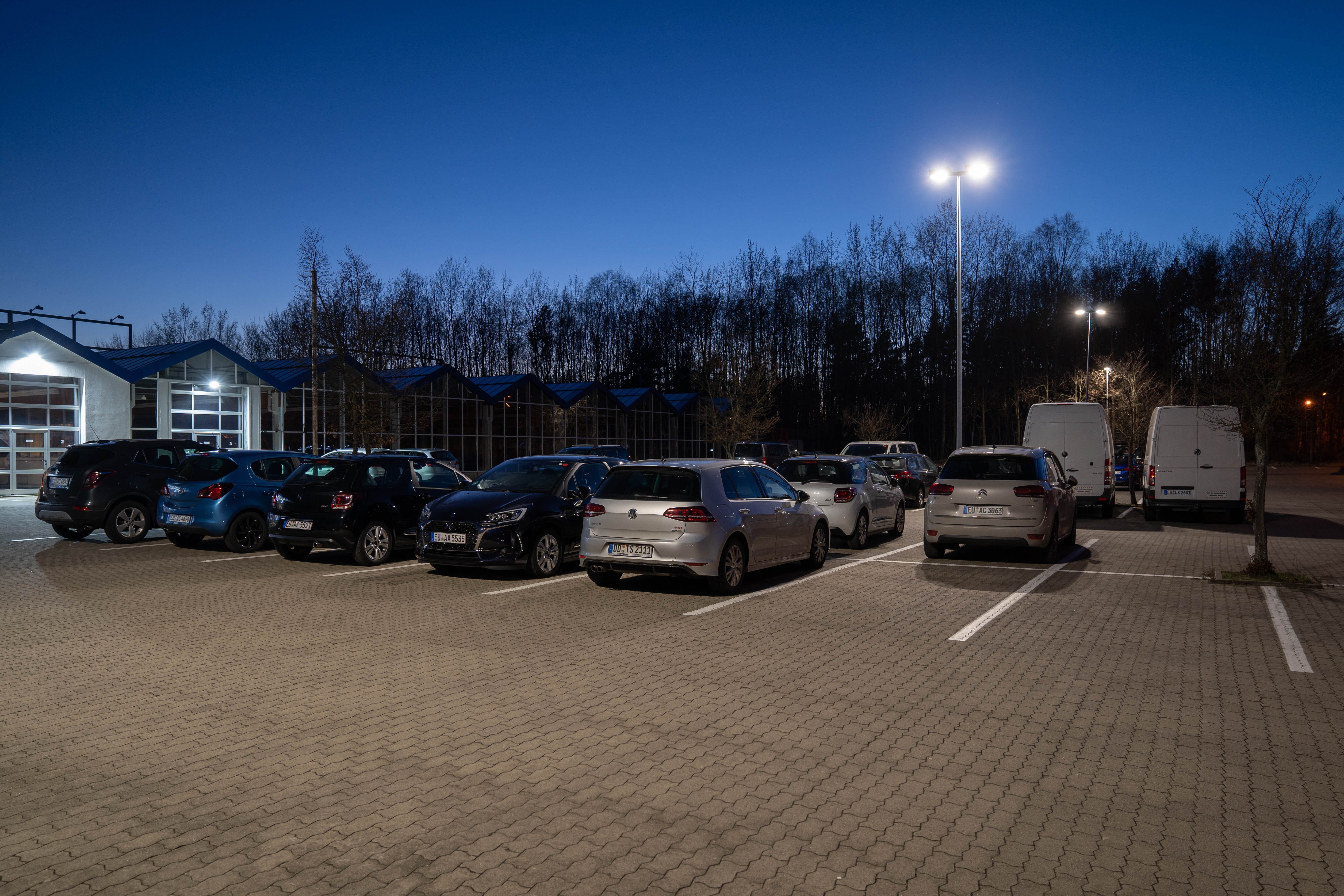

2019 EHH car center ca se study No:29 from 29 JPG (14.61 MB)
