LUMILUX SPLIT control T8

Choose your product version

Phase out

18 W/840 SPS

Phase out

58 W/840 SPS

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Dimmable
L 18 W/840 SPS G13 18 W 57 V 20000 h 1300 lm Yes
L 58 W/840 SPS G13 58 W 110 V 20000 h 5140 lm Yes
Phase out


L 18 W/840 SPS

Product benefits
  • Helps to prevent contamination in sensitive production areas (e.g. in the food industry)
  • Optimal shatter protection thanks to special FEP coating
  • Closed end caps allow additional protection beyond requirements of IEC 61549
  • The life of the sleeve is the same as the average lamp life
  • Support the implementation of the HACCP concepts from production through to presentation
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 18 W
Construction wattage 18.80 W
Nominal voltage 57 V
Nominal current 0.37 A

Photometrical data

Luminous flux 1300 lm
Luminous efficacy 69 lm/W
Light color (designation) Cool White
Color temperature 4000 K
Color rendering index Ra ≥80
Light color 840
Rated LLMF at 2,000 h 0.96
Rated LLMF at 4,000 h 0.94
Rated LLMF at 6,000 h 0.93
Rated LLMF at 8,000 h 0.91
Rated LLMF at 12,000 h 0.91
Rated LLMF at 16,000 h 0.90
Rated LLMF at 20,000 h 0.89

Dimensions & Weight

Overall length 604.00 mm
Length with base excl. base pins/connection 590,00 mm
Diameter 26.00 mm
Tube diameter 26 mm
Product weight 86.00 g

Lifespan

Service life 18000 h 1)
Rated lamp survival factor at 2,000 h 0.99
Rated lamp survival factor at 4,000 h 0.99
Rated lamp survival factor at 6,000 h 0.99
Rated lamp survival factor at 8,000 h 0.99
Rated lamp survival factor at 12,000 h 0.99
Rated lamp survival factor at 16,000 0.90
Rated lamp survival factor at 20,000 h 0.50
Lifespan B50 20000 h

1) With preheat ECG

Additional product data

Base (standard designation) G13
Mercury content 3.0 mg

Capabilities

Dimmable Yes

Certificates & Standards

Energy efficiency class G
Energy consumption 19.00 kWh/1000h

Country-specific categorizations

Order reference L 18W/840 SPS

Energy labelling regulation data acc EU 2019/2015

Lighting technology used OTHER_FL
Non-directional or directional NDLS
Mains or non-mains NMLS
Light source cap-type (or other electric interface) G13
Connected light source (CLS) No
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type SINGLE_VALUE
Claim of equivalent power No
Length 604.00 mm
Height 26.00 mm
Width 26.00 mm
Chromaticity coordinate x 0,380
Chromaticity coordinate y 0,380
Beam angle correspondence SPHERE_360
EPREL ID 546381
Model number AC34156

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Additional info can be provided per individual request
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Helps to prevent contamination in sensitive production areas (e.g. in the food industry)
  • Optimal shatter protection thanks to special FEP coating
  • Closed end caps allow additional protection beyond requirements of IEC 61549
  • The life of the sleeve is the same as the average lamp life
  • Support the implementation of the HACCP concepts from production through to presentation
Areas of application
  • Industry
  • Shops
  • Supermarkets and department stores
  • Street lighting
  • Outdoor applications only in suitable luminaires
Product features
  • Good color rendering index
  • Very good lumen maintenance: 90 % throughout the service lifetime of the lamp
Equipment / Accessories
  • Suitable for use in open and enclosed luminaires
Safety advice
  • Lamps with plastic sleeves, ambient temperature range: -10…+80 °C
  • Lamps with plastic sleeves, maximum shelf life: 5 years at 0…30 °C
  • Lamps with plastic sleeves must be replaced after average lifetime (B50) has been reached
  • In case of lamp breakage: www.ledvance.com/brokenlamp
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4008321232885 Unpacked
1		 604 mm x 26 mm x 26 mm 118.00 g 0.41 dm³
4008321232892 Shipping box
12		 638 mm x 191 mm x 77 mm 1761.00 g 9.38 dm³

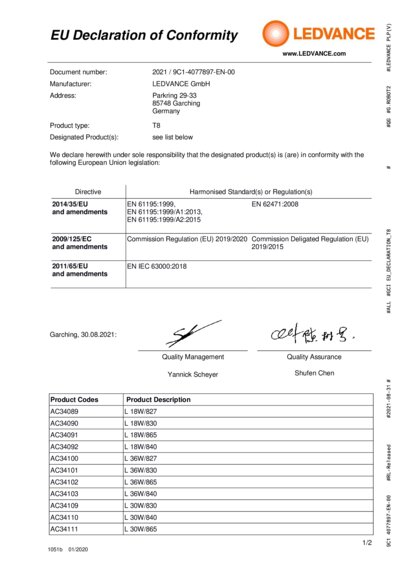

Declarations of conformity
EC Declaration of Conf ormity - 2021 9C1-4077 897-EN-00 - T8 PDF (40.22 KB)
Certificates
EAC RU C-DE HA10.B.006 71 16 08 2018 15 07 20 23 Expert Sertifikaciy a FL PDF (1.43 MB)
Product image: white background, diagonal
313063_LUMILUX T8 XT / LUMILUX T8 XXT TIF (2.8 MB)
Product line drawing with letters
324360_FLUORESCENT LAM P (BASIC T8/LUMILUX T8 ) G13 BASE SVG (5.67 KB)

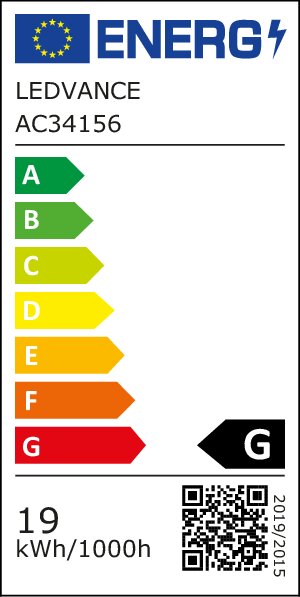

Energy label
EL-4008321232885-AC341 56 PDF (21.65 KB)
Logos and pictos
G left SVG (2.41 KB)
Logos and pictos
G left BW SVG (1.07 KB)
Logos and pictos
G right SVG (2.4 KB)
Logos and pictos
G right BW SVG (1.06 KB)
Spectral power distribution
349615_FL_840 PNG (92.9 KB)
EAN SEG number STK number EFO number ELDAS number
4008321232885 8329432 4930184 3860129 946811450
