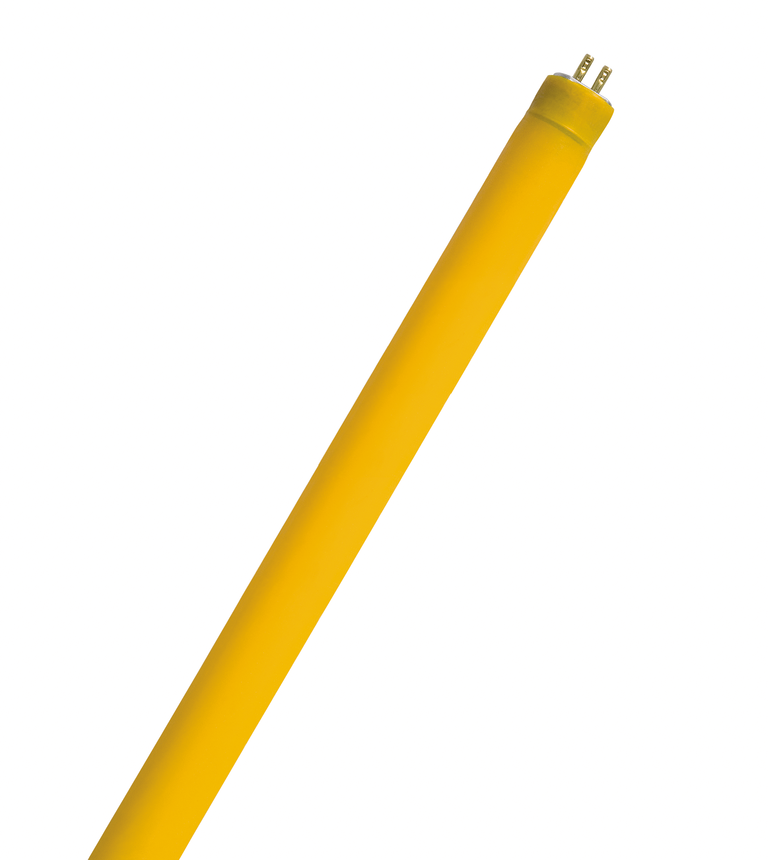

HE CHIP CONTR 28 W/62

Product benefits

• Excellent UV filter
• The life of the sleeve is the same as the average lamp life

Areas of application

• Microchip fabrication plants
• Where UV and blue components have to be reduced to the absolute minimum
• Industry
• Print shops

Product features

• Excellent filter at 500 nm
• Long average lifetime: up to 24,000 h (with QUICKTRONIC® ECG)
• Dimmable

Equipment / Accessories

• Suitable for operation on electronic and conventional control gears

Safety advice

• Lamps with plastic sleeves, ambient temperature range: -10…+80 °C
• Lamps with plastic sleeves, maximum shelf life: 5 years at 0…30 °C
• Lamps with plastic sleeves must be replaced after average lifetime (B50) has been reached
• In case of lamp breakage: www.ledvance.com/brokenlamp
• Under standard conditions acc. IEC (free burning, 25 - 40°C ambient temperature) a typical increase of the emitted radiation power in the wavelength range < 500 nm up to 6 mW/klm per 10,000 hours of operation was determined. This corresponds to approx. 0.2% of the total emitted radiation power. This increase depends on the operation conditions. For example for a T5 HO lamp at 80°C ambient temperature an increase of the emitted radiation power in the wavelength range < 500 nm of up to 50 mW/klm per 10,000 hours of operation can be observed. This corresponds to approx. 2% of the total emitted radiation power. For applications in photo sensitive areas, routine maintenance is necessary. This must include verification of the amount of short wavelength light emitted, and, if required, lamp replacement.

References / Links

• For more information on the system guarantee and the terms and conditions of the guarantee visit www.ledvance.com/system-guarantee
