Phase out


L 8 W/765

Product benefits
  • Ideal for cost-effective creative illumination and decoration
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 8 W
Construction wattage 7.50 W
Nominal voltage 56 V
Nominal current 0.15 A

Photometrical data

Luminous flux 330 lm
Luminous efficacy 44 lm/W
Light color (designation) Cool Daylight
Color temperature 6500 K
Color rendering index Ra 70
Light color 765
Rated LLMF at 2,000 h 0.75
Rated LLMF at 4,000 h 0.69
Rated LLMF at 6,000 h 0.66
Rated LLMF at 8,000 h 0.64

Dimensions & Weight

Overall length 302.50 mm
Length with base excl. base pins/connection 288,00 mm
Diameter 16.00 mm
Tube diameter 16 mm
Product weight 25.71 g

Lifespan

Service life 4500 h
Rated lamp survival factor at 2,000 h 0.99
Rated lamp survival factor at 4,000 h 0.99
Rated lamp survival factor at 6,000 h 0.95
Rated lamp survival factor at 8,000 h 0.81
Lifespan B50 10000 h

Additional product data

Base (standard designation) G5
Mercury content 2.9 mg

Capabilities

Dimmable Yes

Certificates & Standards

Energy efficiency class G
Energy consumption 8.00 kWh/1000h

Country-specific categorizations

ILCOS FD-8/765-E-G5-16/288
Order reference L 8W/765

Energy labelling regulation data acc EU 2019/2015

Lighting technology used OTHER_FL
Non-directional or directional NDLS
Mains or non-mains NMLS
Light source cap-type (or other electric interface) G5
Connected light source (CLS) No
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type SINGLE_VALUE
Claim of equivalent power No
Length 302.50 mm
Height 16.00 mm
Width 16.00 mm
Chromaticity coordinate x 0,313
Chromaticity coordinate y 0,337
Beam angle correspondence SPHERE_360
EPREL ID 546309
Model number AC34076

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals 0 mg
Quantity of rare earths 0 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Additional info can be provided per individual request
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Ideal for cost-effective creative illumination and decoration
Areas of application
  • Shops
  • Supermarkets and department stores
  • Public buildings
Safety advice
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4050300035475 Sleeve
1		 19 mm x 19 mm x 304 mm 36.00 g 0.11 dm³
4050300035482 Shipping box
25		 316 mm x 103 mm x 109 mm 973.10 g 3.55 dm³
Declarations of conformity
EC Declaration of Conf ormity - 2021 9C1-4077 894-EN-00 - T5 SHORT PDF (39.89 KB)
Certificates
EAC RU C-DE HA10.B.006 71 16 08 2018 15 07 20 23 Expert Sertifikaciy a FL PDF (1.43 MB)
Certificates
EAC N RU D-DE.MU62.B.0 0801_20 02.03.2020-01. 03.2025 Prommash Test - FL PDF (1.2 MB)
Product image: white background, diagonal
324629_TUBULAR FLUORES CENT LAMPS L4 ... 13W TIF (1.12 MB)
Product line drawing with letters
2804_FLUORESCENT LAMP T5, G5 BASE Base: G5 SVG (6.15 KB)
Product line drawing, front, no dimensions
325856_FLUORESCENT LAM P (BASIC T5/LUMILUX T5 ) G5 BASE SVG (2.79 KB)
Energy label
EL-4050300035475-AC340 76 PDF (21.94 KB)
Logos and pictos
G left SVG (2.41 KB)
Logos and pictos
G left BW SVG (1.07 KB)
Logos and pictos
G right SVG (2.4 KB)
Logos and pictos
G right BW SVG (1.06 KB)

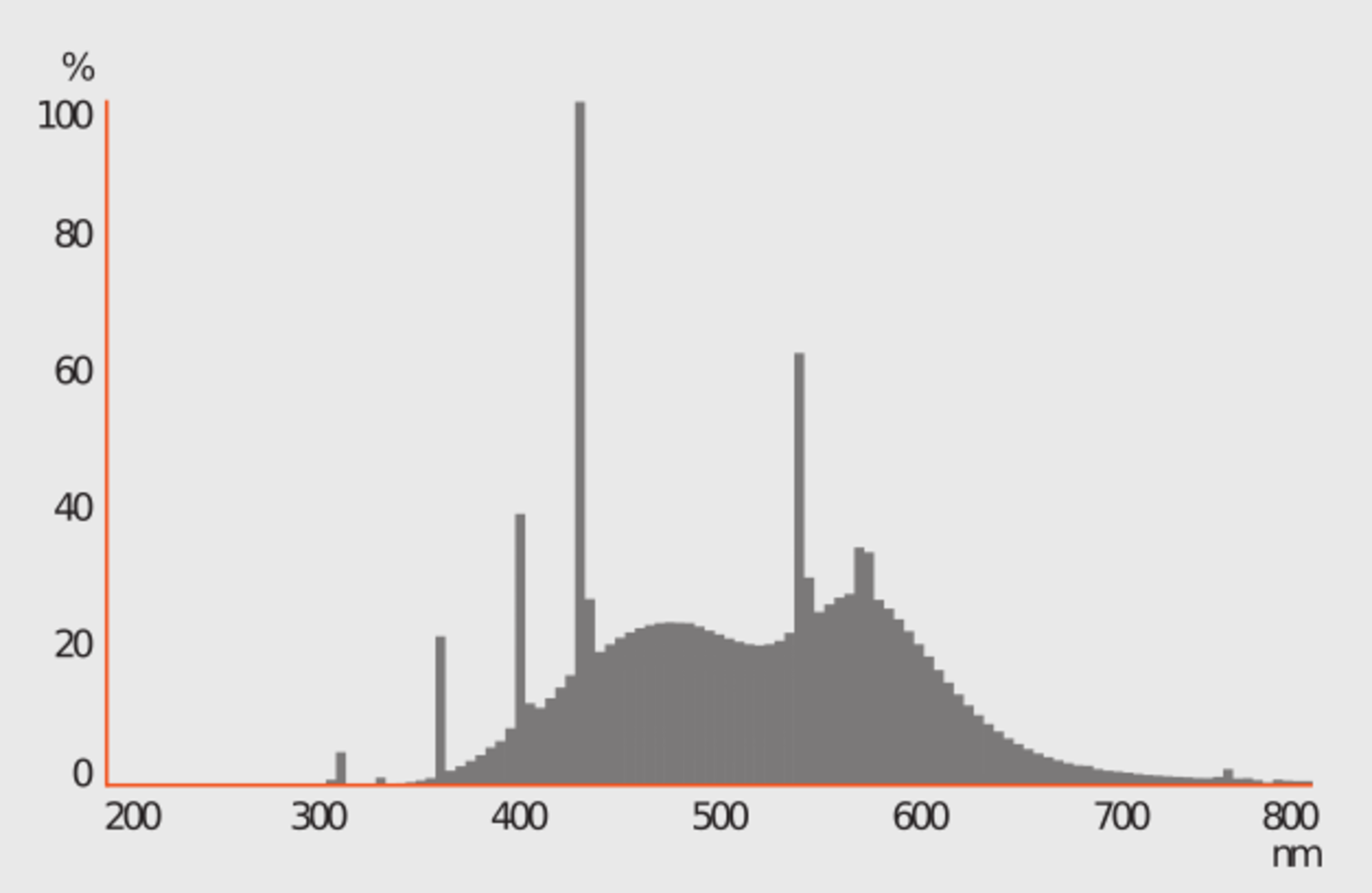

Spectral power distribution
349626_FL_765 PNG (95.34 KB)
EAN STK number
4050300035475 4931712
